Starter Motor
>>
Exploded View
Exploded View

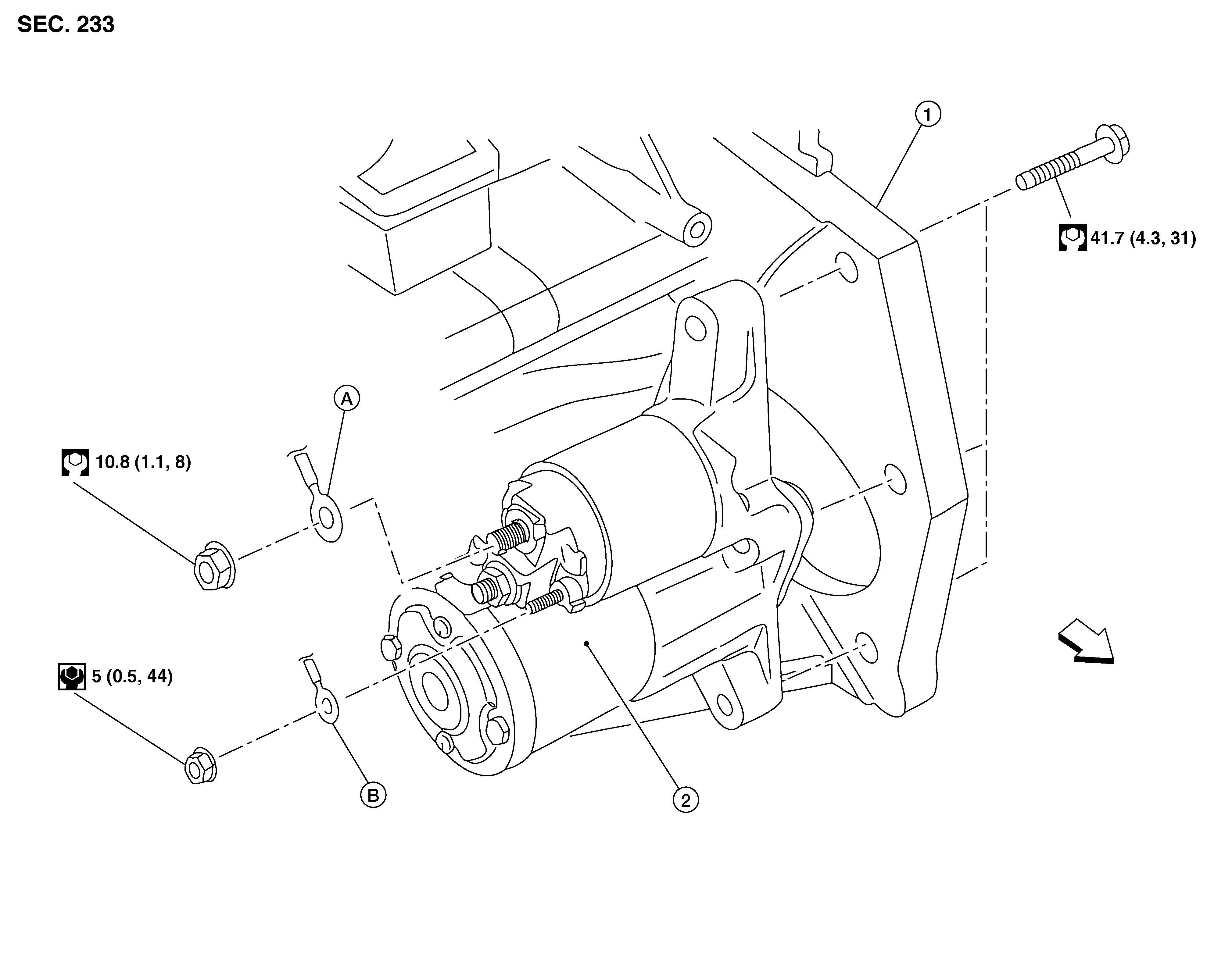

Fig 1: Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cylinder block
2.
Starter motor
A.
"B" terminal harness
B.
"S" terminal harness
Front
Courtesy of NISSAN NORTH AMERICA, INC.
