Versa S, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Removal And Installation
>>
Horn
>>

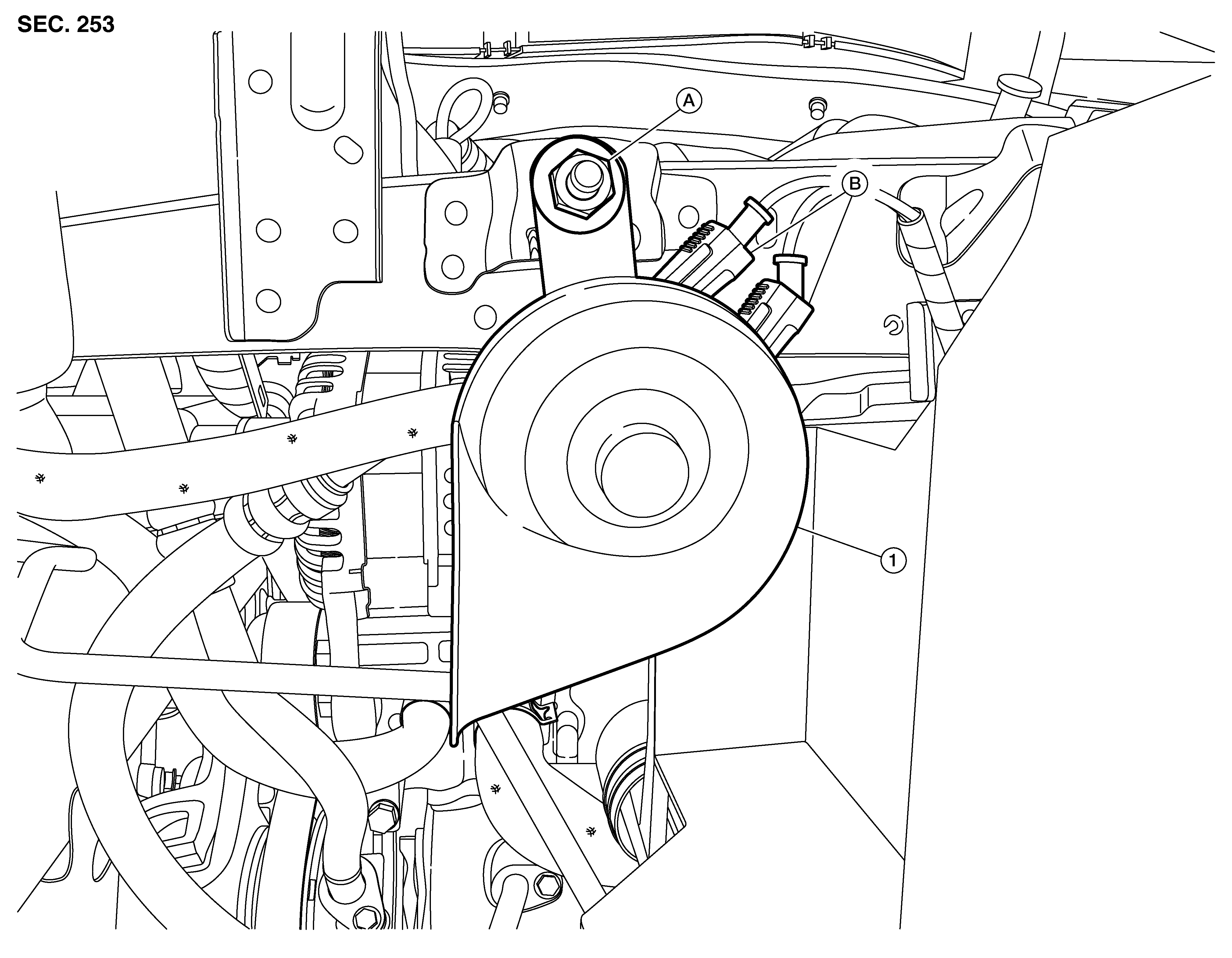

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn
A.
Horn nut
B.
Horn harness connector
Courtesy of NISSAN NORTH AMERICA, INC.
