Exploded View

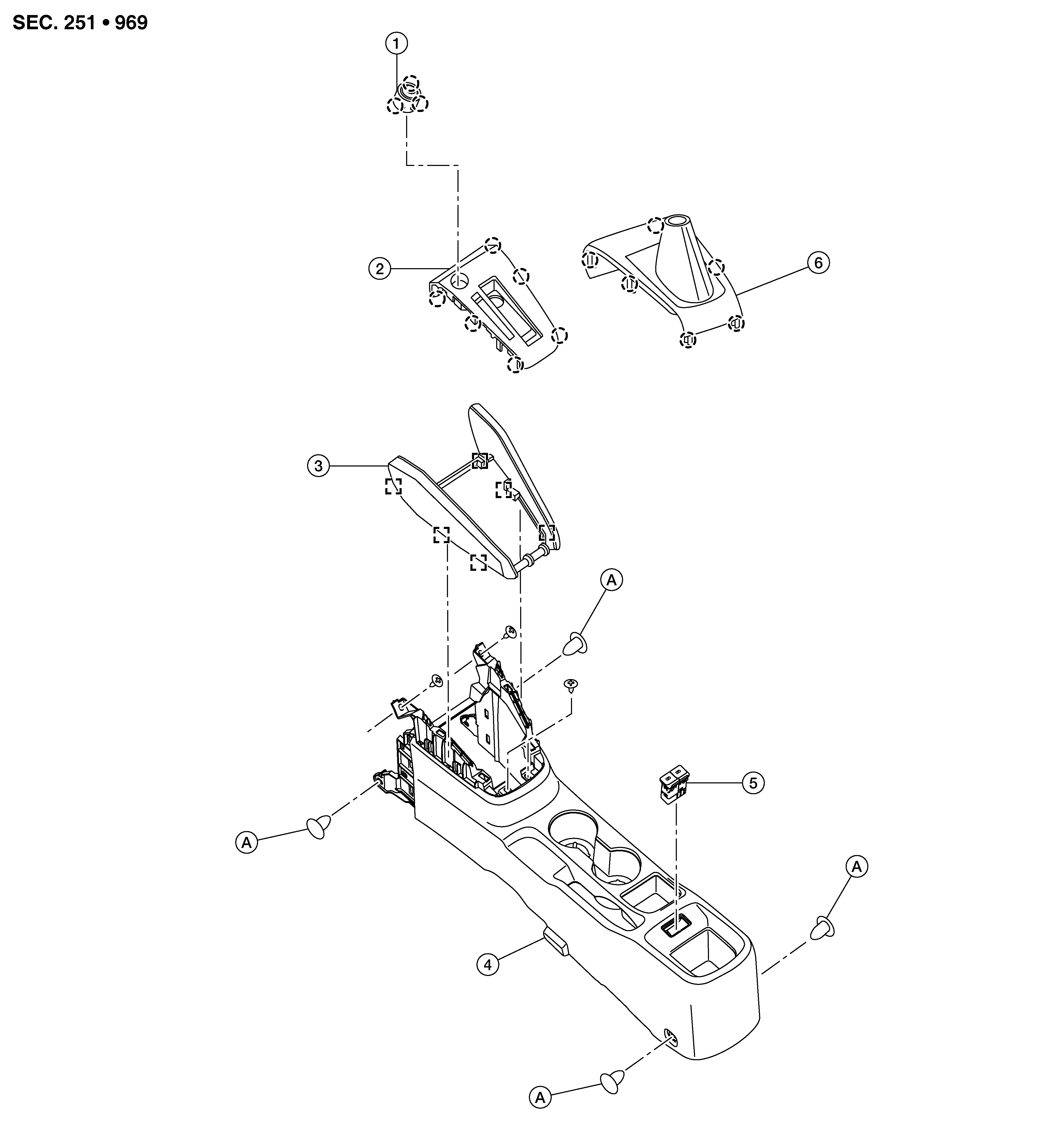

WITHOUT WIRELESS CHARGER
| 1. | Push-button ignition switch | 2. | Shift selector finisher (with CVT transmission) | 3. | Console upper finisher |
| 4. | Center console | 5. | Front USB charge port | 6. | Shift selector finisher (with Manual transmission) |
| A. | Clip | Pawl | Metal clip |

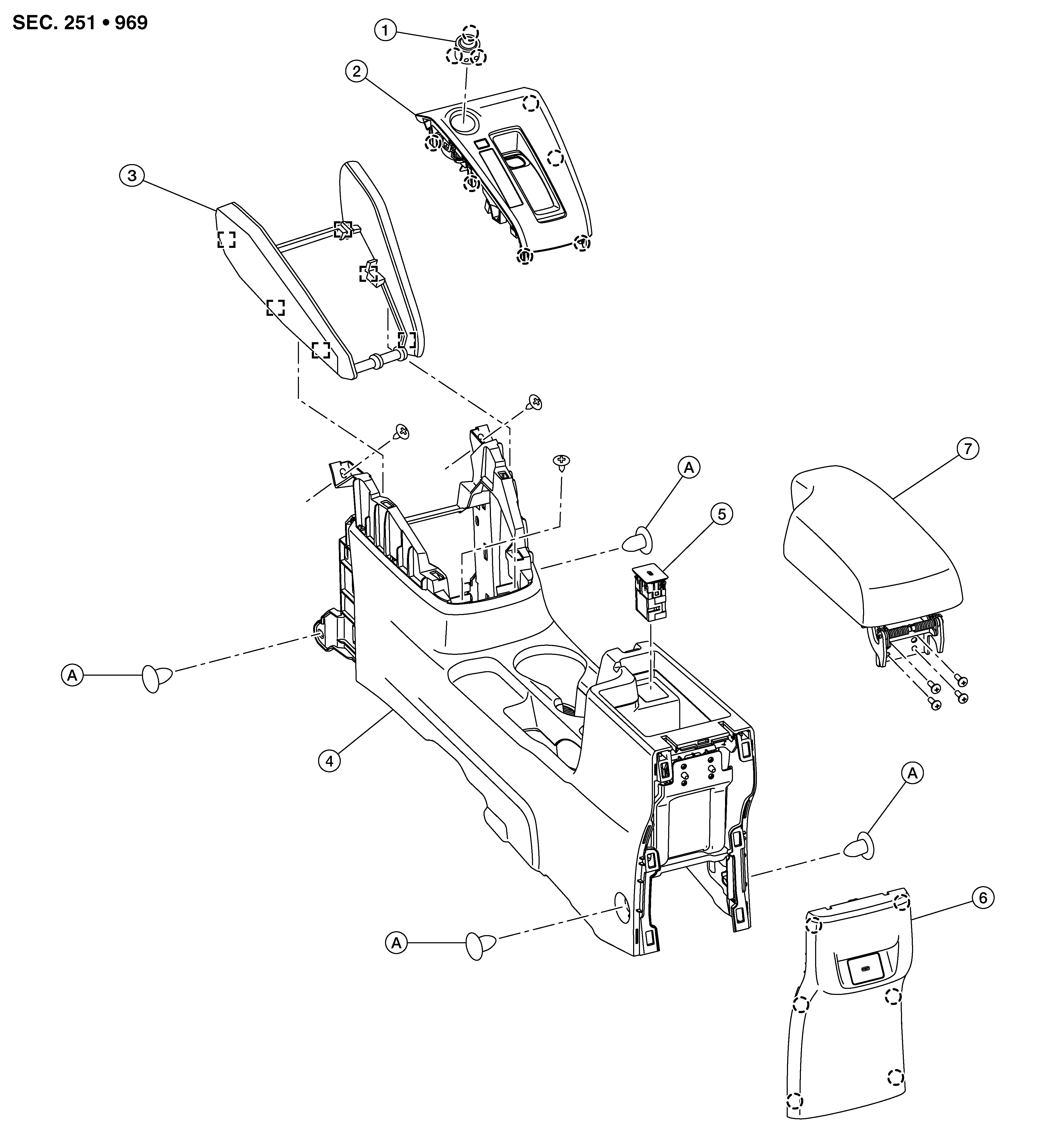

WITH WIRELESS CHARGER
| 1. | Push-button ignition switch | 2. | Shift selector finisher (with CVT transmission) | 3. | Console upper finisher |
| 4. | Center console | 5. | Front USB charge port | 6. | Center console rear finisher |
| 7. | Center console lid | A. | Clip | Pawl | |
| Metal clip | |||||
