Exploded View

WITHOUT CONVENIENCE PACKAGE

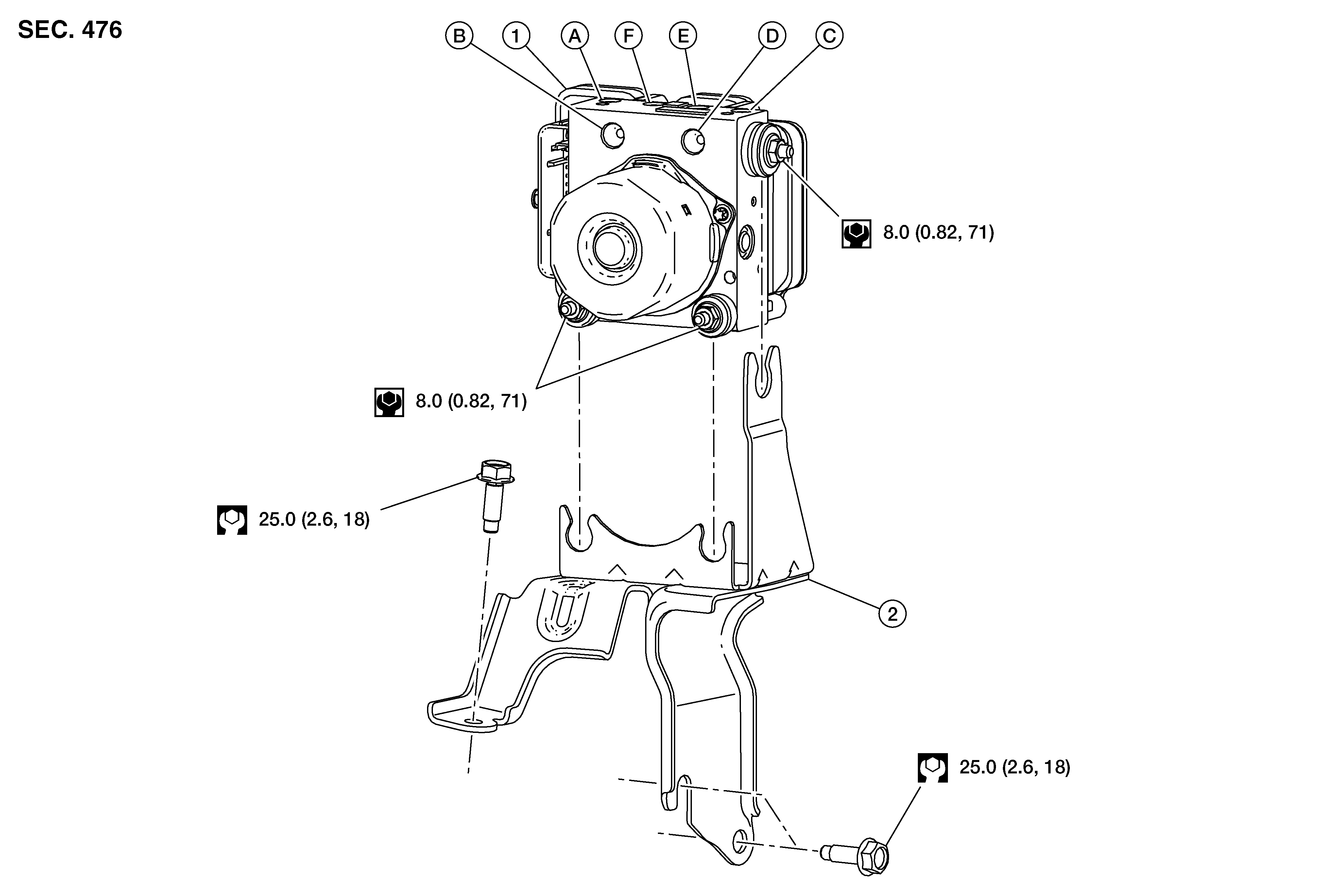

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications - Without Convenience Package

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Bracket	A.	To rear brake wheel cylinder (RH). Refer to Exploded View .
B.	From master cylinder secondary side. Refer to Exploded View .	C.	To rear brake wheel cylinder (LH). Refer to Exploded View .	D.	From master cylinder primary side. Refer to Exploded View .
E.	To front brake caliper (RH). Refer to Exploded View .	F.	To front brake caliper (LH). Refer to Exploded View .

WITH CONVENIENCE PACKAGE

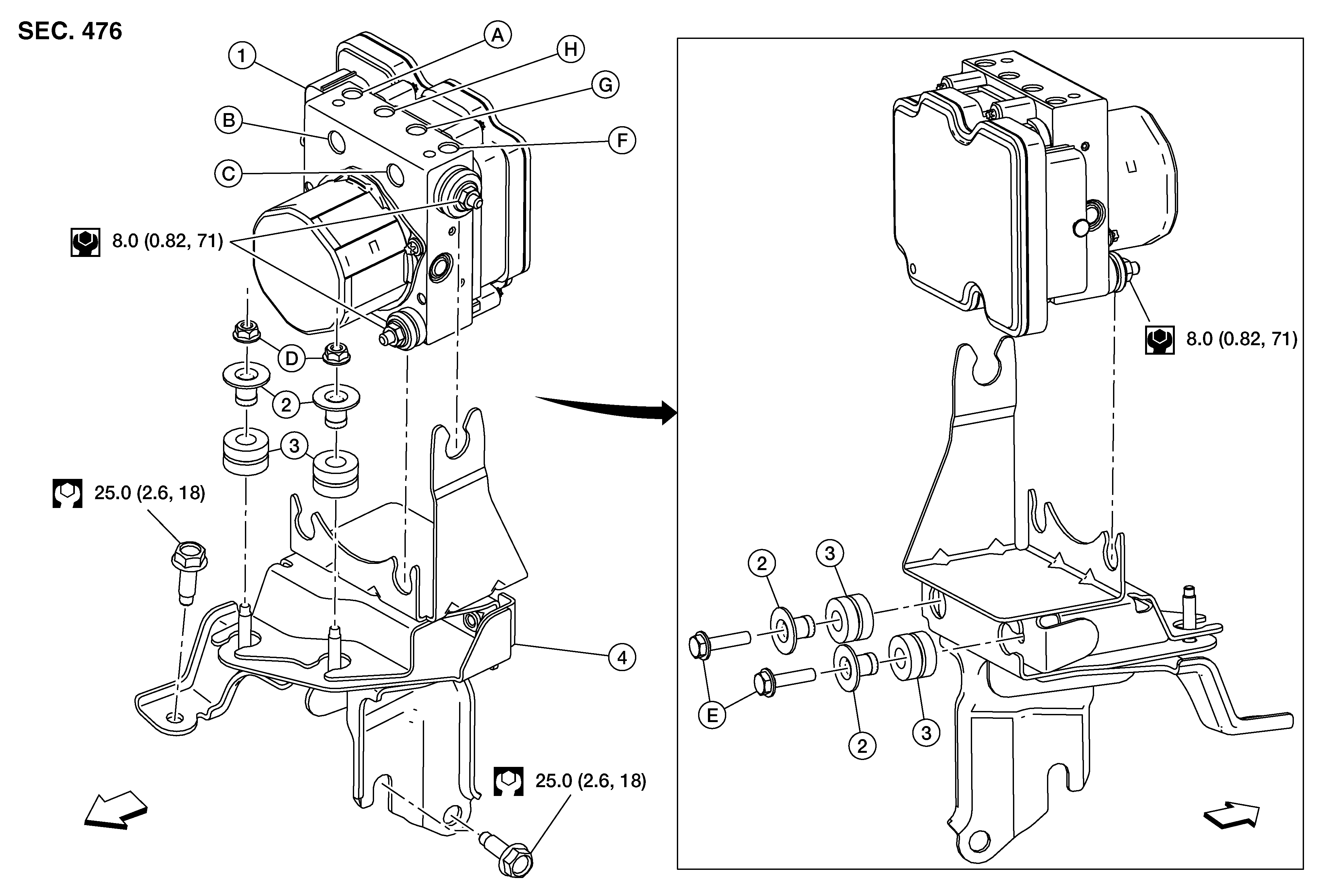

Fig 2: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications - With Convenience Package

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Insulator collar	3.	Insulator
4.	Bracket	A.	To rear brake wheel cylinder (RH). Refer to Exploded View .	B.	From master cylinder secondary side. Refer to Exploded View .
C.	From master cylinder primary side. Refer to Exploded View .	D.	Insulator nut	E.	Insulator bolt
F.	To rear brake wheel cylinder (LH). Refer to Exploded View .	G.	To front brake caliper (RH). Refer to Exploded View .	H.	To front brake caliper (LH). Refer to Exploded View .
	Front
