Removal and Installation

REMOVAL

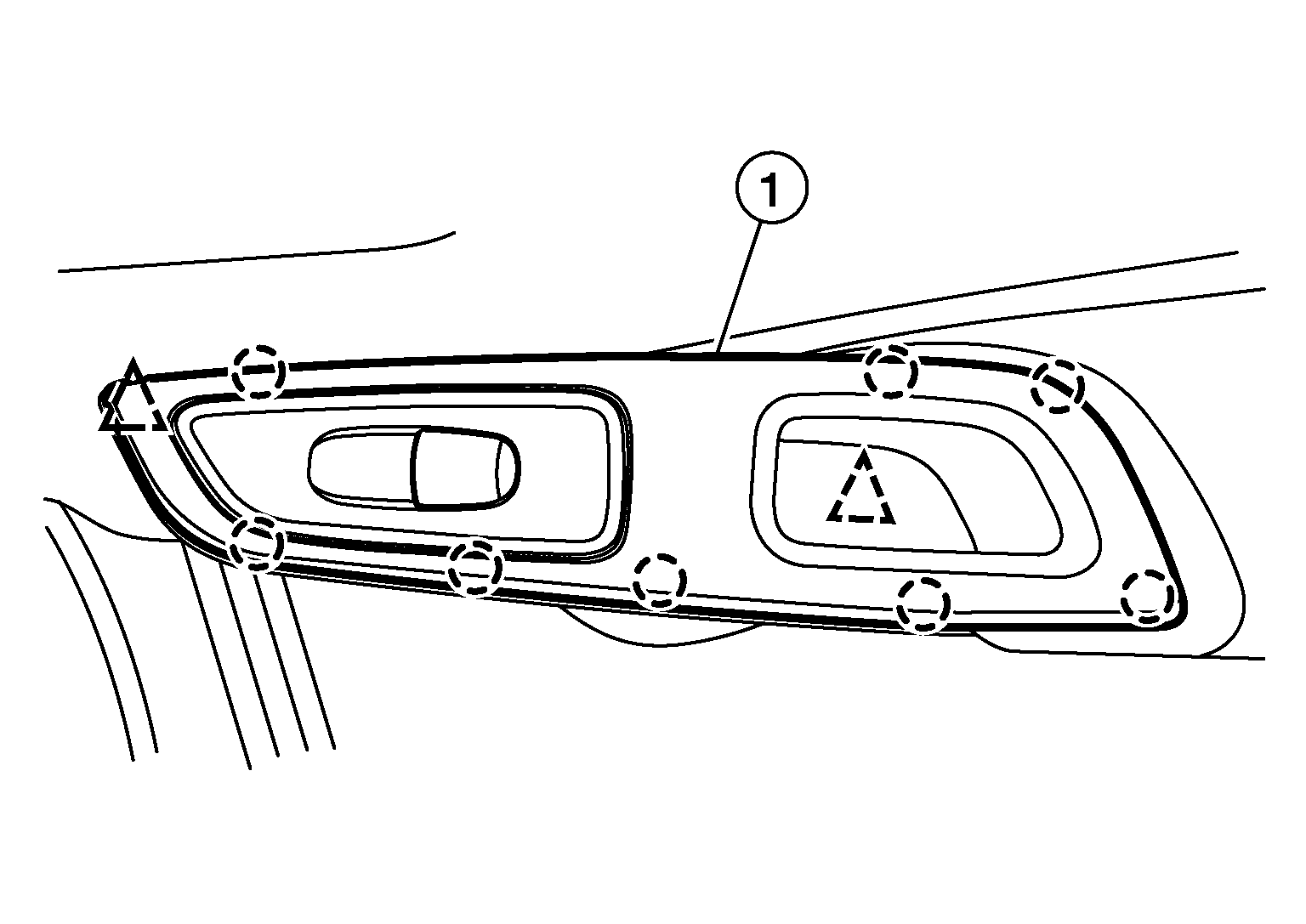

1. Using a suitable tool, release pawls and clips then remove the rear power window switch finisher (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: LH shown; RH similar

   	: Pawl
   	: Clip

2. Disconnect harness connector from rear power window switch.
3. Release pawls using suitable tool, then remove rear power window switch (1) from rear power window switch finisher.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: LH shown; RH similar

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
