Nissan-Datsun
>>
2024
>>
Versa S, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
ADAS Control Unit
>>
System Description
>>
System
>>

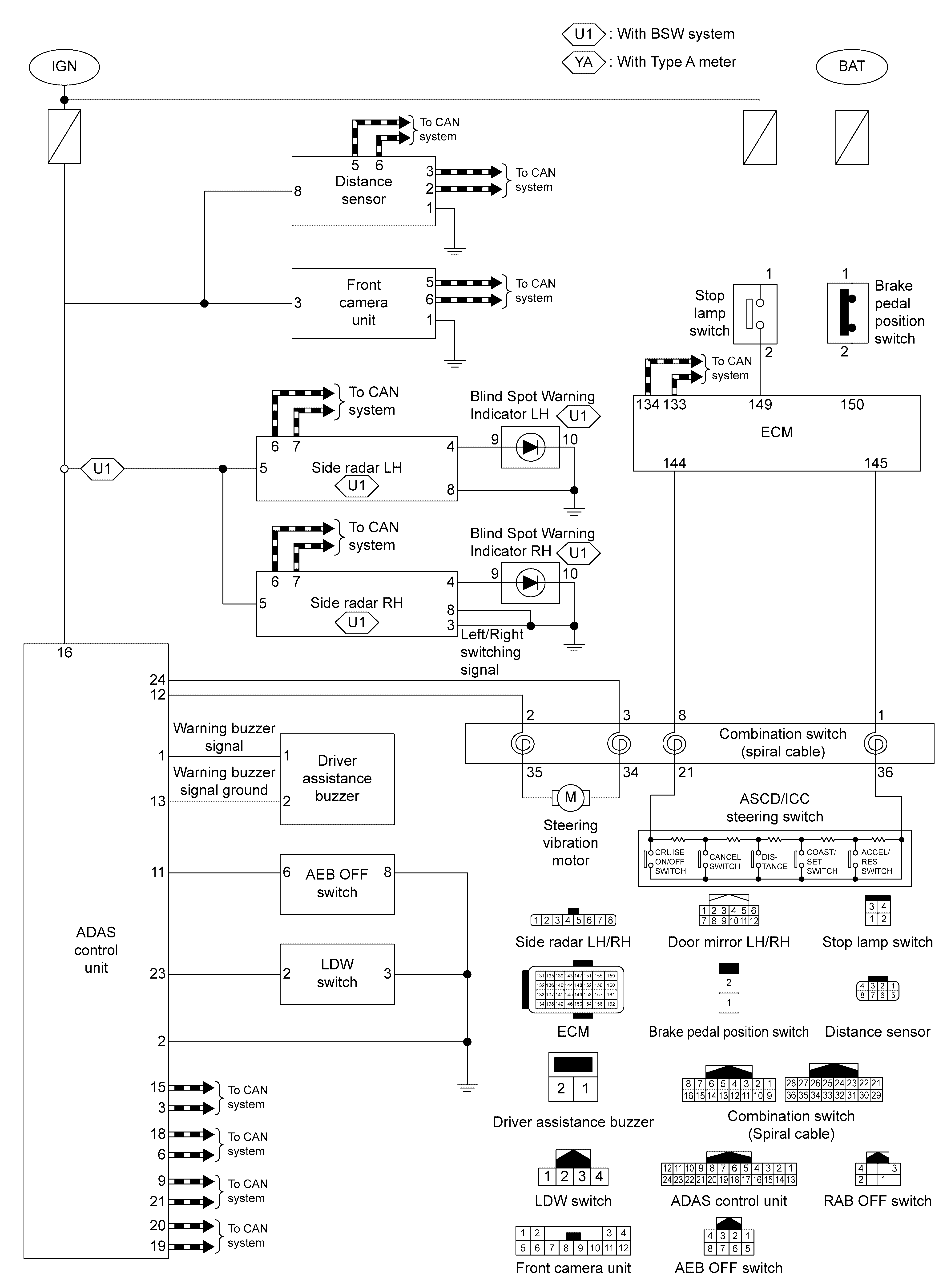

Circuit Diagram
Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
