Exploded View
Exploded View

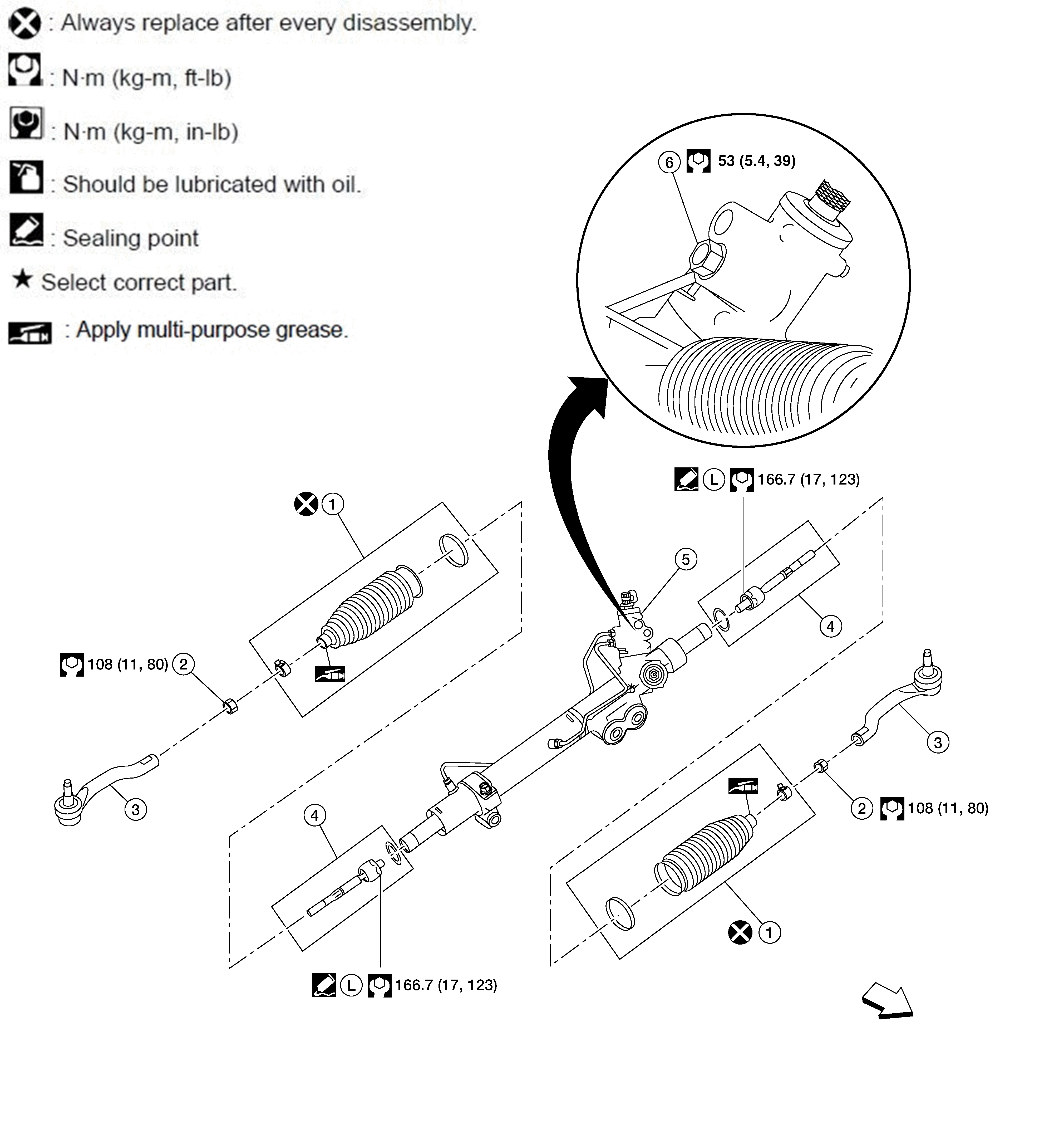

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Boot
2.
Lock nut
3.
Outer socket
4.
Inner socket
5.
Steering gear
6.
Check valve insert
Front
Courtesy of NISSAN NORTH AMERICA, INC.
