Exploded View

XD Models

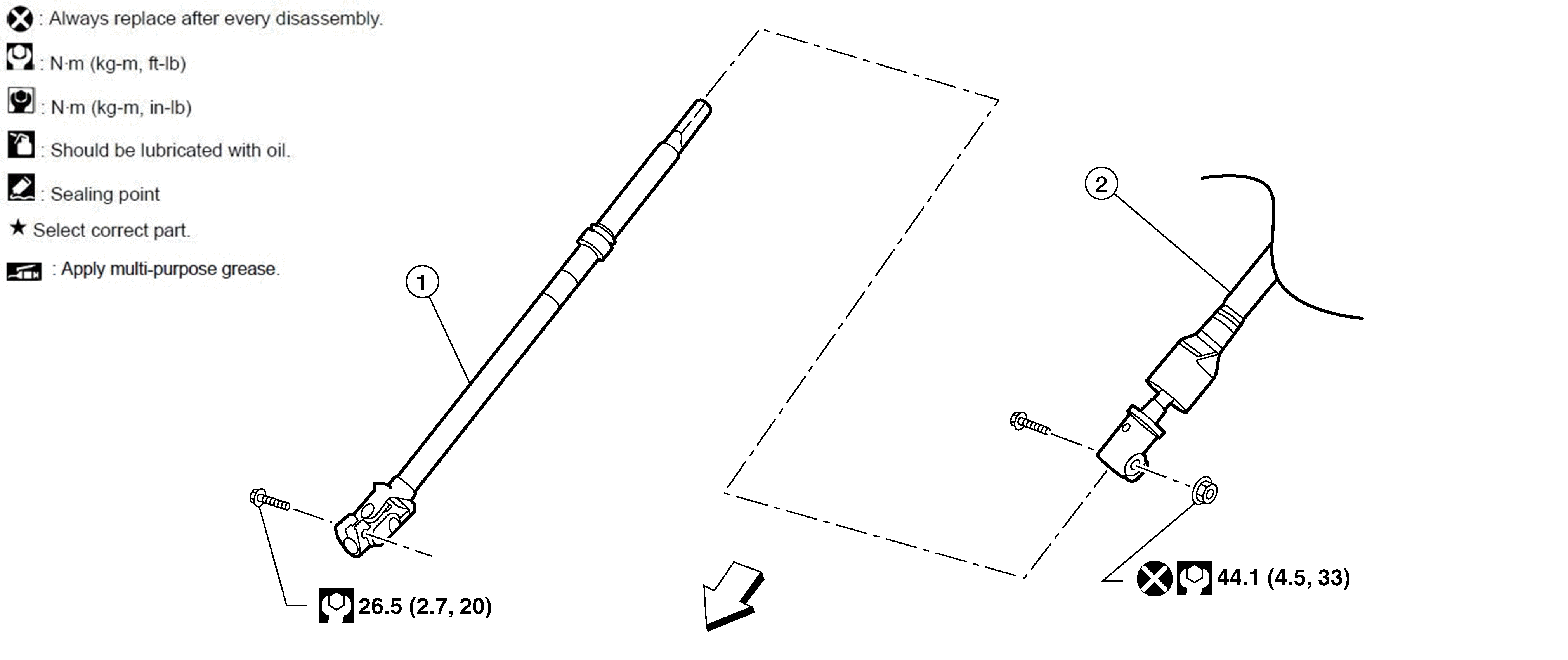

Fig 1: Lower Joint With Torque Specifications - XD Models
GNSDB150328Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Intermediate shaft SYMBOL Front

Non-XD Models

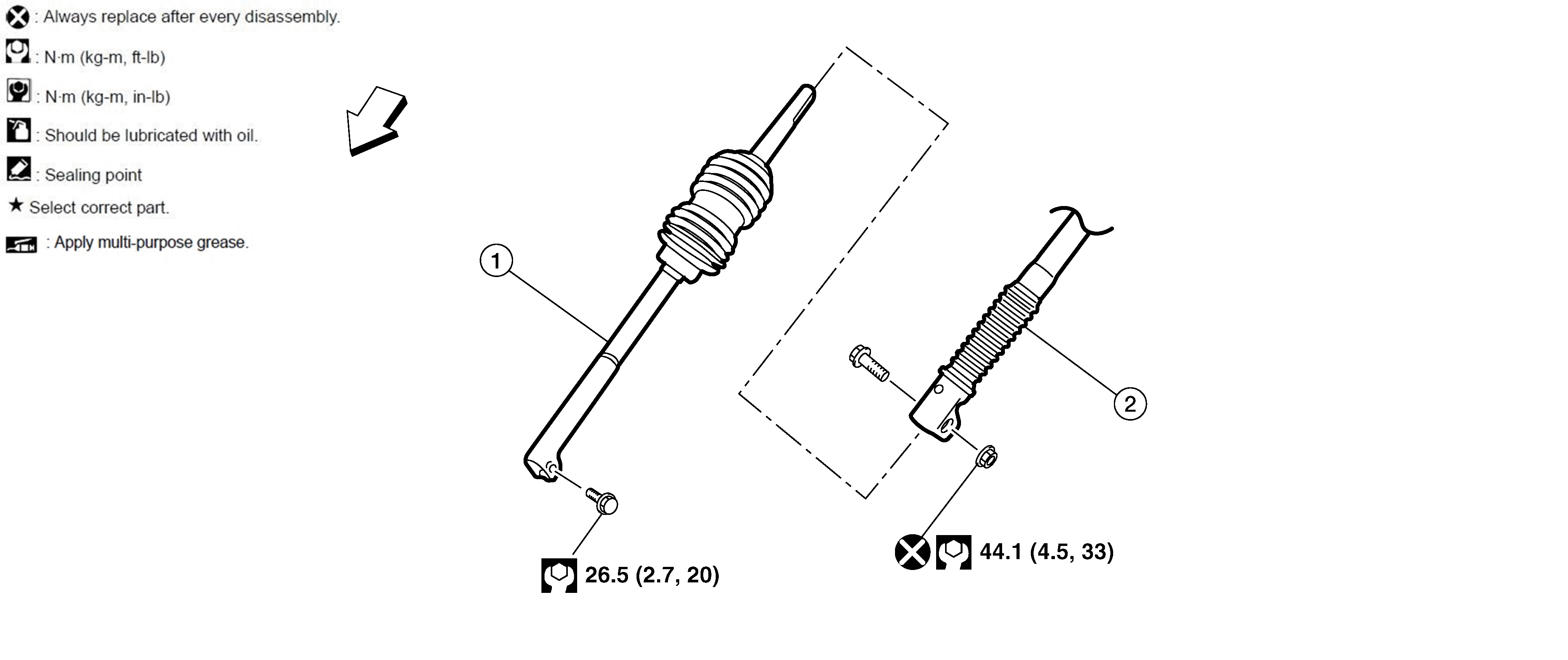

Fig 2: Lower Joint With Torque Specifications - Non-XD Models
GNSDB149617Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Intermediate shaft SYMBOL Front
