Component Location

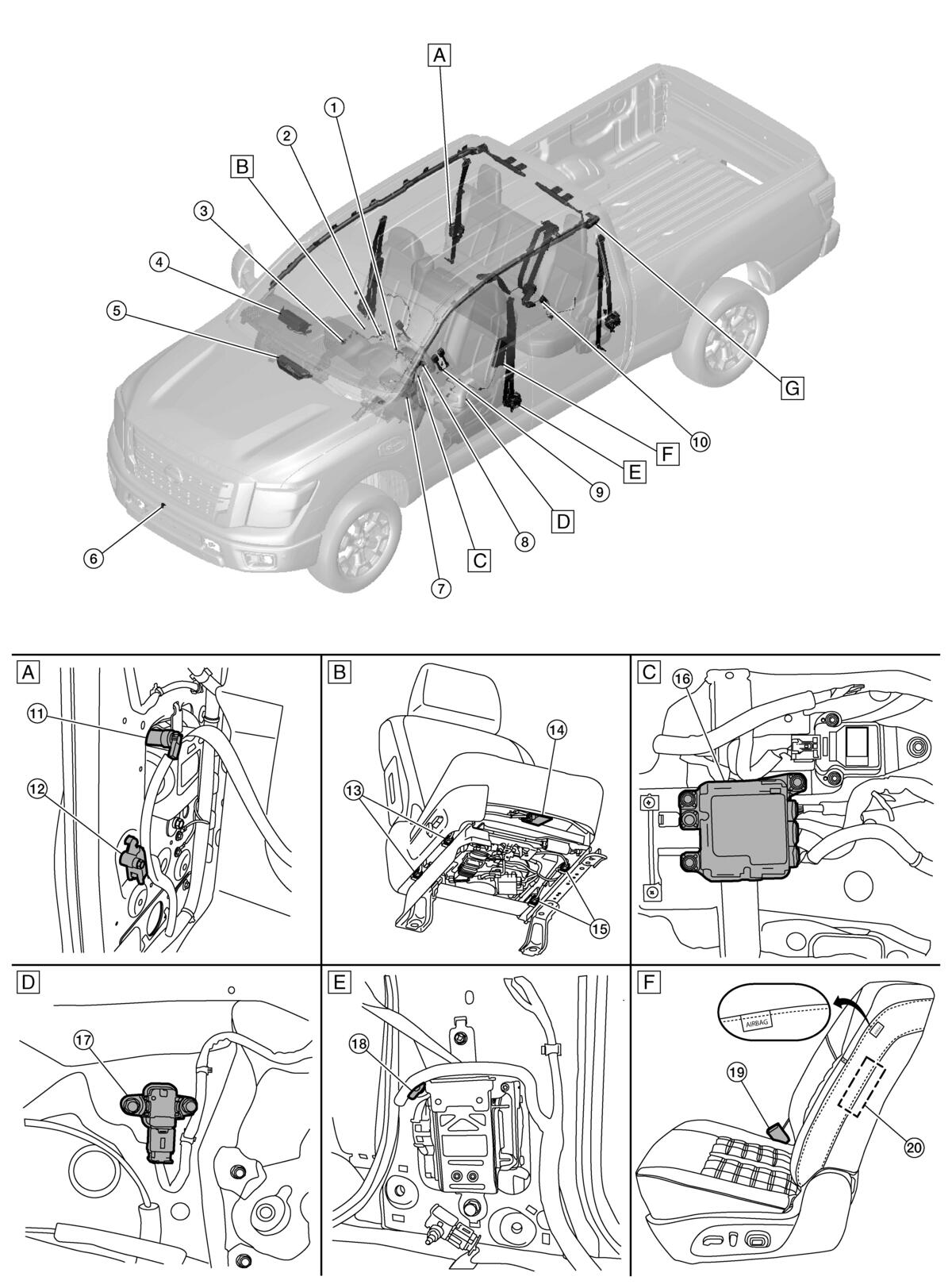

GNSDB149614Courtesy of NISSAN NORTH AMERICA, INC.
GNSDB151106Courtesy of NISSAN NORTH AMERICA, INC.
A. Right rear of seat area (view with rear kicking plate inner RH removed) B. Passenger seat area (view with seat removed) C. Between driver and passenger seat (view with center console removed)
D. Driver door area (view with front door finisher LH removed) E. Left of driver seat (view with driver's seat removed) F. Left of driver seat (view with center pillar lower finisher removed)

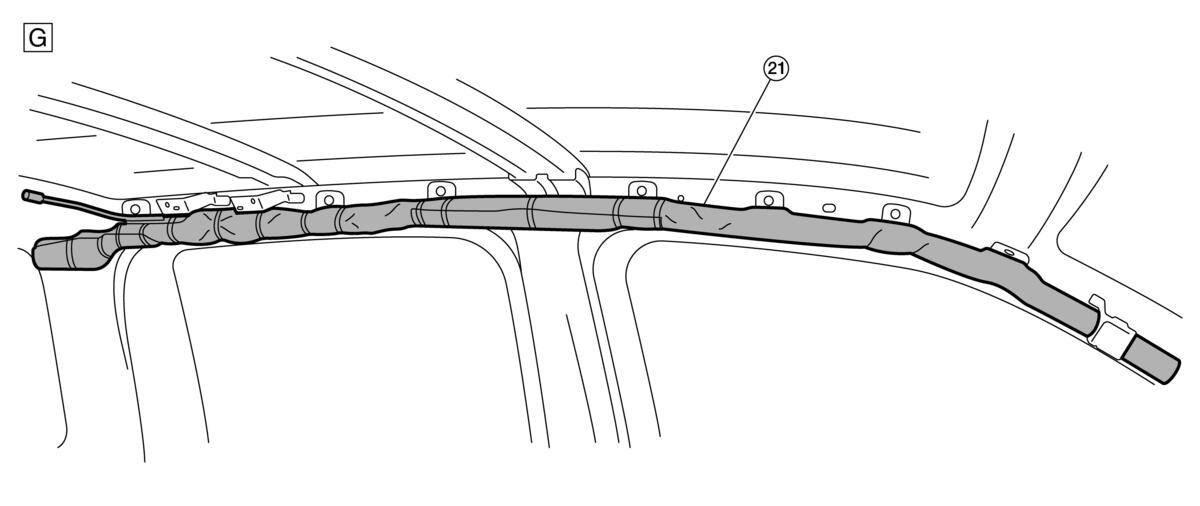

G. Left side of roof line (View with headliner and pillar finishers removed) (crew cab shown, King Cab similar)
No. Component Function
1. Front seat weight sensor center (if equipped) The front seat weight sensor center provides the passenger occupant status input signal to the air bag diagnosis sensor unit.
2. Front seat weight sensor RH (if equipped) The front seat weight sensor RH provides the passenger occupant status input signal to the air bag diagnosis sensor unit.
3. Front Passenger Air Bag Off Indicator Refer to Front Passenger Air Bag Off Indicator .
4. Front passenger air bag module Refer to Front Passenger Air Bag Module .
5. Right knee air bag module Refer to Knee Air Bag Module .
6. Crash zone sensor Refer to Crash Zone Sensor .
7. Left knee air bag module Refer to Knee Air Bag Module .
8. Driver air bag module Refer to Driver Air Bag Module .
9. Front seat belt buckle switch center (if equipped) The front seat belt buckle switch provides the seat belt buckle signal to the air bag diagnosis sensor unit and the combination meter.
10. Rear seat belt buckle switch LH (RH and Center similar) The rear seat belt buckle switch LH provides the seat belt buckle signal to the air bag diagnosis sensor unit.
11. Rear RH seat belt pre-tensioner (LH similar) Refer to Rear Seat Belt Pre-Tensioner .
12. Rear side air bag satellite sensor RH (LH similar) Refer to Rear Side Air Bag Satellite Sensor .
13. Occupant classification system sensor outer (if equipped) Refer to System Description .
14. Occupant classification system control unit (if equipped)
15. Occupant classification system sensor inner (if equipped)
16. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
17. Front door satellite sensor LH (RH similar) Refer to Front Door Satellite Sensor .
18. Front LH seat belt pre-tensioner (RH similar) Refer to Front Seat Belt Pre-tensioner .
19. Front seat belt buckle switch LH (RH similar) The front seat belt buckle switch provides the seat belt buckle signal to the air bag diagnosis sensor unit and the combination meter.
20. Side air bag module LH (RH similar) Refer to Front Passenger Air Bag Module .
21. LH side curtain air bag module (RH similar) Refer to Side Curtain Air Bag Module-Crew cab .
