Exploded View

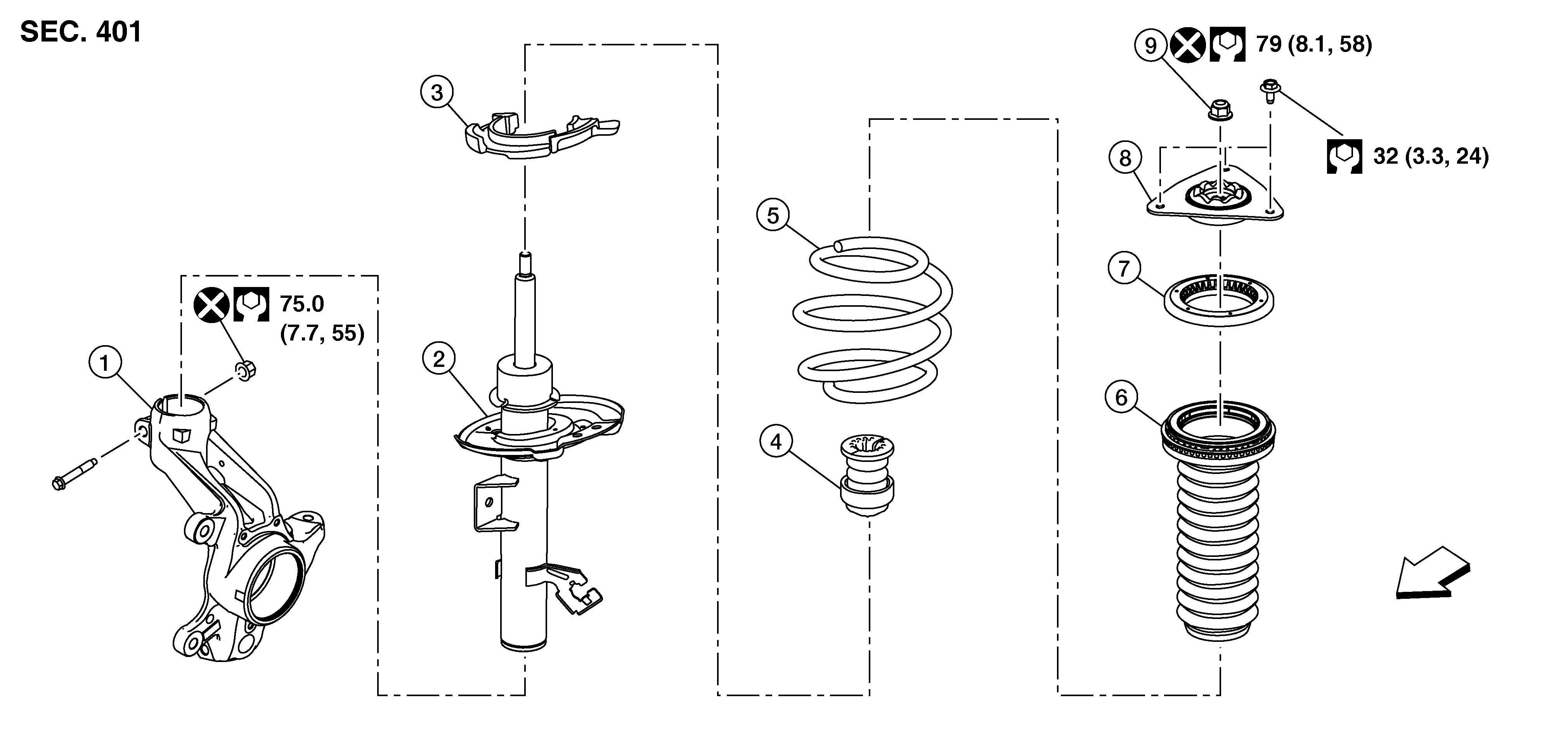

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSDB133871Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Strut 3. Lower rubber seat
4. Bound bumper 5. Coil spring 6. Dust cover
7. Mounting bearing 8. Mounting insulator 9. Piston rod lock nut
SYMBOL Front
