Engine Cooling System Schematic
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

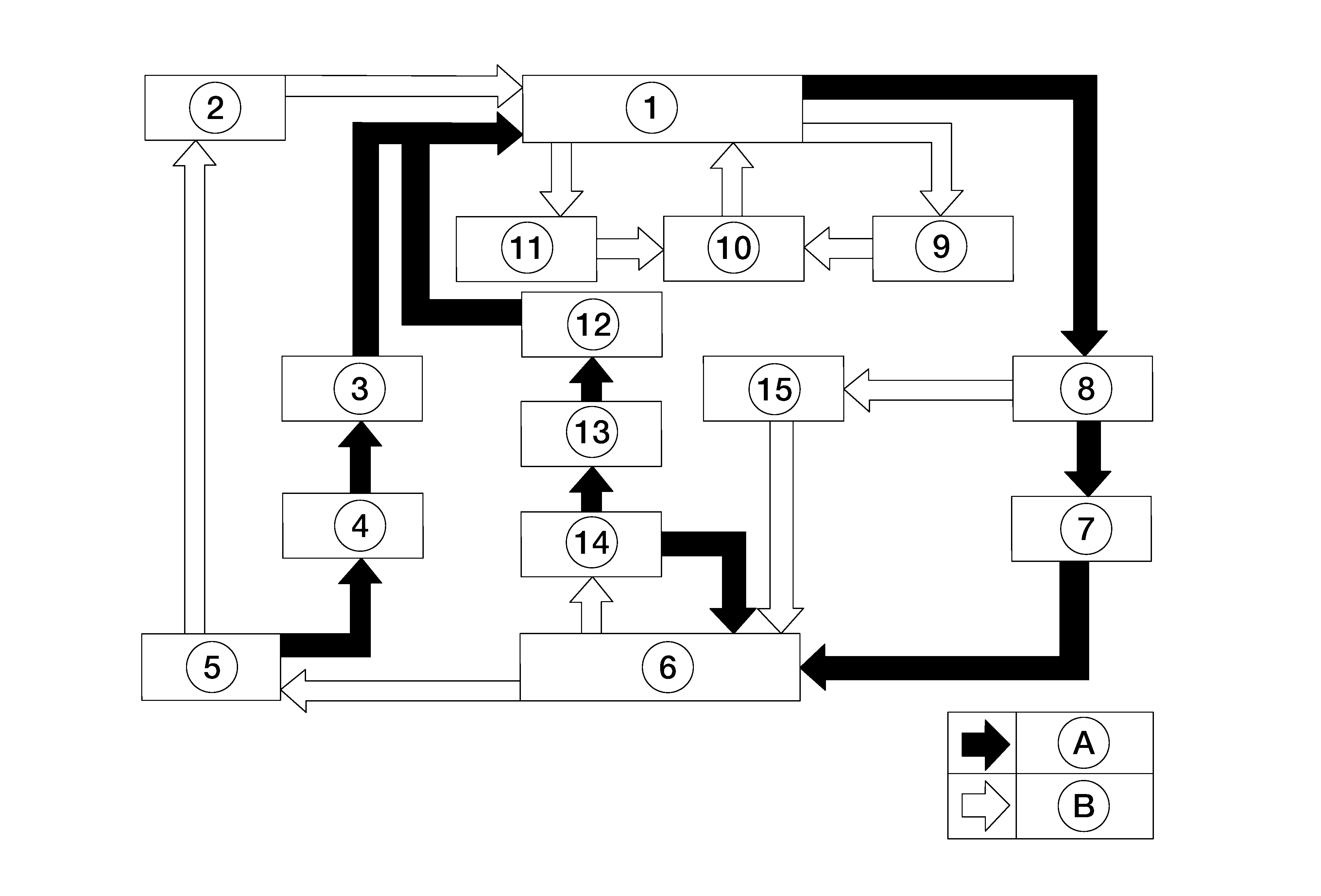

CVT models
| 1. | Water outlet | 2. | Cylinder head | 3. | Water control valve |
| 4. | Cylinder block | 5. | Water pump | 6. | Water pump housing |
| 7. | Water inlet | 8. | Radiator | 9. | Electric throttle control actuator |
| 10. | EGR cooler | 11. | Heater core | 12. | CVT fluid warmer |
| 13. | Heater thermostat assembly | 14. | Oil cooler | 15. | Reservoir tank |
| A. | High temperature | B. | Normal temperature | ||

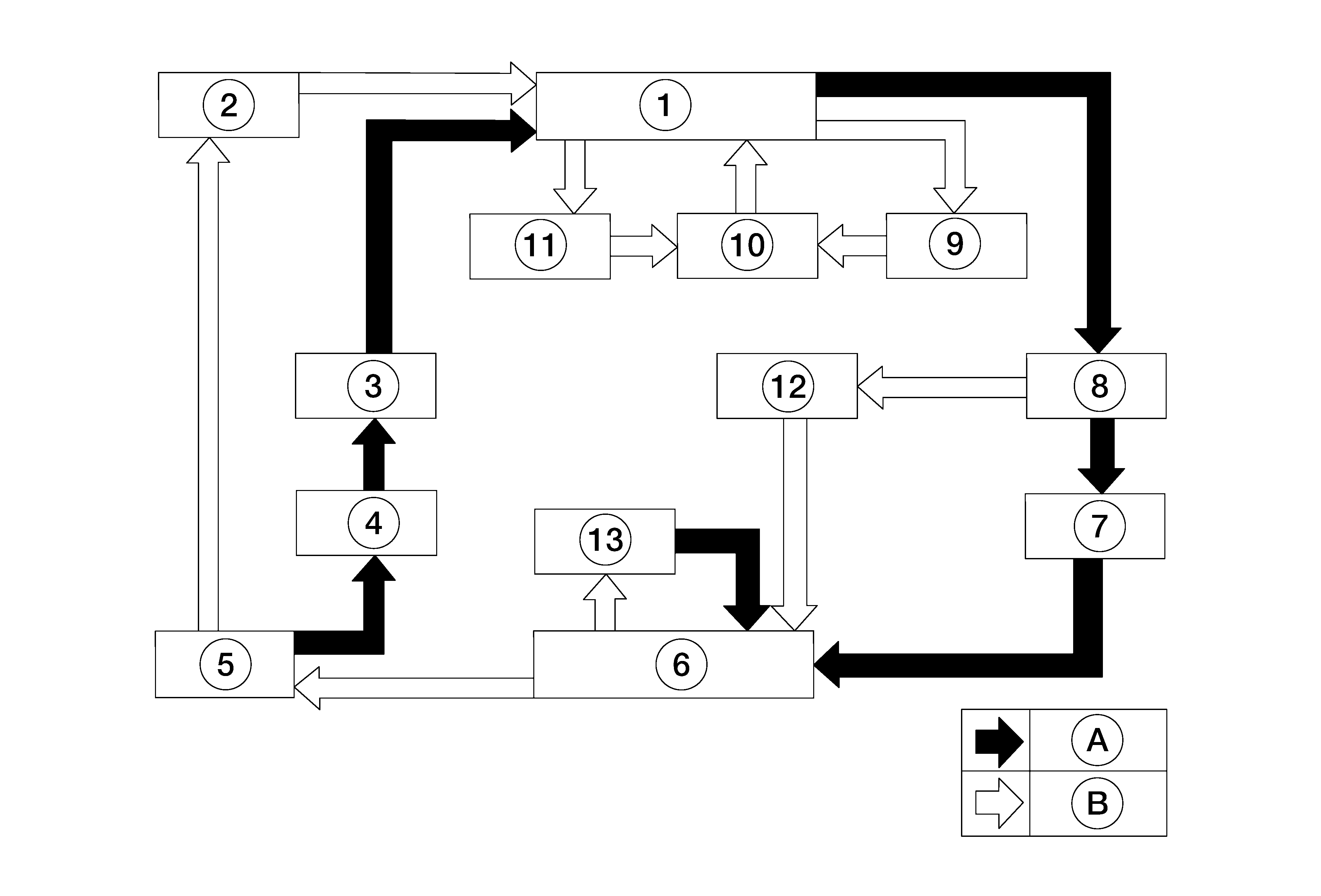

M/T models
| 1. | Water outlet | 2. | Cylinder head | 3. | Water control valve |
| 4. | Cylinder block | 5. | Water pump | 6. | Water pump housing |
| 7. | Water inlet | 8. | Radiator | 9. | Electric throttle control actuator |
| 10. | EGR cooler | 11. | Heater core | 12. | Reservoir tank |
| 13. | Oil cooler | A. | High temperature | B. | Normal temperature |
