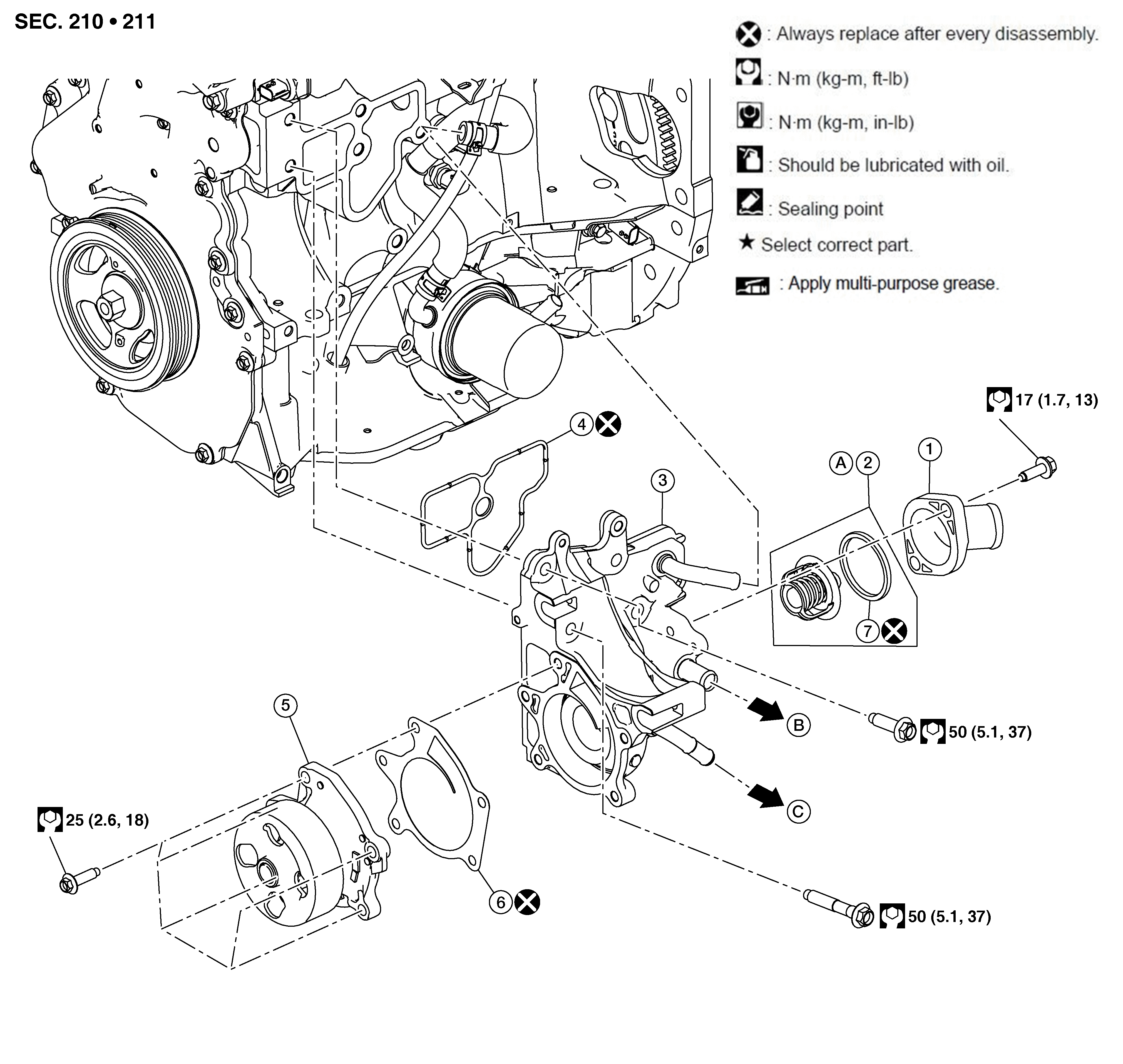

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Water inlet | 2. | Thermostat assembly | 3. | Water pump housing |
| 4. | Water pump housing gasket | 5. | Water pump | 6. | Water pump gasket |
| 7. | O-ring | A. | Refer to Removal and Installation . | B. | To reservoir tank. Refer to Exploded View . |
| C. | To CVT oil warmer (CVT models only). Refer to Exploded View . To oil cooler (M/T models only). Refer to Exploded View . | ||||
