Engine Stand Setting: Setting

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Explained here is how to disassemble with engine stand supporting transaxle surface. Some steps may be different if using a different type of engine stand.

Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the engine. Refer to Removal and Installation .

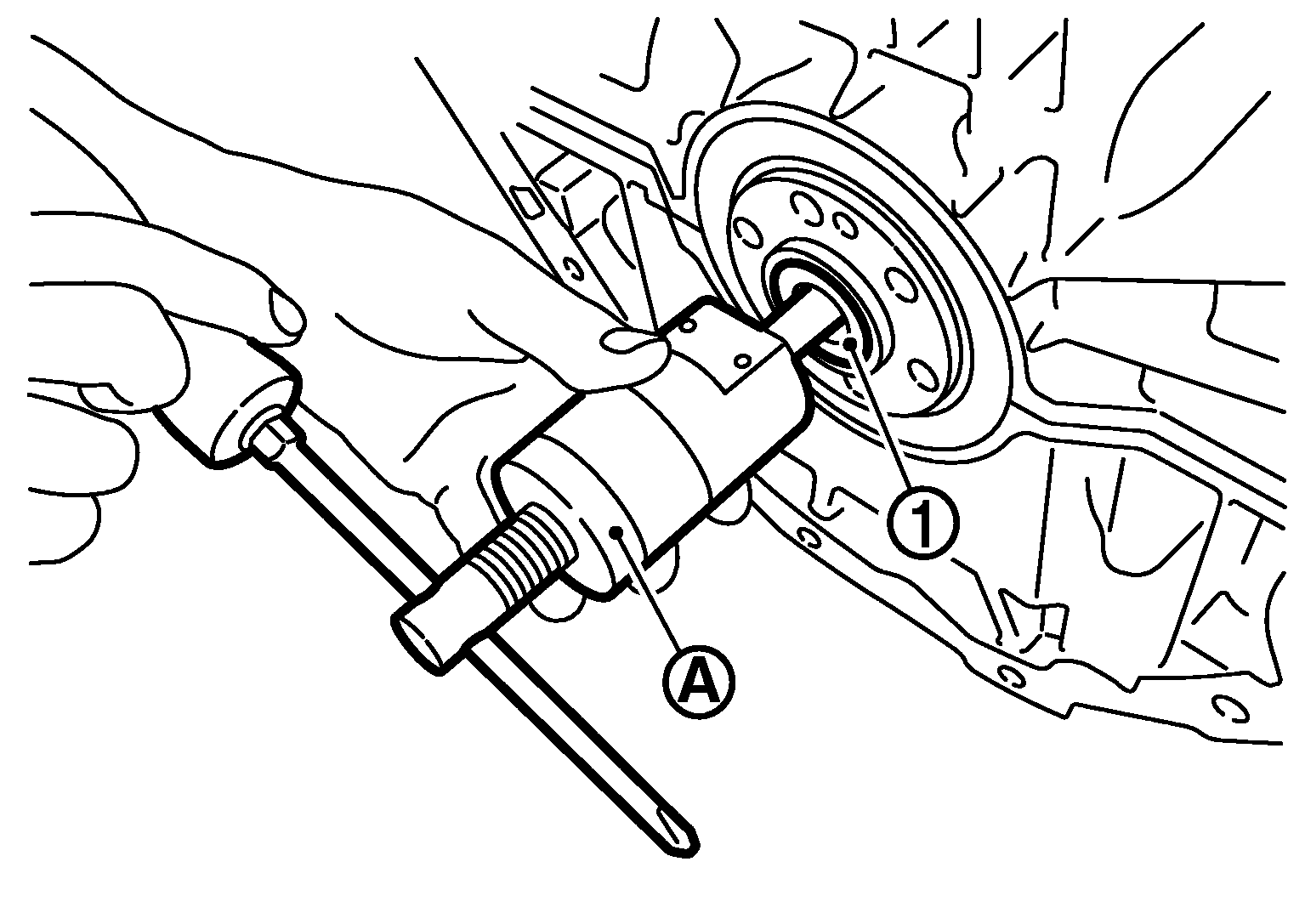

Install engine to engine stand using the following procedure: Remove the drive plate (CVT Models) or flywheel (M/T Models). Refer to Exploded View (CVT Models) or Exploded View (M/T Models). Remove the pilot converter from the rear end of the crankshaft with suitable tool before mounting to engine stand (if necessary).

Courtesy of NISSAN

Lift the engine with a hoist to install it onto widely use engine stand.
CAUTION:
- Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large enough for supporting the engine weight.
- If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the potential risk of overturning stand.
  - Intake manifold: Refer to Removal and Installation .
  - Exhaust manifold: Refer to Removal and Installation .
CAUTION:
Before removing the hanging chains, check the engine stand is stable and there is no risk of overturning.

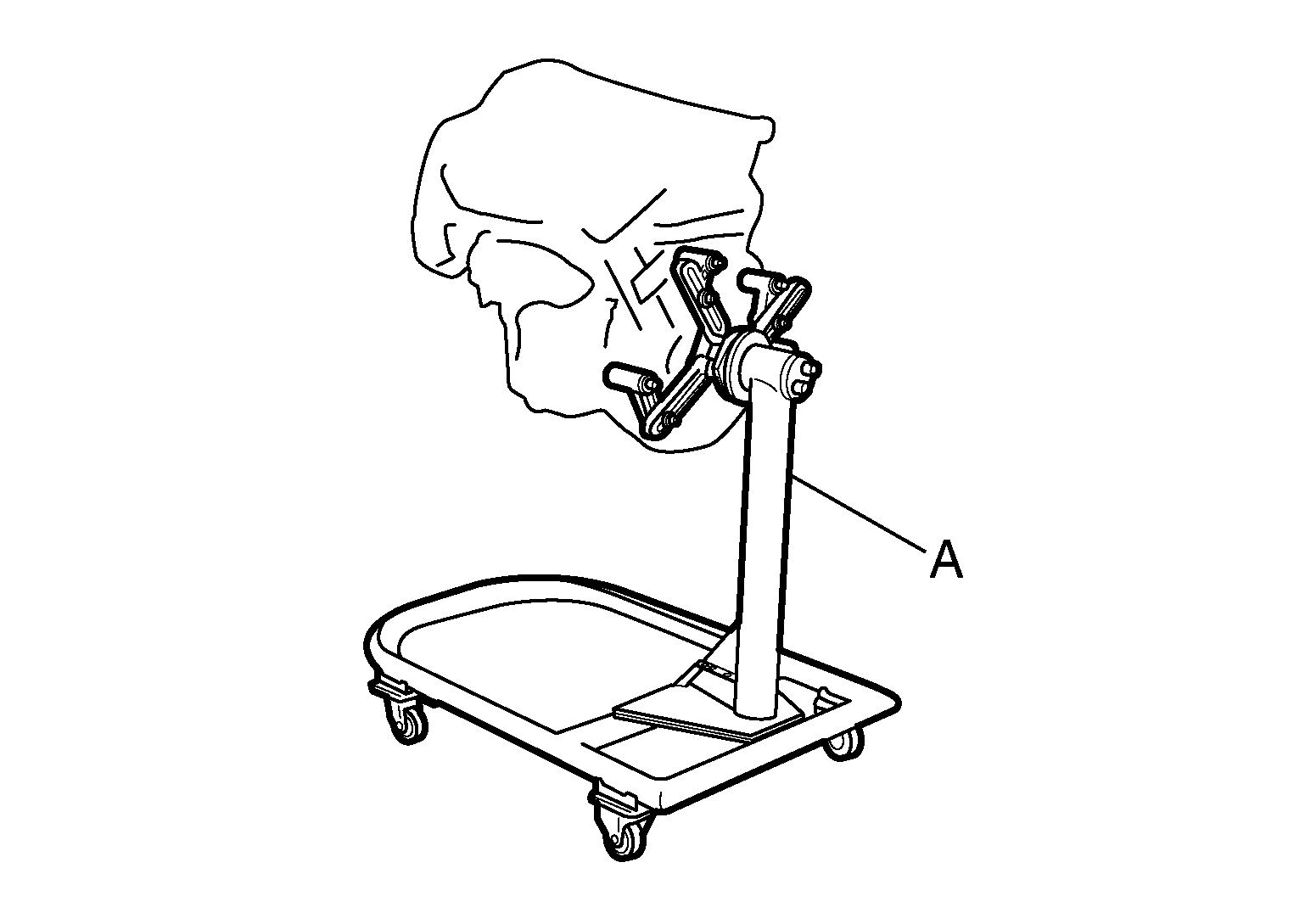

NOTE: Shown is an example of widely used engine stand (A) that can support mating surface of transaxle with the torsion damper removed.

Courtesy of NISSAN
Drain engine oil. Refer to Draining .
CAUTION:
Be sure to clean drain plug and install with new drain plug washer.
Drain engine coolant from cylinder block by removing water drain plug (1) from the side of the engine.

Courtesy of NISSAN

Use Genuine Silicone RTV Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

Tightening torque : Refer to Disassembly and Assembly .

: Engine front
