Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

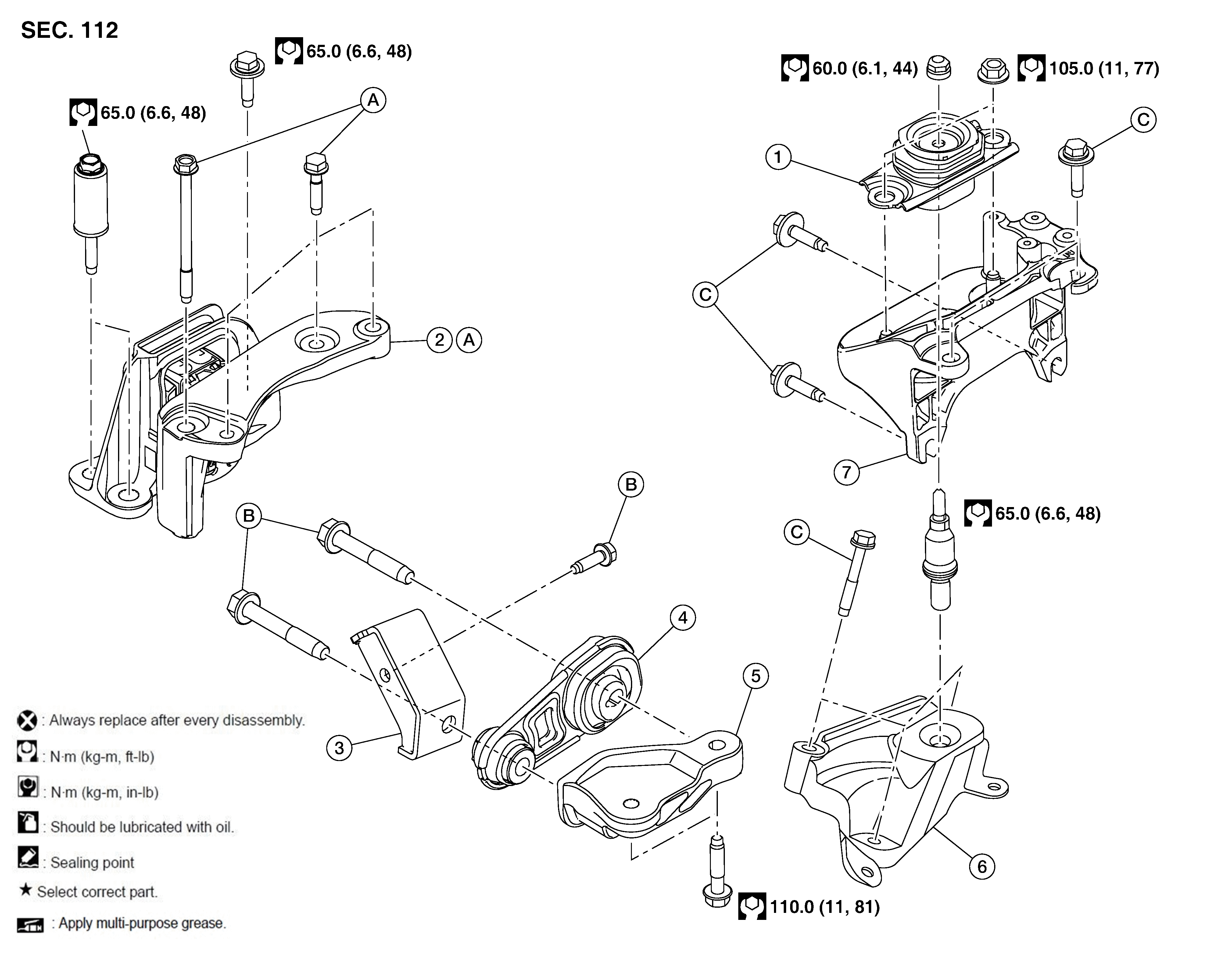

CVT Models
| 1. | Engine mounting insulator (LH) | 2. | Engine mounting insulator (RH) | 3. | Torque rod stay |
| 4. | Torque rod | 5. | Torque rod bracket | 6. | Engine mounting bracket (LH) |
| 7. | Engine mounting support (LH) | A. | Refer to Removal and Installation . | B. | Refer to Removal and Installation . |
| C. | Refer to Removal and Installation . | ||||

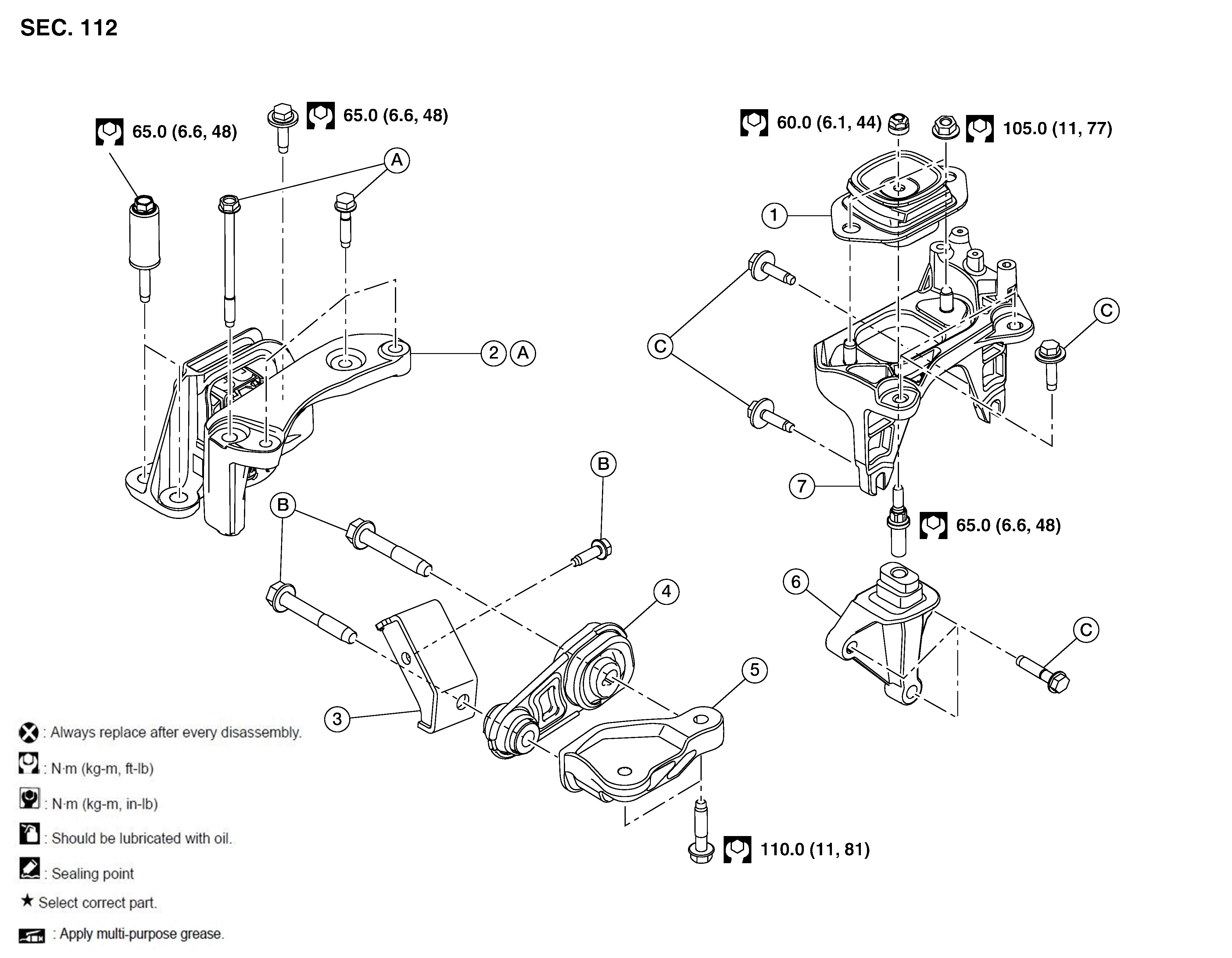

M/T Models
| 1. | Engine mounting insulator (LH) | 2. | Engine mounting insulator (RH) | 3. | Torque rod stay |
| 4. | Torque rod | 5. | Torque rod bracket | 6. | Engine mounting bracket (LH) |
| 7. | Engine mounting support (LH) | A. | Refer to Removal and Installation . | B. | Refer to Removal and Installation . |
| C. | Refer to Removal and Installation . | ||||
