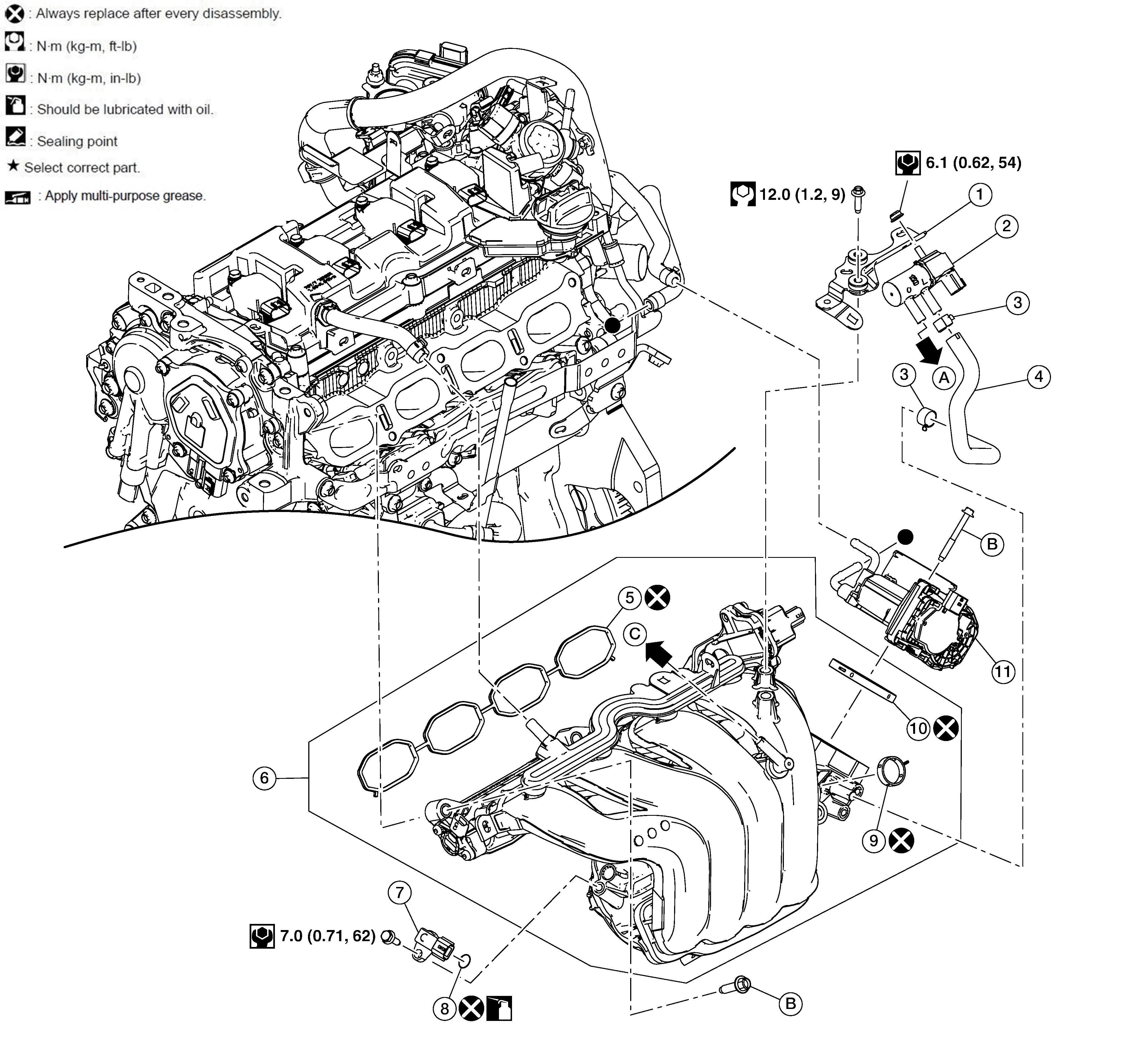

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | EVAP canister purge volume control solenoid valve bracket | 2. | EVAP canister purge volume control solenoid valve | 3. | Clamp |
| 4. | EVAP hose | 5. | Intake manifold gasket | 6. | Intake manifold assembly |
| 7. | Manifold absolute pressure (MAP) sensor | 8. | O-ring | 9. | EGR outlet tube gasket |
| 10. | Electronic throttle control actuator gasket | 11. | Electronic throttle control actuator | A. | To EVAP hose. Refer to Exploded View . |
| B. | Refer to Removal and Installation . | C. | To vacuum hose A. Refer to Exploded View . | ||
