System Description

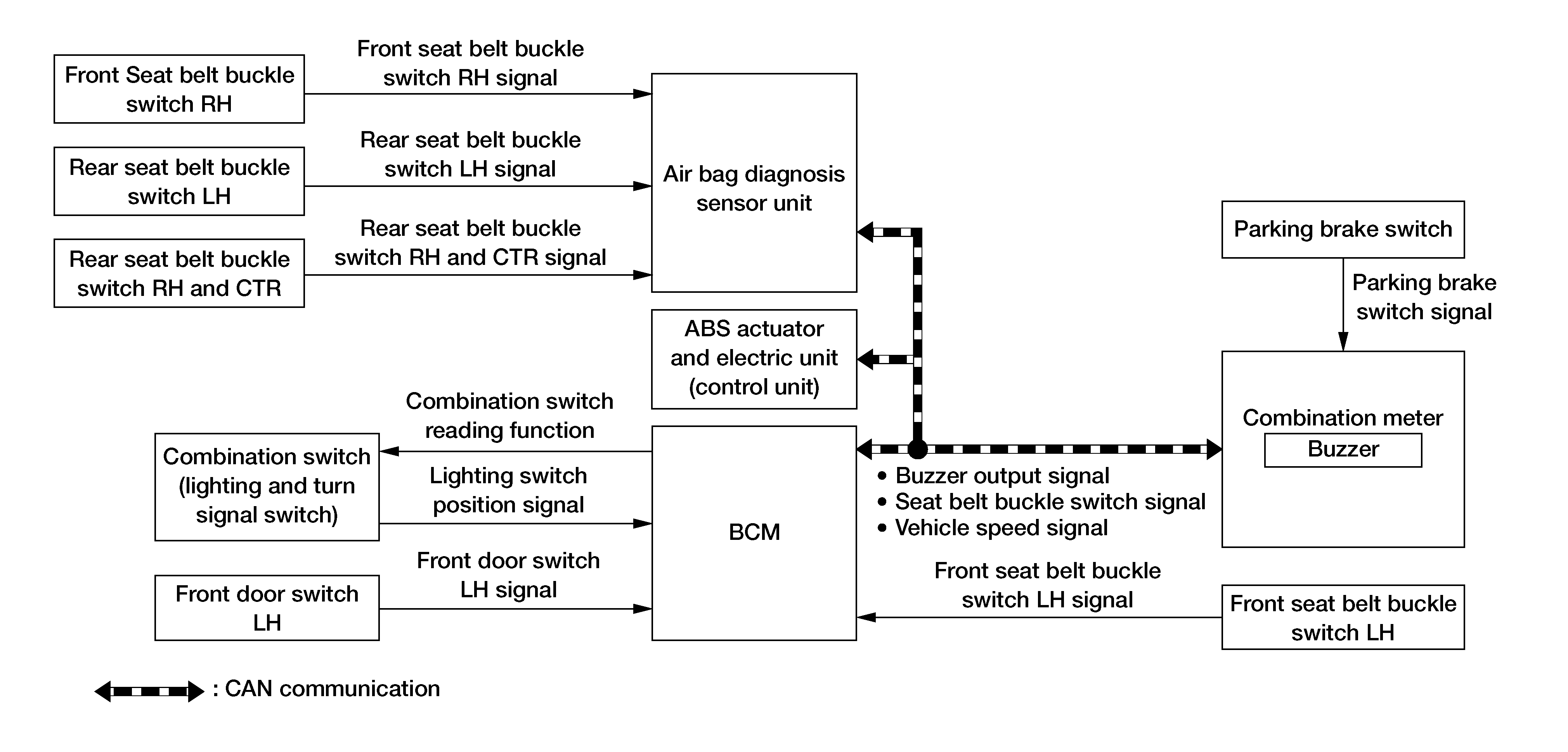

SYSTEM DIAGRAM
DESCRIPTION
Combination Meter:
The combination meter sounds the alarm buzzer installed in the combination meter when receiving the buzzer output signal transmitted from each unit.
BCM:
BCM receives signals from various units and transmits a buzzer output signal to the combination meter via CAN communication if it judges that the warning buzzer should be activated.
Air Bag Diagnosis Sensor Unit:
Air bag diagnosis sensor unit receives signals from front seat belt buckle switch RH, and rear seat belt buckle switches, then transmits a buzzer output signal to the combination meter via CAN communication if it judges that the warning buzzer should be activated.
WARNING CHIME FUNCTION LIST
| Warning functions | Refer to |
|---|---|
| Light reminder warning | Light Reminder Warning Chime |
| Parking brake release warning chime | Parking Brake Release Warning Chime |
| Seat belt warning | Seat Belt Warning Chime |
COMBINATION METER INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)
Input signal
| Signal name | Transmit unit |
|---|---|
| Vehicle speed signal | ABS actuator and electric unit (control unit) |
| Buzzer output signal | BCM |
| Front seat belt buckle switch LH signal | |
| Front seat belt buckle switch RH signal | Air bag diagnosis sensor unit |
| Rear seat belt buckle switch LH signal | |
| Rear seat belt buckle switch RH and CTR signal |
Output signal
| Signal name | Reception unit |
|---|---|
| Vehicle speed signal | BCM |
BCM INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)
Input signal
| Signal name | Transmit unit |
|---|---|
| Vehicle speed signal | Combination meter |
Output signal
| Signal name | Reception unit |
|---|---|
| Buzzer output signal | Combination meter |
| Front seat belt buckle switch LH signal |
AIR BAG DIAGNOSIS SENSOR UNIT INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)
Input signal
| Signal name | Transmit unit |
|---|---|
| Front seat belt buckle switch RH signal | Air bag diagnosis sensor |
| Rear seat belt buckle switch RH signal | |
| Rear seat belt buckle switch LH signal | |
| Rear seat belt buckle switch center signal |
Output signal
| Signal name | Reception unit |
|---|---|
| Front seat belt buckle switch RH signal | Combination meter |
| Rear seat belt buckle switch RH signal | |
| Rear seat belt buckle switch LH signal | |
| Rear seat belt buckle switch center signal |
