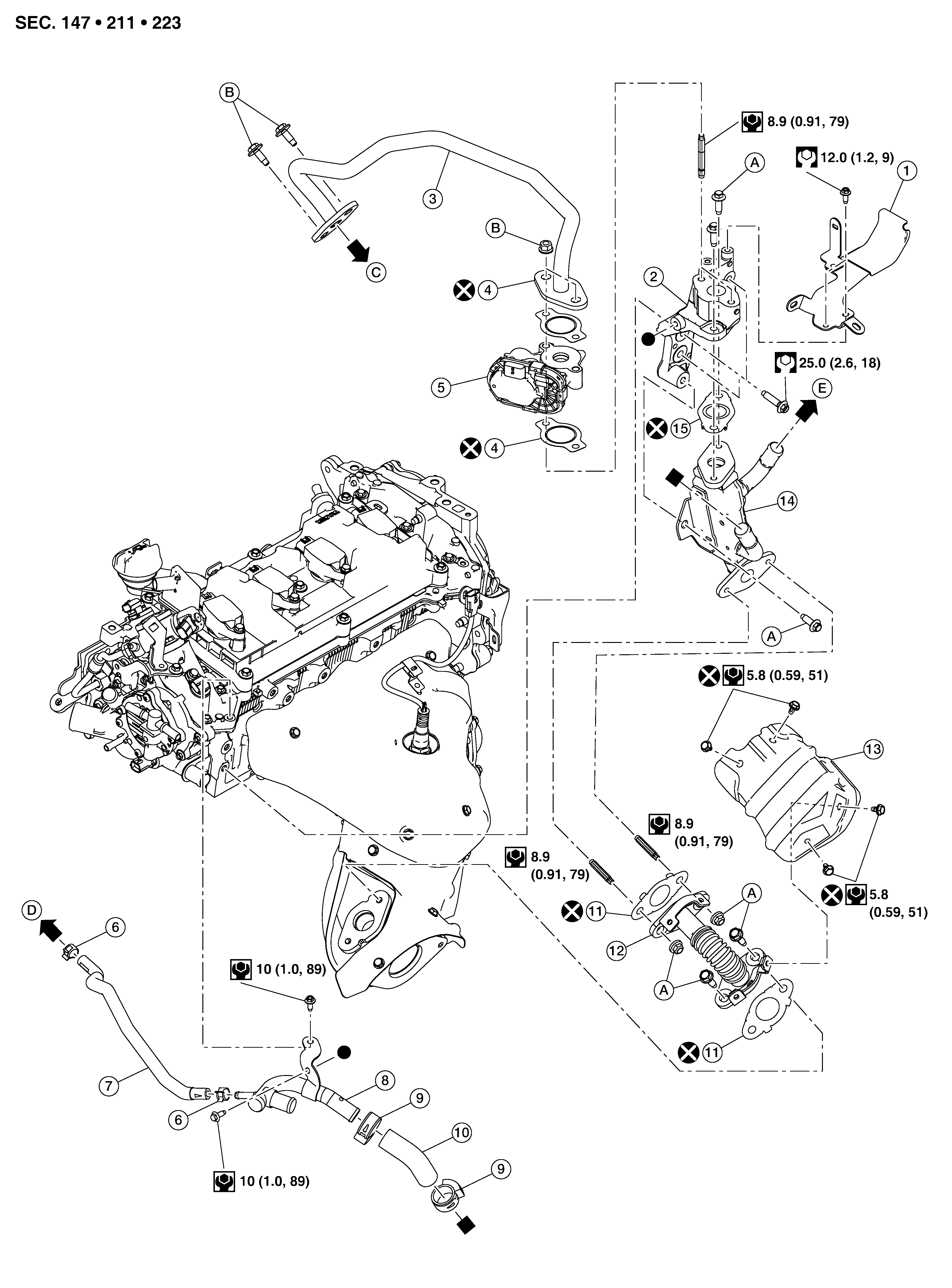

Exploded View
| 1. | Vacuum delay valve bracket | 2. | EGR cooler bracket | 3. | EGR outlet tube |
| 4. | EGR volume control valve gasket | 5. | EGR volume control valve | 6. | Clamp |
| 7. | Water hose | 8. | Water pipe | 9. | Clamp |
| 10. | Water hose | 11. | EGR inlet tube gasket | 12. | EGR inlet tube |
| 13. | EGR inlet tube heat shield | 14. | EGR cooler | 15. | EGR cooler gasket |
| A. | Refer to Removal and Installation . | B. | Refer to Removal and Installation . | C. | To intake manifold. Refer to Exploded View . |
| D. | To electric throttle control actuator. Refer to Exploded View . | E. | To water hose. Refer to Exploded View . | ||
,
