Precautions for Traffic Sign Recognition

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION FOR LANE CAMERA UNIT

For operating the system normally, replace the windshield glass in the following case.

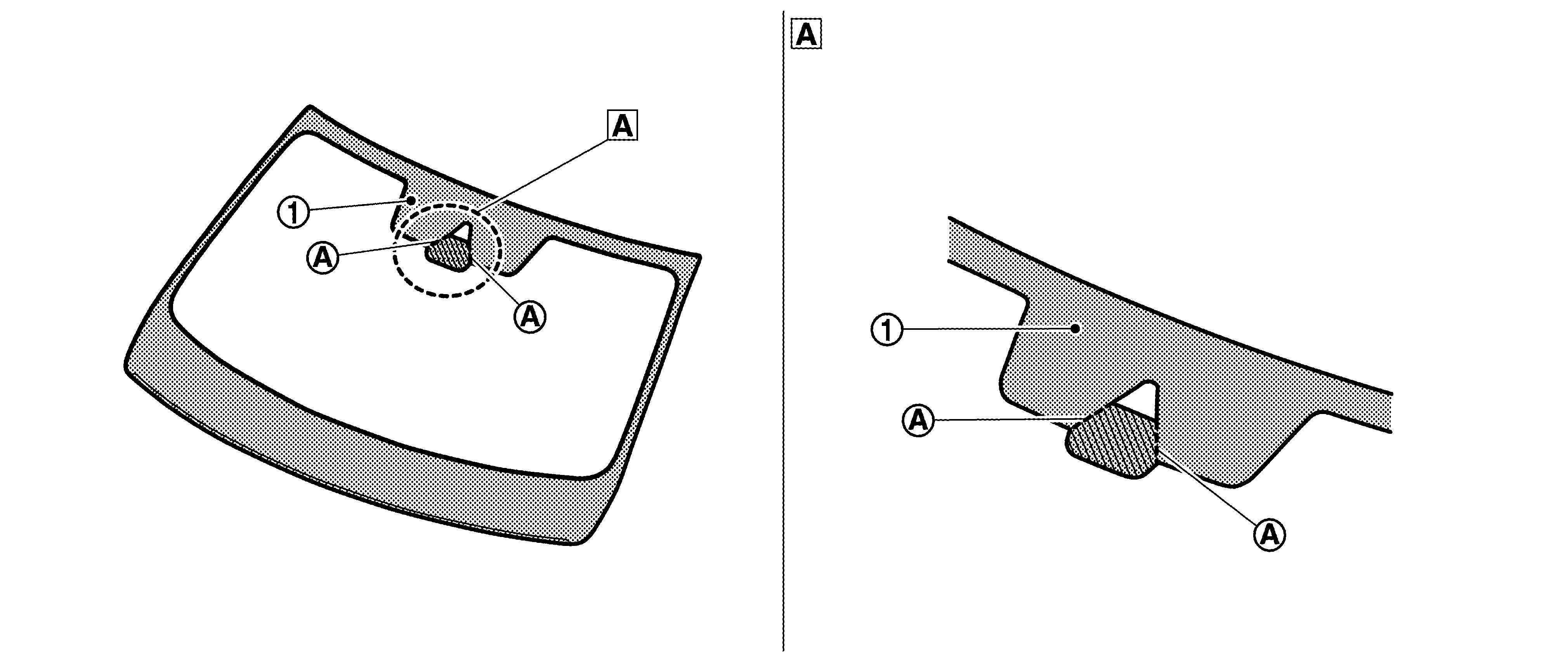

When there is a scratch on the area printed in black of windshield upper portion.

Courtesy of NISSAN

	Detail
	Black print part
	Line extended from notch (front camera unit)

LANE CAMERA UNIT HANDLING

To keep the proper operation of the TSR system and prevent a system malfunction, be sure to observe the following:

Always keep the windshield clean.
Do not attach a sticker (including transparent material) or install an accessory near the lane camera unit.
Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the lane camera unit capability of detecting the lane markers.
Do not strike or damage the areas around the camera unit. Do not touch the camera lens or remove the screw located on the camera unit. If the camera unit is damaged due to an accident.

TRAFFIC SIGN RECOGNITION

CAUTION:

There are limitations to the Traffic Sign Recognition. Be careful to observe traffic signs, etc. and drive safely.
Detection may not be possible depending on the vehicle status, driving conditions, traffic environment, weather conditions, and the condition of the sign.
Under conditions such as the following, detection of Traffic Sign Recognition is delayed and detection may not be possible.
- A portion of the sign is hidden and obscured by a tree, dirt, etc.
- The shape of the sign is changed due to the sign being bent, etc.
- The vehicle is traveling at a fast speed.
Depending on certain conditions, it may not be possible to hear the warning sound due to outside noises.
