Removal and Installation

REMOVAL

1. Remove front bumper fascia. Refer to Removal and Installation .
2. Disconnect harness connector from distance sensor.
3. Remove nuts and remove distance sensor.
4. If necessary, remove bolts from front bumper reinforcement (upper) and front bumper fascia retainer, and remove distance sensor bracket.

INSTALLATION

1. If removed, install distance sensor bracket to front bumper fascia retainer. Tighten nuts to specification in sequence shown, below.

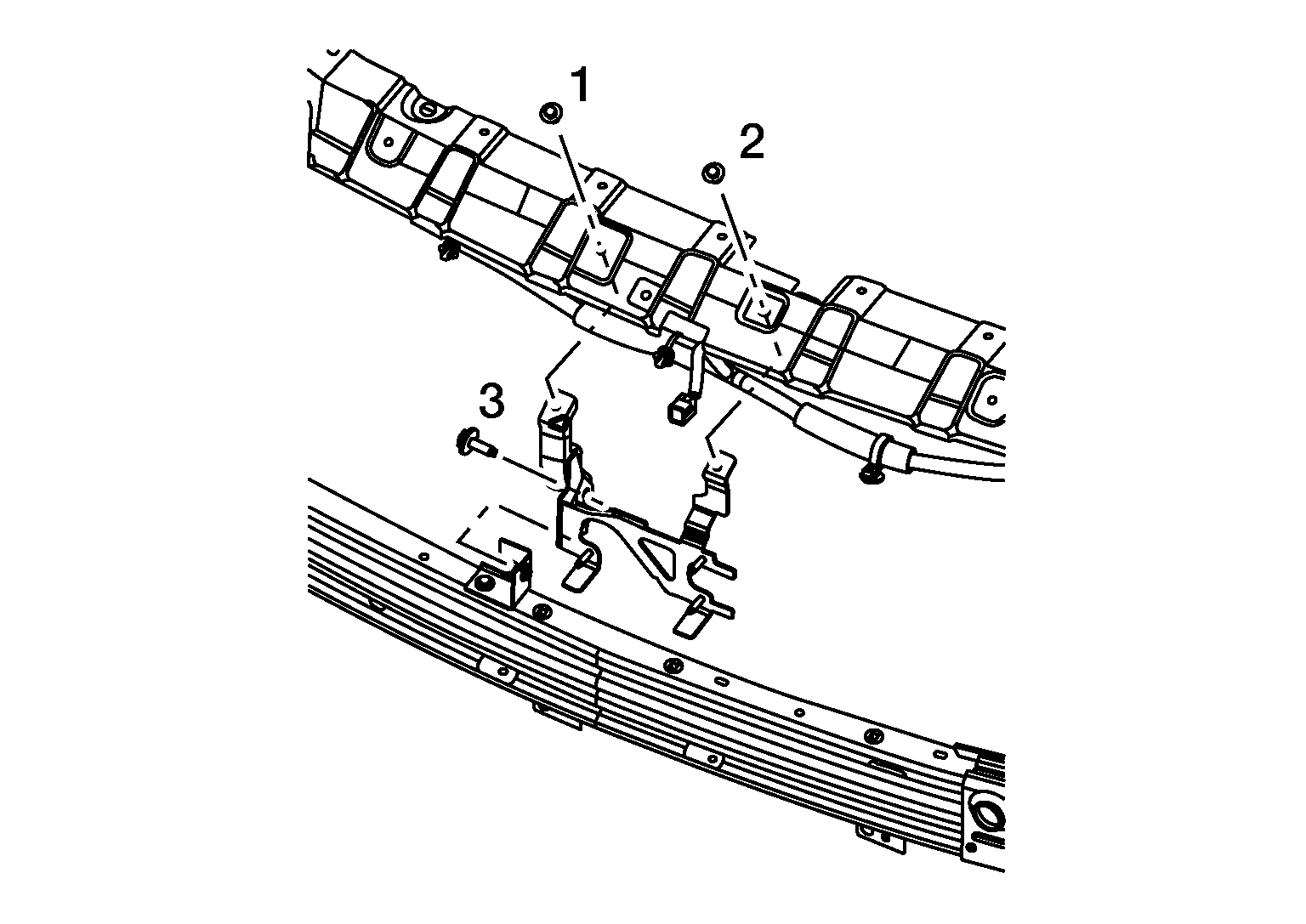

   Fig 1: Distance Sensor Bracket Nut Tightening Sequence

   Courtesy of NISSAN

   Distance sensor bracket nuts

   : 8.0 N.m (0.82 kg-m, 71 in-lb)

2. Install distance sensor to distance sensor bracket and tighten nuts to specification in sequence shown, below.

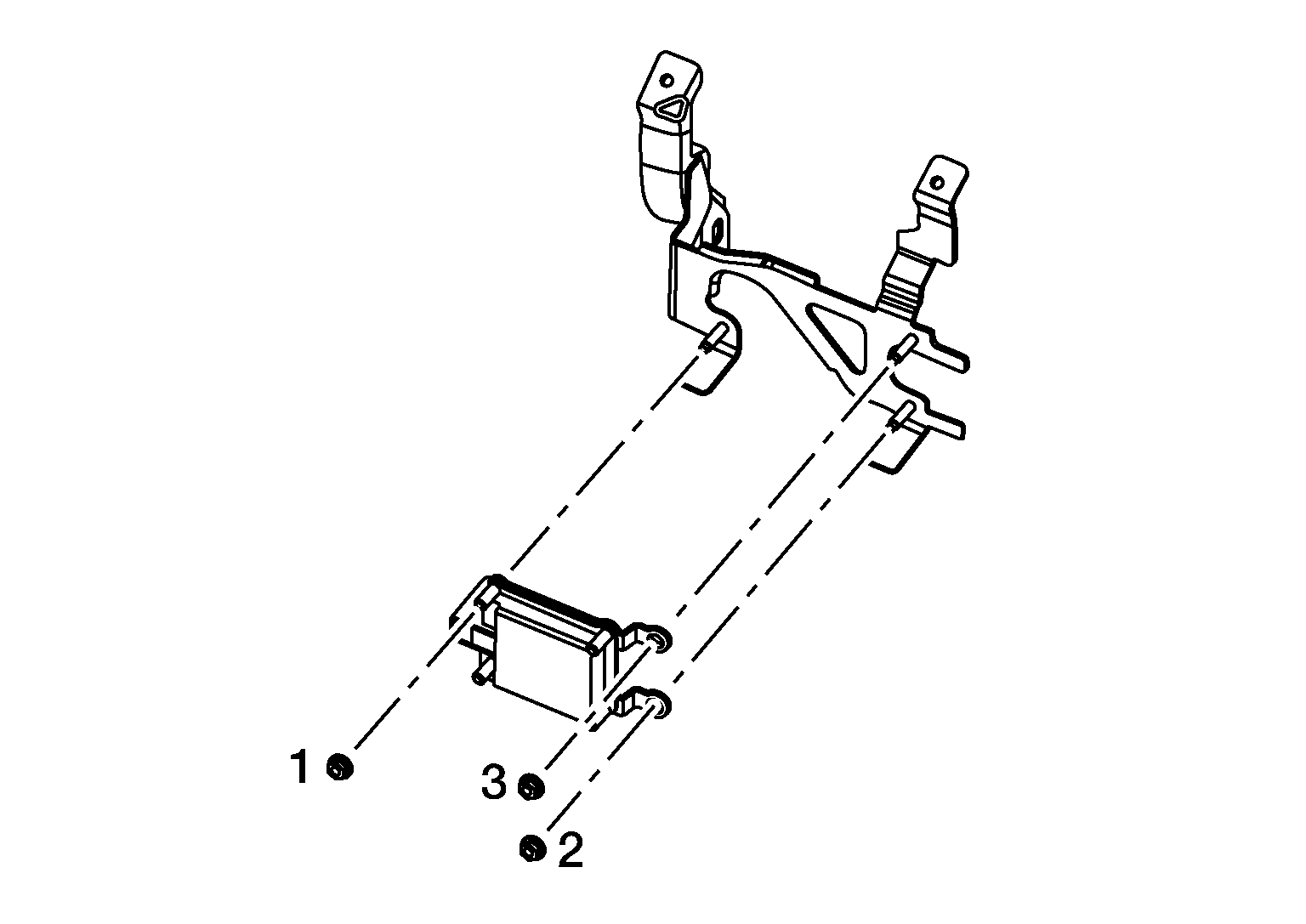

   Fig 2: Distance Sensor Nut Tightening Sequence

   Courtesy of NISSAN

   Distance sensor nuts

   : 8.0 N.m (0.82 kg-m, 71 in-lb)

3. Connect harness connector to distance sensor.
4. Installation of remaining components is in the reverse order of removal.
   CAUTION:

   • If distance sensor is being replaced or has been disconnected, perform "ADDITIONAL SERVICE WHEN REPLACING DISTANCE SENSOR". Refer to Work Procedure .
   • Do not touch distance sensor face.
   • Do not drop or shock distance sensor.
   • Make sure distance sensor harness is installed without any twists.
