Work Procedure

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Perform action test to verify the customer's concern.
Perform action test and check the system operation after system diagnosis.

CAUTION:

Fully understand the following items well before the road test;

System description: System Description
Handling precaution: Handling Precaution

CHECK BSW SYSTEM SETTING
1. 1. Start the engine.
  2. Check that the BSW system setting can be enabled/disabled on the information display.
  3. Turn OFF the ignition switch and wait for 5 seconds or more.
  4. Check that the previous setting is saved when the engine starts again.
>>

GO TO 2.

BSW SYSTEM ACTION TEST

Enable the setting of the BSW system on the information display.

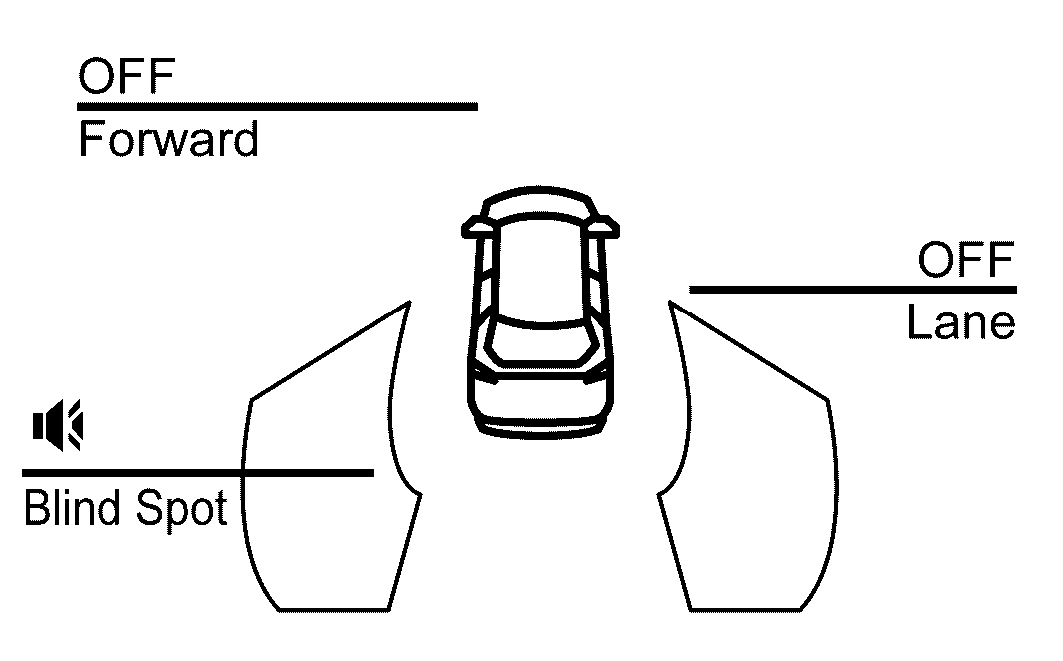

Turn BSW system display ON (Speaker icon is ON at the "Blind spot").

Check BSW operation according to the following table.

4.2 inch Information Display

Condition				Action	Display on information display	Steering vibration
BSW OFF				-	Courtesy of NISSAN	OFF

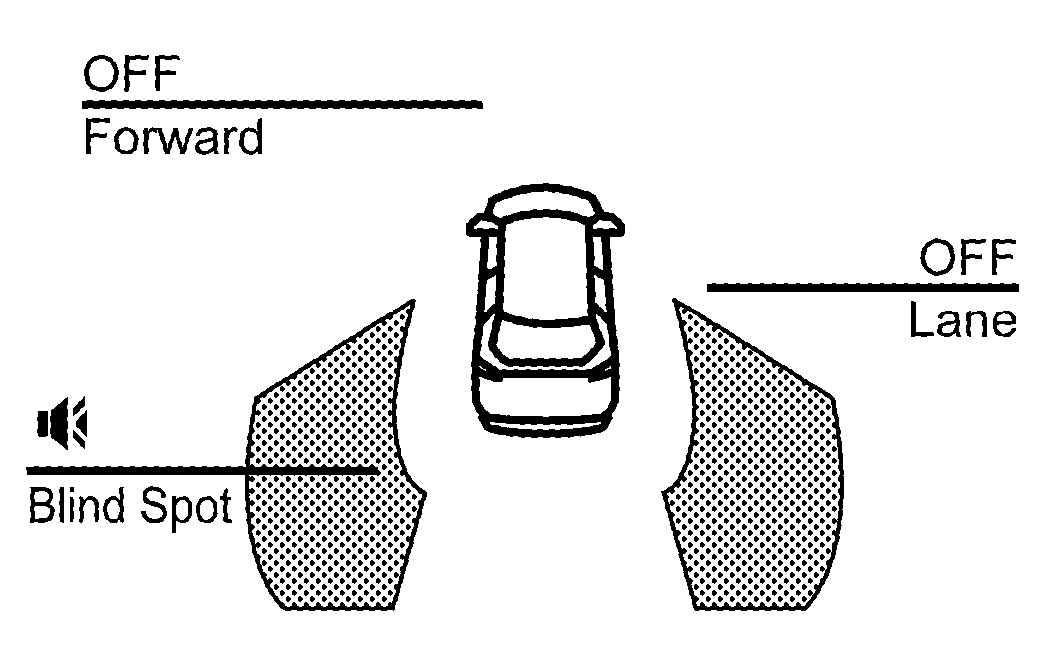

BSW ON	Vehicle speed is less than approx. 29 km/h (18 MPH)			-	BSW system indicator : White Speaker icon : White Courtesy of NISSAN	OFF
	Vehicle speed is approx. 29 km/h (18 MPH) or more	Vehicle closes to lane marker	Turn signal is OFF or ON (Opposite to the deviate side)	-	Yellow (Blink) Courtesy of NISSAN	ON
			Turn signal is OFF or ON (Opposite to the deviate side)	-	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN	ON
			Turn signal is ON (Deviate side)	-	BSW system indicator : White Speaker icon : White Courtesy of NISSAN	OFF

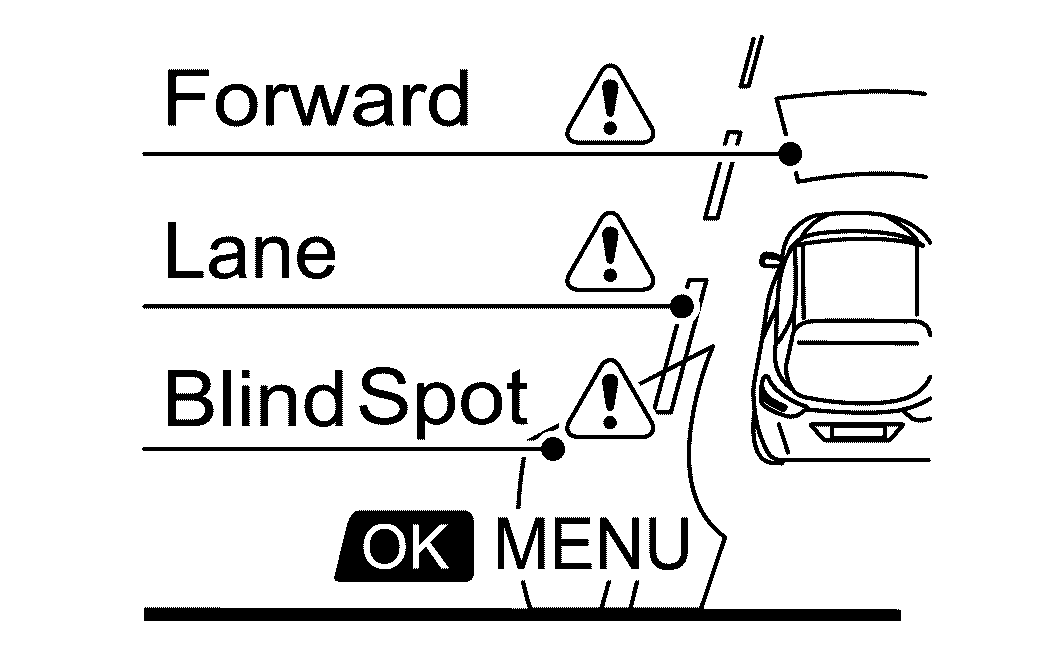

BSW is malfunction				The BSW system is automatically canceled. NOTE: The system operates if the ignition switch is turned OFF→ON after the condition improves	BSW system indicator : White. Exclamation icon: Yellow Courtesy of NISSAN	OFF
BSW is malfunction					Malfunction	OFF
Front camera unit high temperature				The BSW system is automatically canceled. NOTE: The system operates if the ignition switch is turned OFF→ON after the condition improves	BSW system indicator : White. Exclamation icon : Yellow (Blink) Courtesy of NISSAN	OFF
Front camera unit high temperature					Unavailable/High Cabin Temperature	OFF

7 inch Information Display

Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer
BSW OFF				-	OFF	Courtesy of NISSAN	OFF
BSW ON	Vehicle speed is less than approx. 29 km/h (18 MPH)			-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN	OFF
		Vehicle is not detected		-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN	OFF
	Vehicle is detected	Turn signal is OFF	-	ON	BSW system indicator : White Speaker icon : White Courtesy of NISSAN	OFF
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN	Short continuous beeps
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN	Short continuous beeps
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN	OFF
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
Time shown in the figure is approximate time.

INSPECTION END
