Exploded View

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

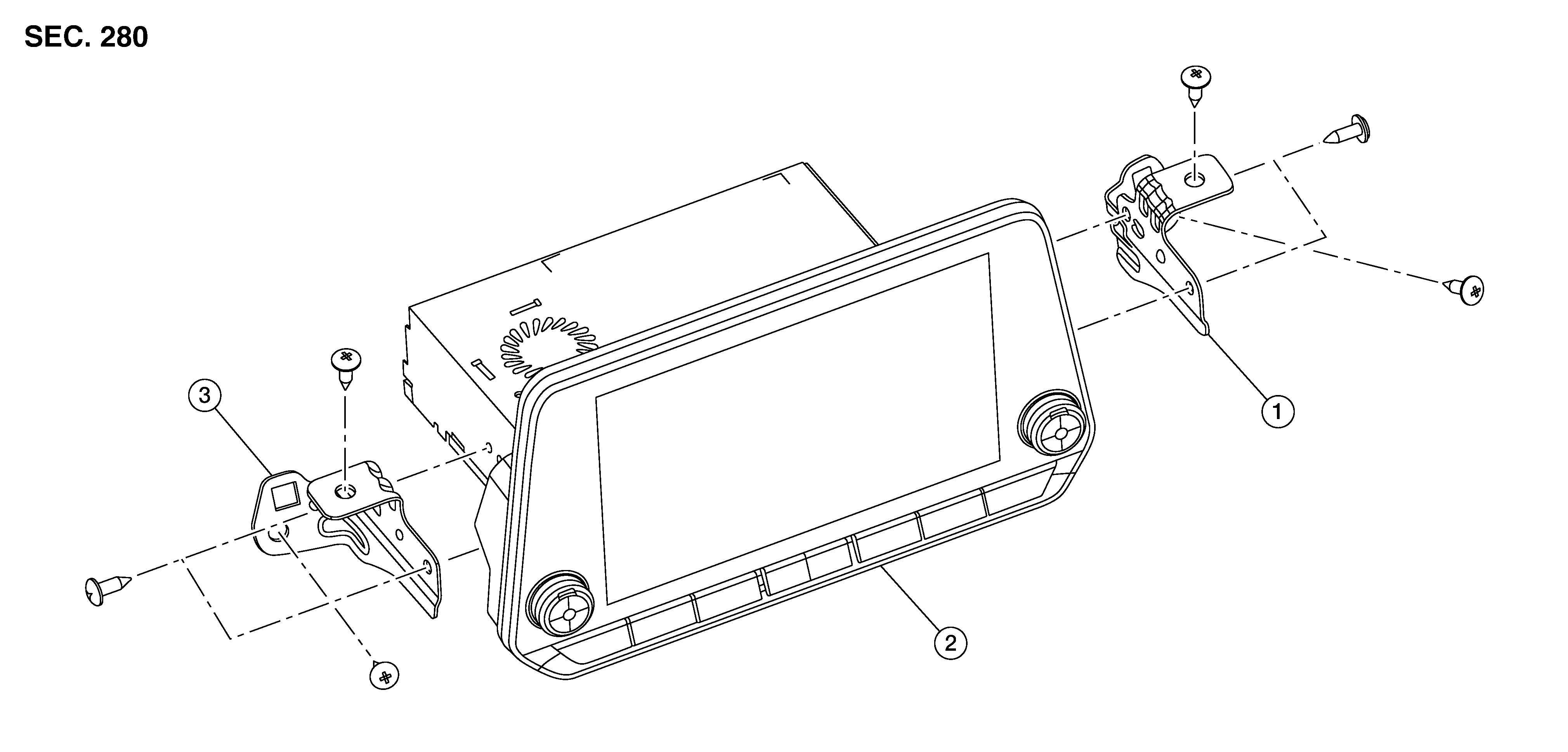

GNSDB47553Courtesy of NISSAN
1. AV control unit bracket (LH) 2. AV control unit 3. AV control unit bracket (RH)
