System Description

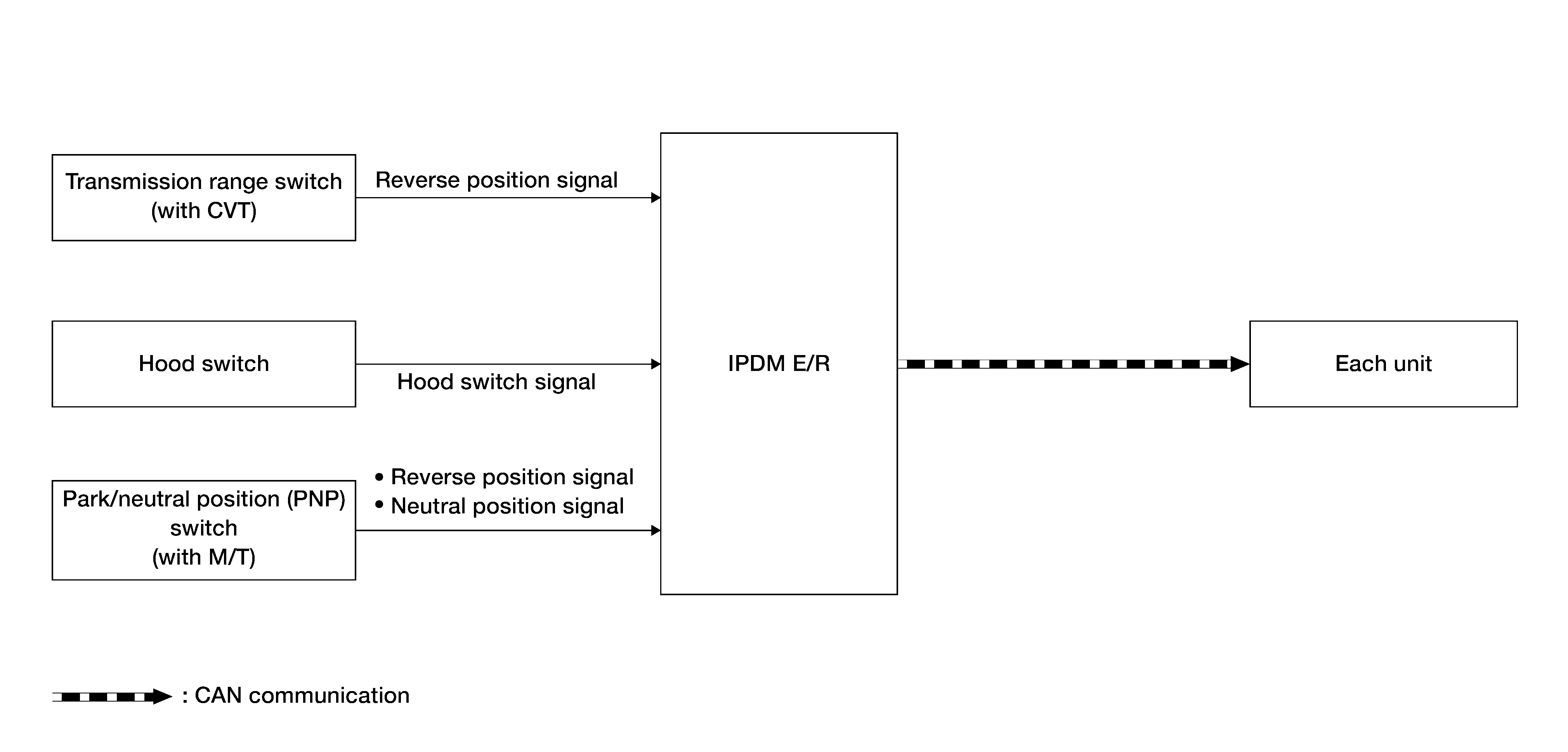

SYSTEM DIAGRAM
Description
| Component | Function |
|---|---|
| Transmission range switch 1 | Transmits the reverse position signal to the IPDM E/R. |
| Park/neutral (PNP) switch 2 | Transmits the reverse position signal to the IPDM E/R. |
| Hood switch | Detects the hood condition (open or close), and transmits the hood switch signal to the IPDM E/R. |
| IPDM E/R | The IPDM E/R has the signal transmission function that transmits each input signal to each unit. |
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Reverse position signal | Transmission range switch 1 | Each unit (CAN) | Inputs the reverse position signal and transmits it via CAN communication. |
| Reverse position signal | Park/neutral (PNP) switch 2 | Each unit (CAN) | Inputs the reverse position signal and transmits it via CAN communication. |
| Neutral position signal | Park/neutral (PNP) switch 2 | Each unit (CAN) | Inputs the neutral position signal and transmits it via CAN communication. |
| Hood switch signal | Hood switch | Each unit (CAN) | Inputs the hood switch signal and transmits it via CAN communication. |
1: CVT models
2: MT models
