Sentra S
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (IPDM E/R)
>>
Removal And Installation
>>
IPDM E/R
>>
Exploded View

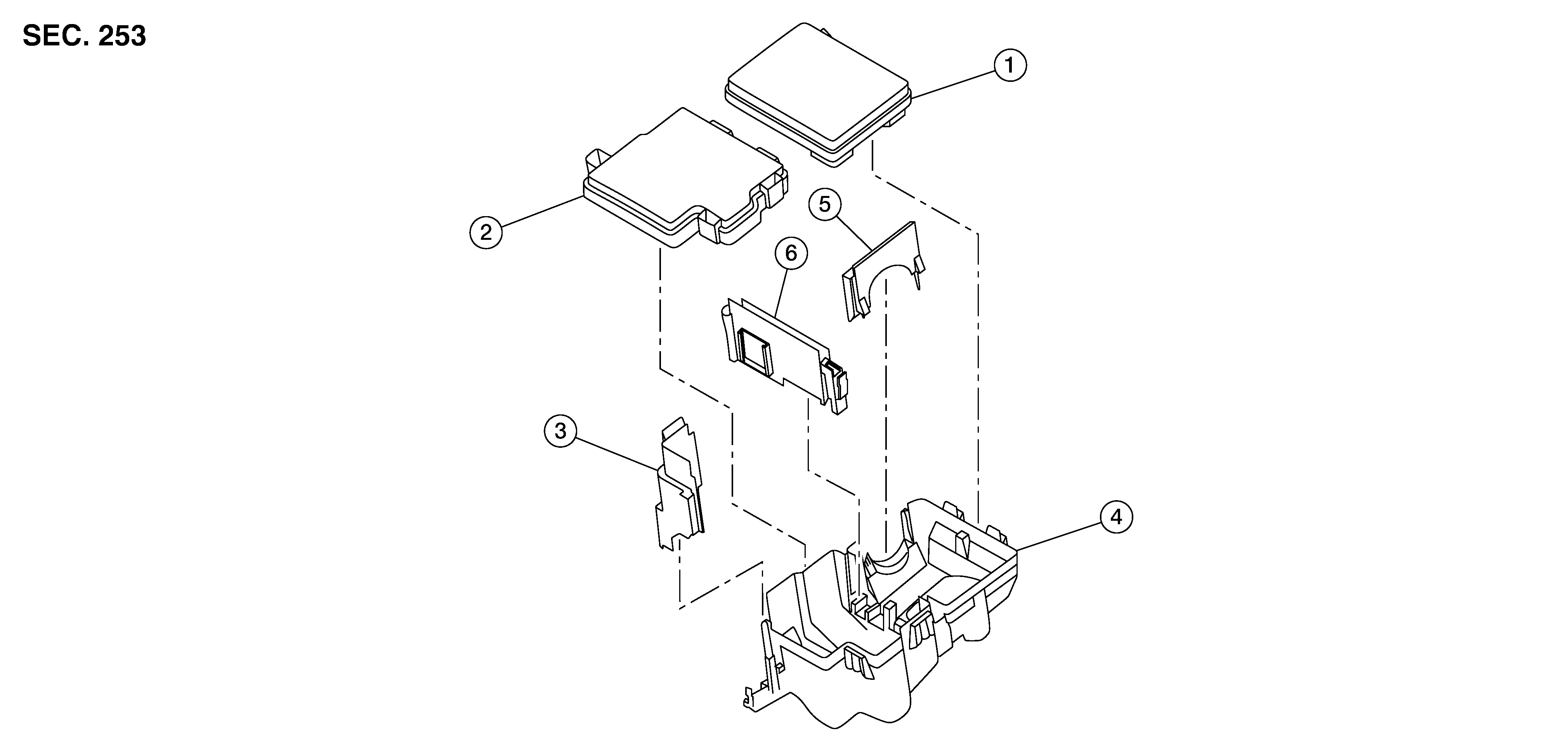

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
IPDM E/R
2.
IPDM E/R cover A
3.
IPDM E/R harness cover B
4.
IPDM E/R case
5.
IPDM E/R harness cover C
6.
IPDM E/R harness cover D
Courtesy of NISSAN NORTH AMERICA, INC.
