System Description

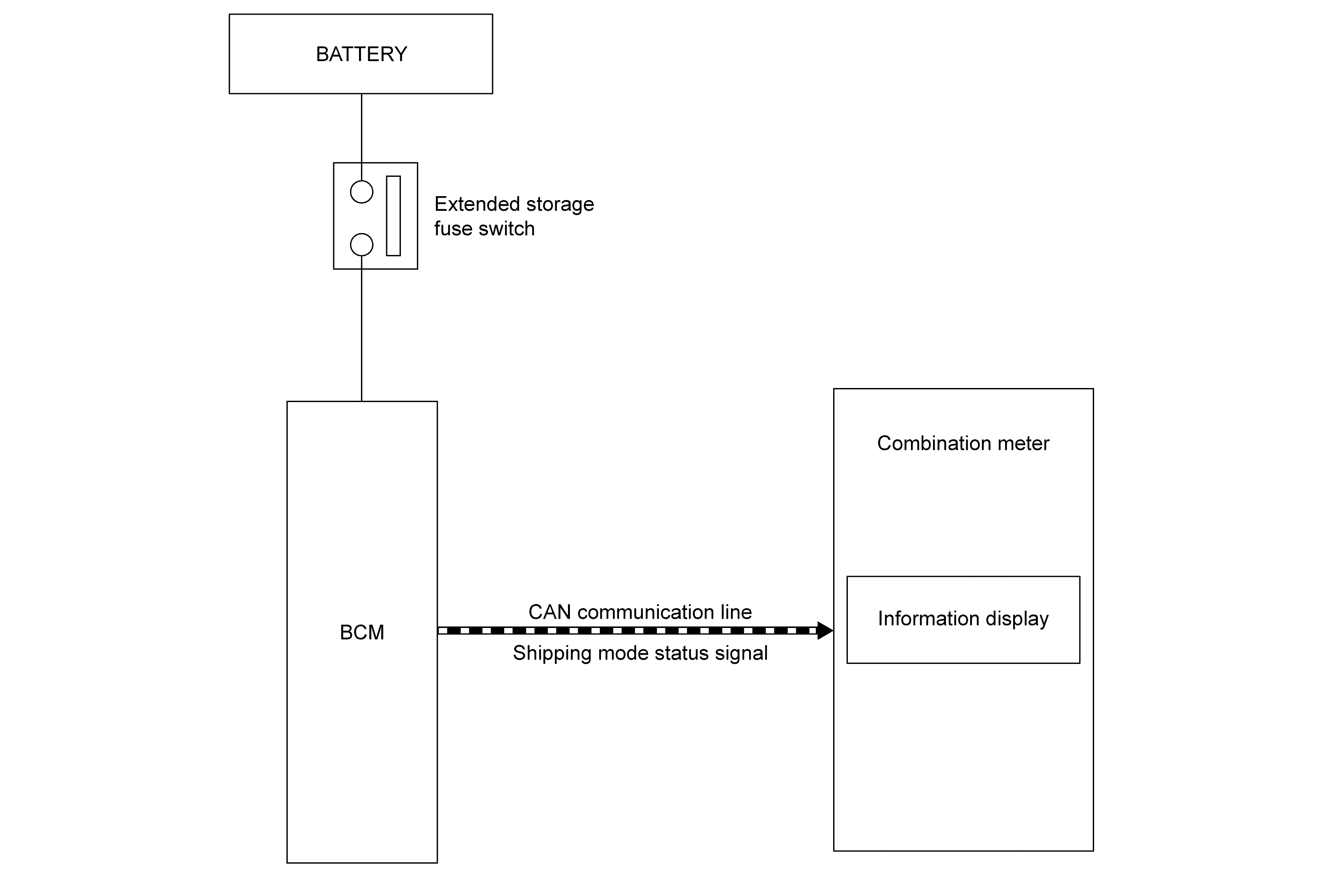

SYSTEM DIAGRAM
DESCRIPTION
- BCM switches the status (shipping mode or normal mode) by itself according to the extended storage fuse switch condition, and transmits shipping mode status signal to combination meter and each unit via CAN communication.
- When shipping mode function operates, each control unit does not detect DTCs.
- BCM control functions are limited in shipping mode. Refer to Description .
- The combination meter displays extended storage fuse warning message on the information display, when BCM is in shipping mode.
