Exploded View

JAPAN PRODUCTION MODELS

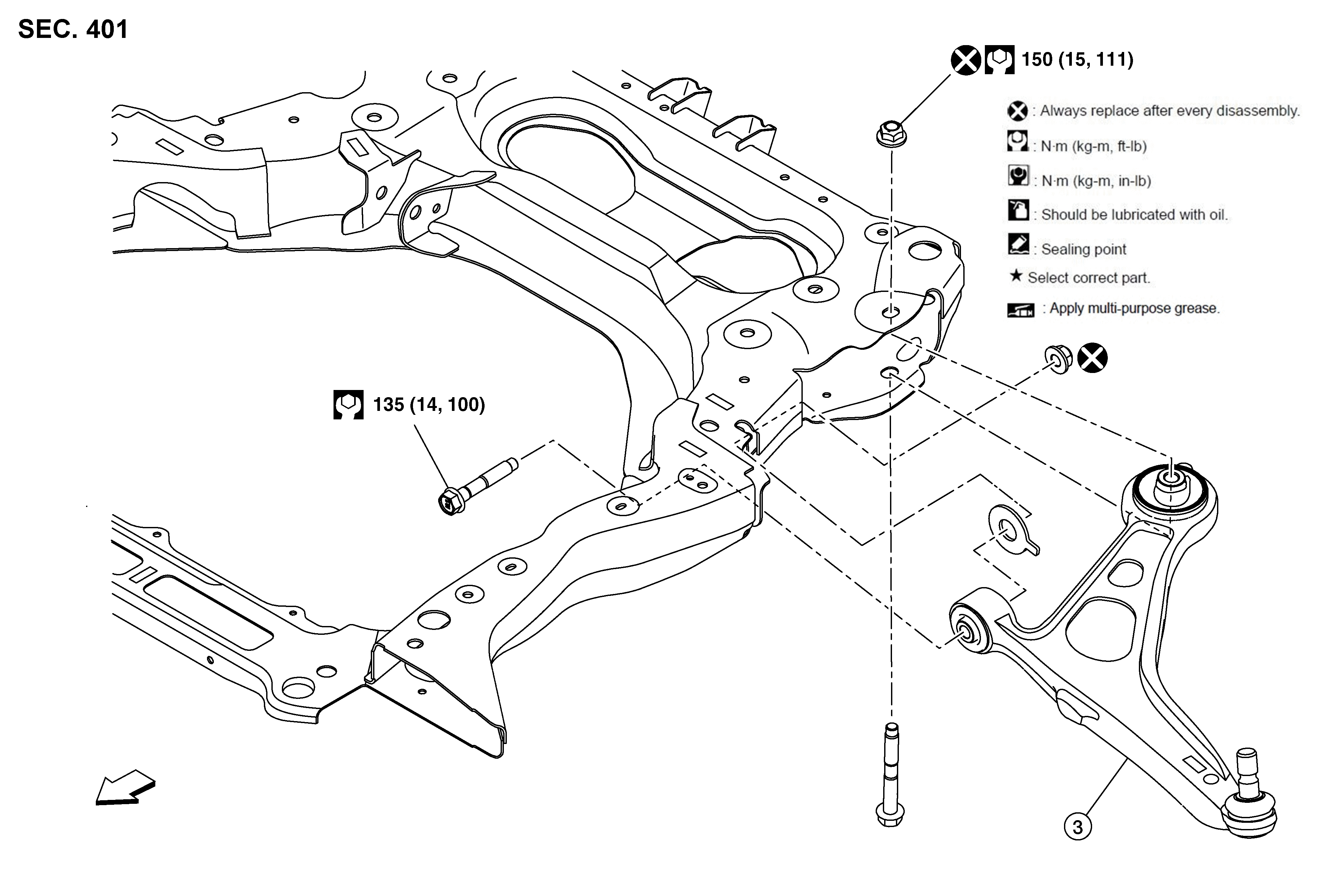

Fig 1: Transverse Link With Torque Specifications - Japan Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front suspension member	2.	Bush	3.	Transverse link
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.

NORTH AMERICA PRODUCTION MODELS

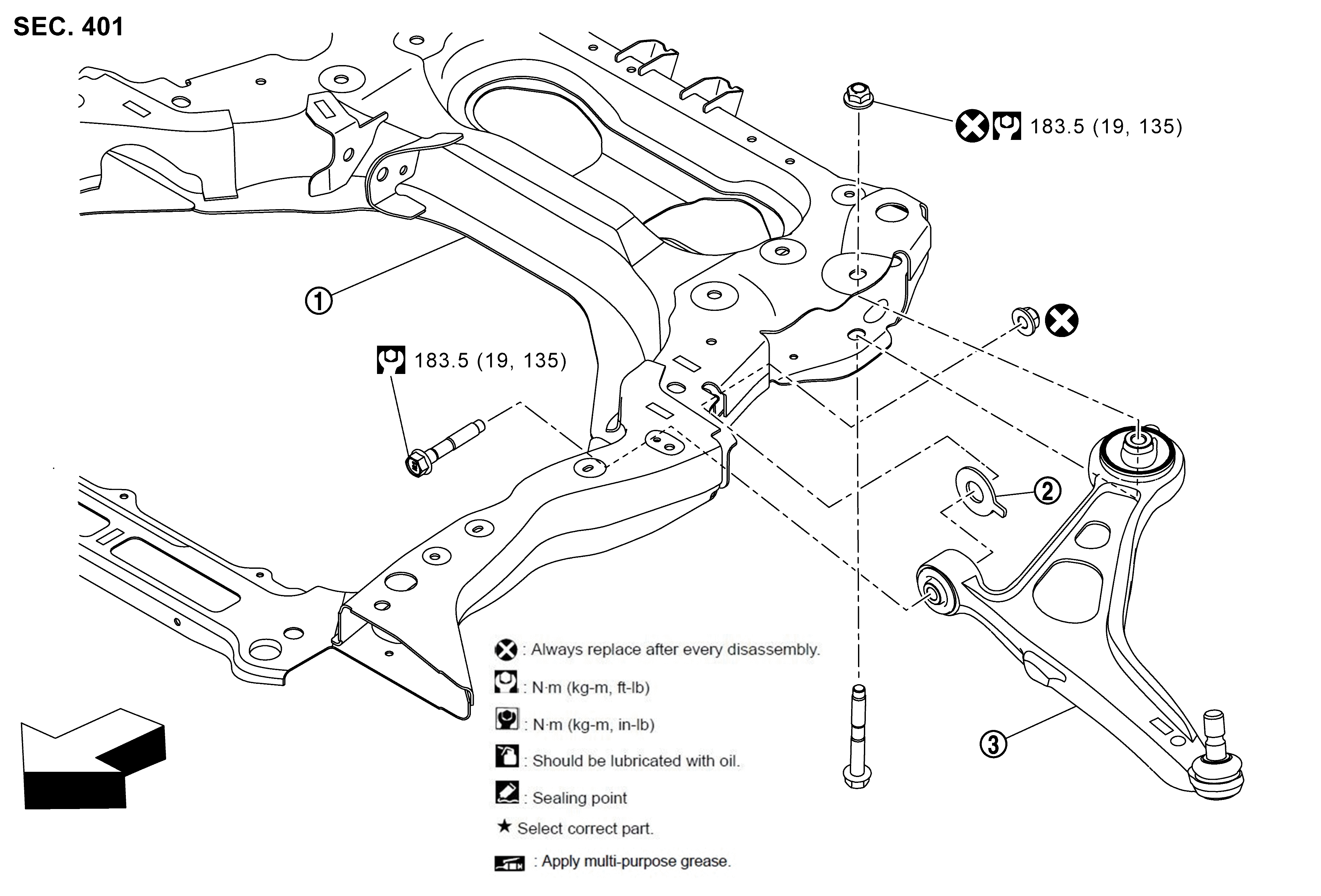

Fig 2: Transverse Link With Torque Specifications - North America Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front suspension member	2.	Bush	3.	Transverse link
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.
