Exploded View

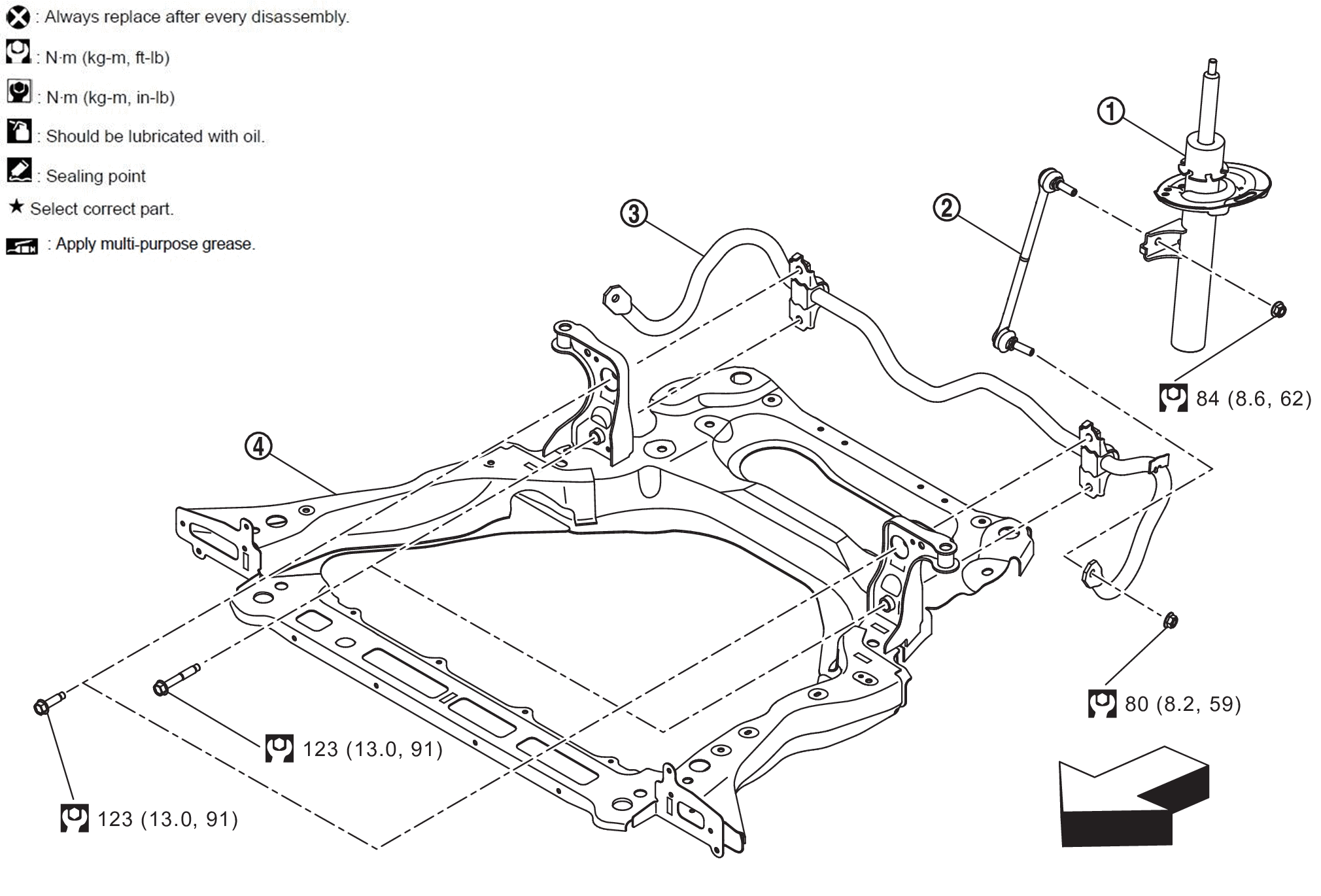

Fig 1: Front Stabilizer With Torque Specifications
GNSDB131805Courtesy of NISSAN NORTH AMERICA, INC.
1. Strut 2. Stabilizer connecting rod 3. Stabilizer bar
4. Front suspension member
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
