Exploded View

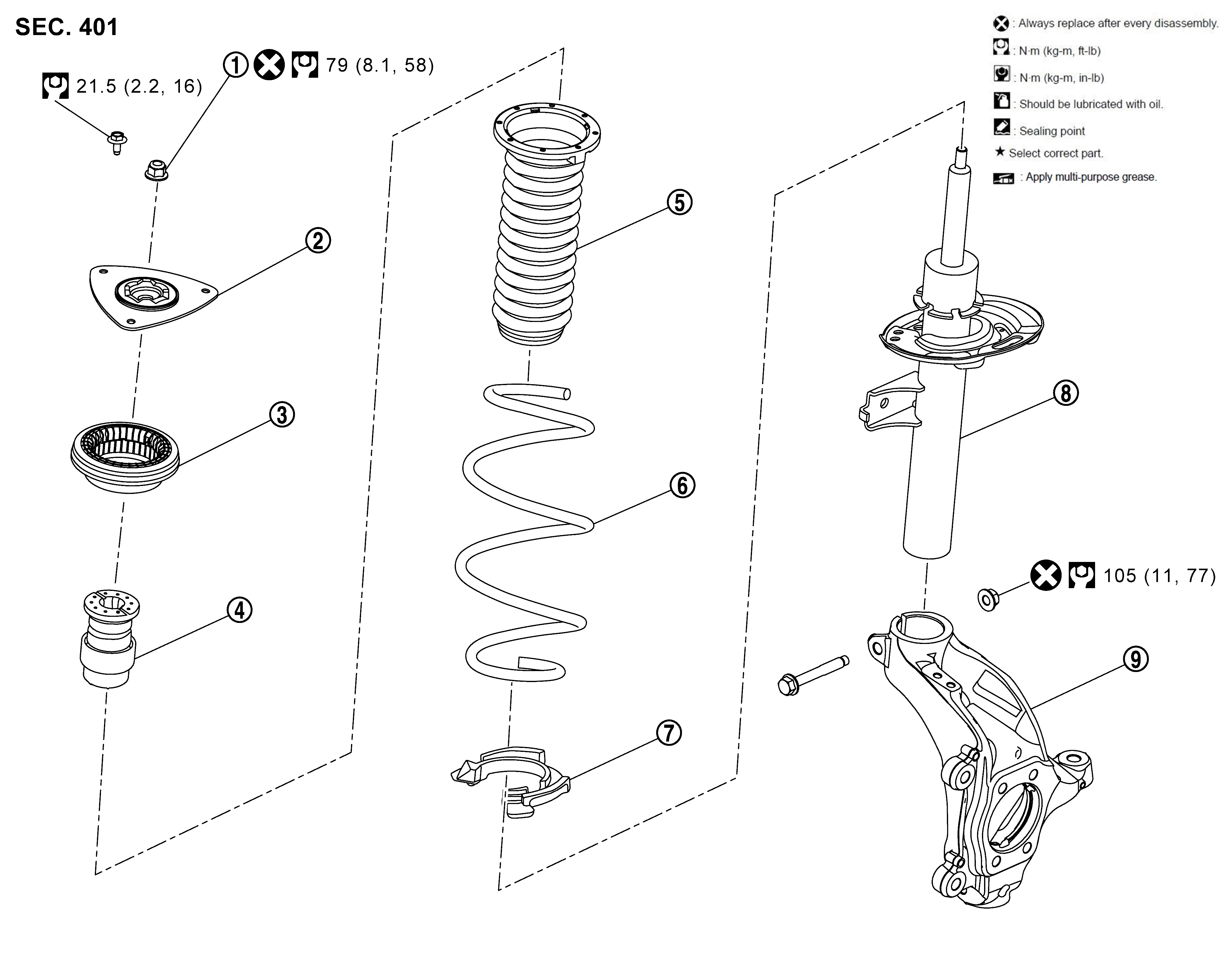

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSDB132053Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Piston rod lock nut SYMBOL Mounting insulator SYMBOL Mounting bearing
SYMBOL Bound bumper SYMBOL Upper rubber seat SYMBOL Coil spring
SYMBOL Lower rubber seat SYMBOL Strut SYMBOL Steering knuckle
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
