Exploded View

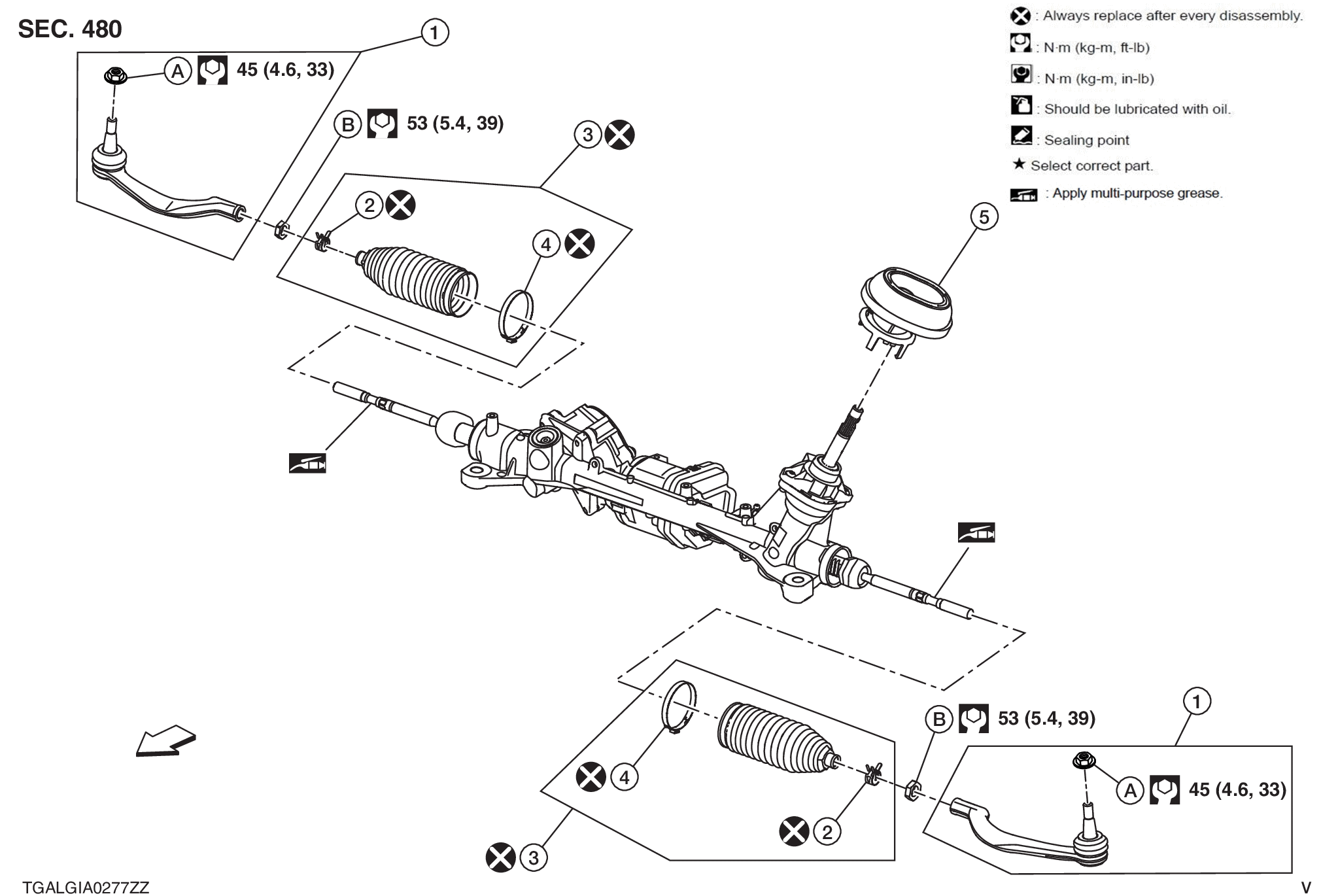

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB132583Courtesy of NISSAN NORTH AMERICA, INC.
1. Outer socket 2. Boot clamp (small diameter) 3. Boot
4. Boot clamp (large diameter) 5. Hole cover seal A. Outer socket lock nut.
B. Inner socket lock nut.
CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.
