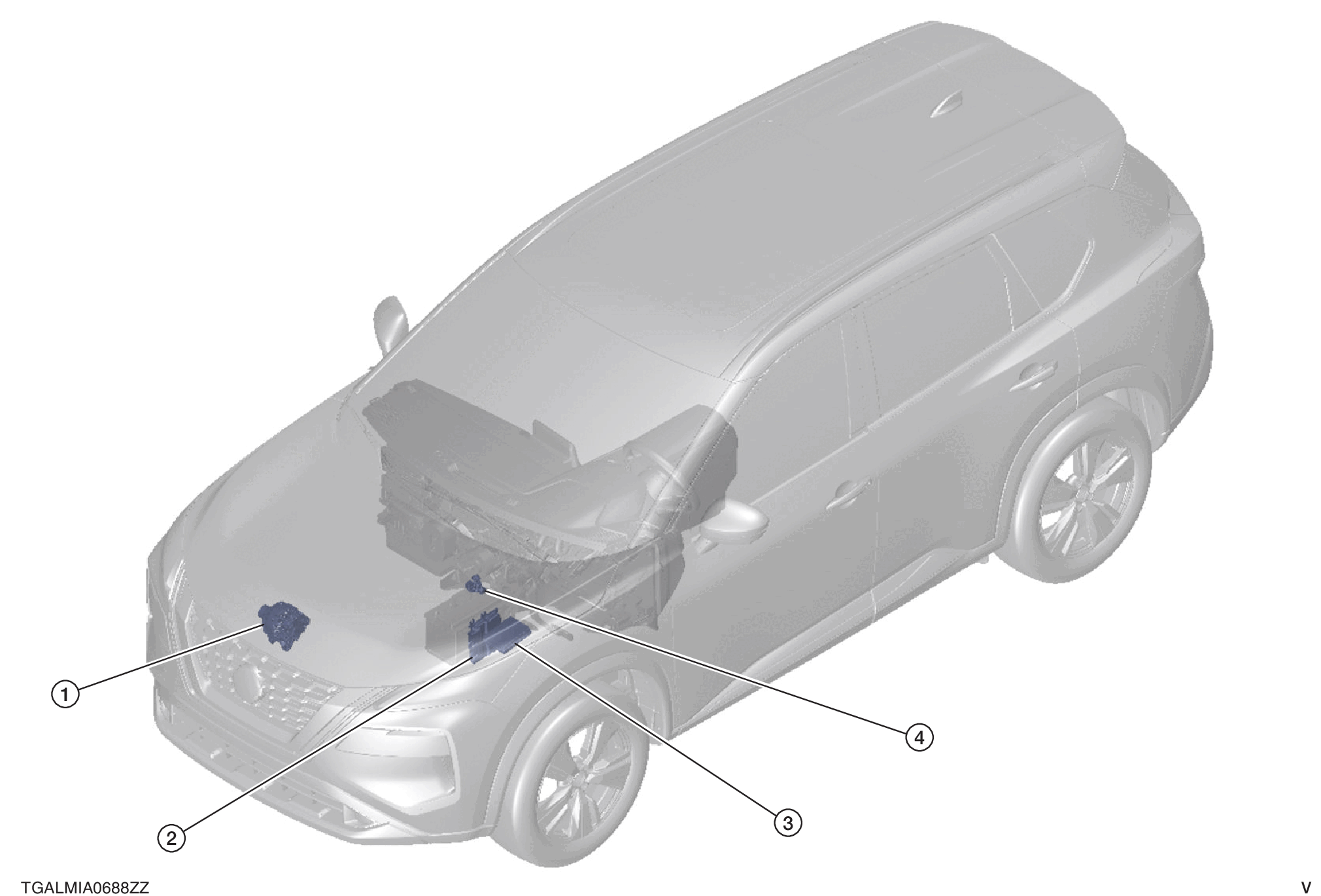

| 1. |
Sub starter and generator |
Refer to |
| 2. |
ECM (Engine Control Module |
The ECM transmits the generator voltage request signal received from the IPDM E/R to the generator via LIN communication signal. Refer to Component Location
for detailed component location. |
| 3. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
The IPDM E/R sends the generator voltage request signal to the ECM via CAN communication. Refer to Component Location
for detailed component location. |
| 4. |
Battery current sensor (with battery temperature sensor) |
Refer to 12 V Battery Current Sensor . |
