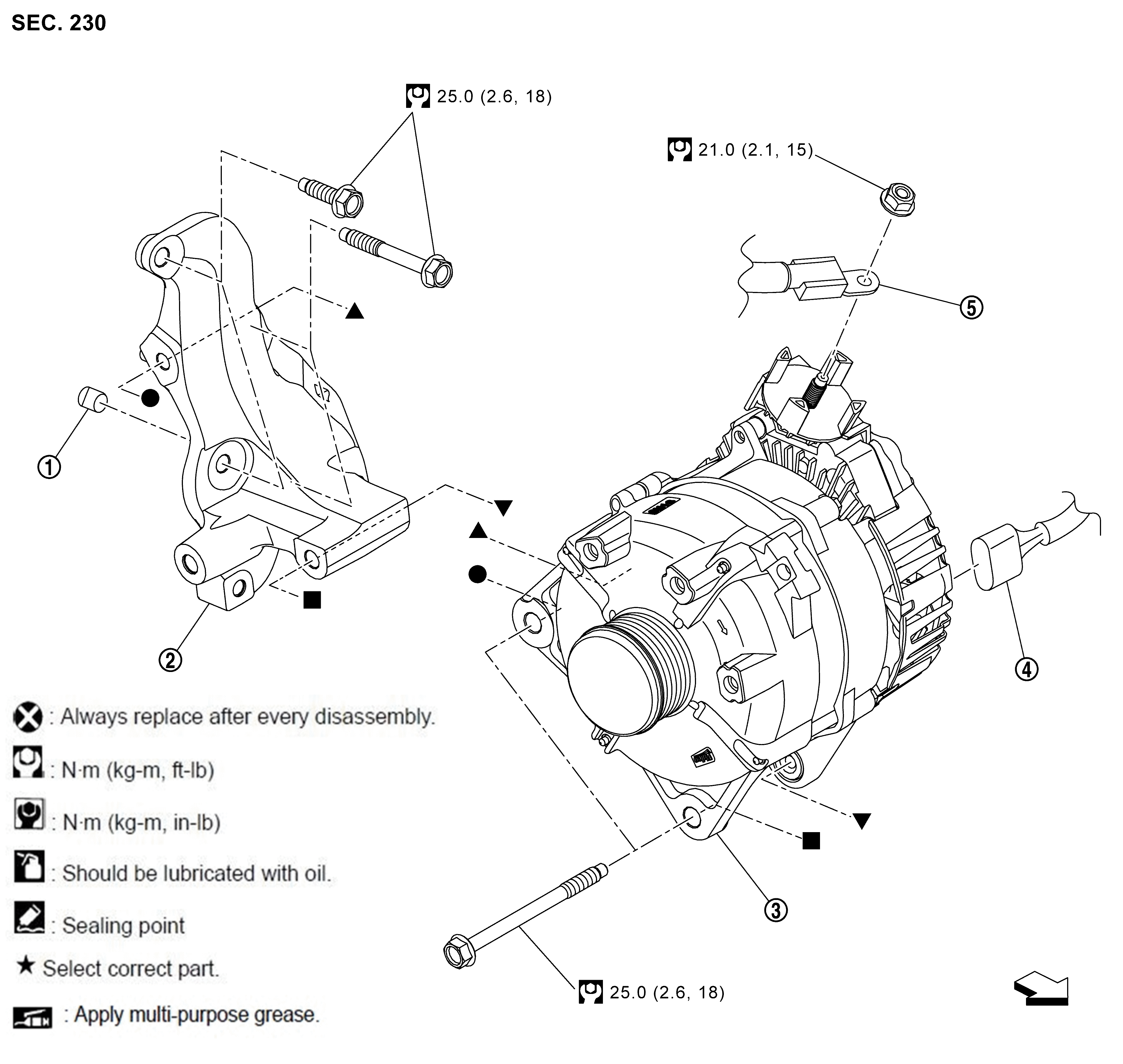

| 1. |
Collar |
2. |
Sub starter, generator and compressor bracket |
3. |
Sub starter and generator |
| 4. |
Sub starter and generator harness connector |
5. |
"B" terminal |
 |
: Vehicle front |
,
: Indicates that the part is connected at points with same symbol in actual vehicle. |
