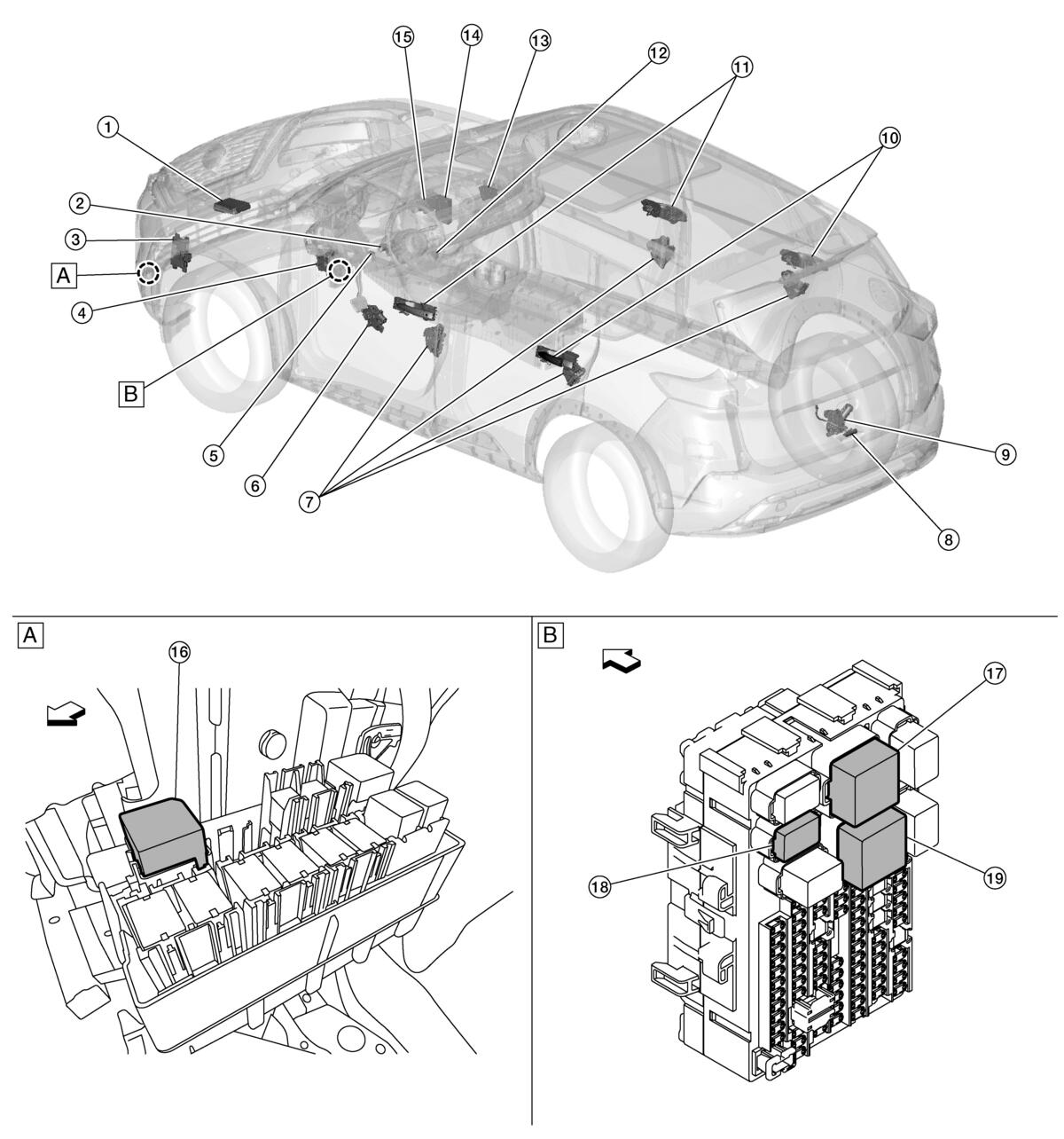

| 1 |
IPDM E/R Refer to Component Location
for detailed installation location. |
2 |
Combination switch (Lighting and turn signal switch) |
3 |
TCM Refer to Component Location
for detailed installation location. |
| 4 |
BCM Refer to Component Location
for detailed installation location. |
5 |
Stop lamp switch |
6 |
Front power window motor LH |
| 7 |
Door lock assembly (Door switch) |
8 |
Back door opener switch (request switch) |
9 |
Back door lock assembly (door switch) |
| 10 |
Rear door outside handle assembly (Rear door request switch) |
11 |
Front door outside handle assembly (Front door request switch) |
12 |
Push-button ignition switch |
| 13 |
Intelligent Key unit Refer to Component Location
for detailed installation location. |
14 |
TCU Refer to Component Location
for detailed installation location. |
15 |
ABS actuator and electric unit (control unit) Refer to Component Location
for detailed installation location. |
| 16 |
Ignition relay-3 |
17 |
Ignition relay-2 |
18 |
Ignition relay-1 |
| 19 |
Accessory relay |
| A. |
Relay holder |
B. |
Fuse block (J/B) |
|
|
 |
Vehicle front |
