Removal and Installation

REMOVAL

Remove steering angle sensor. Refer to Removal and Installation .
Disconnect harness connector from combination switch.

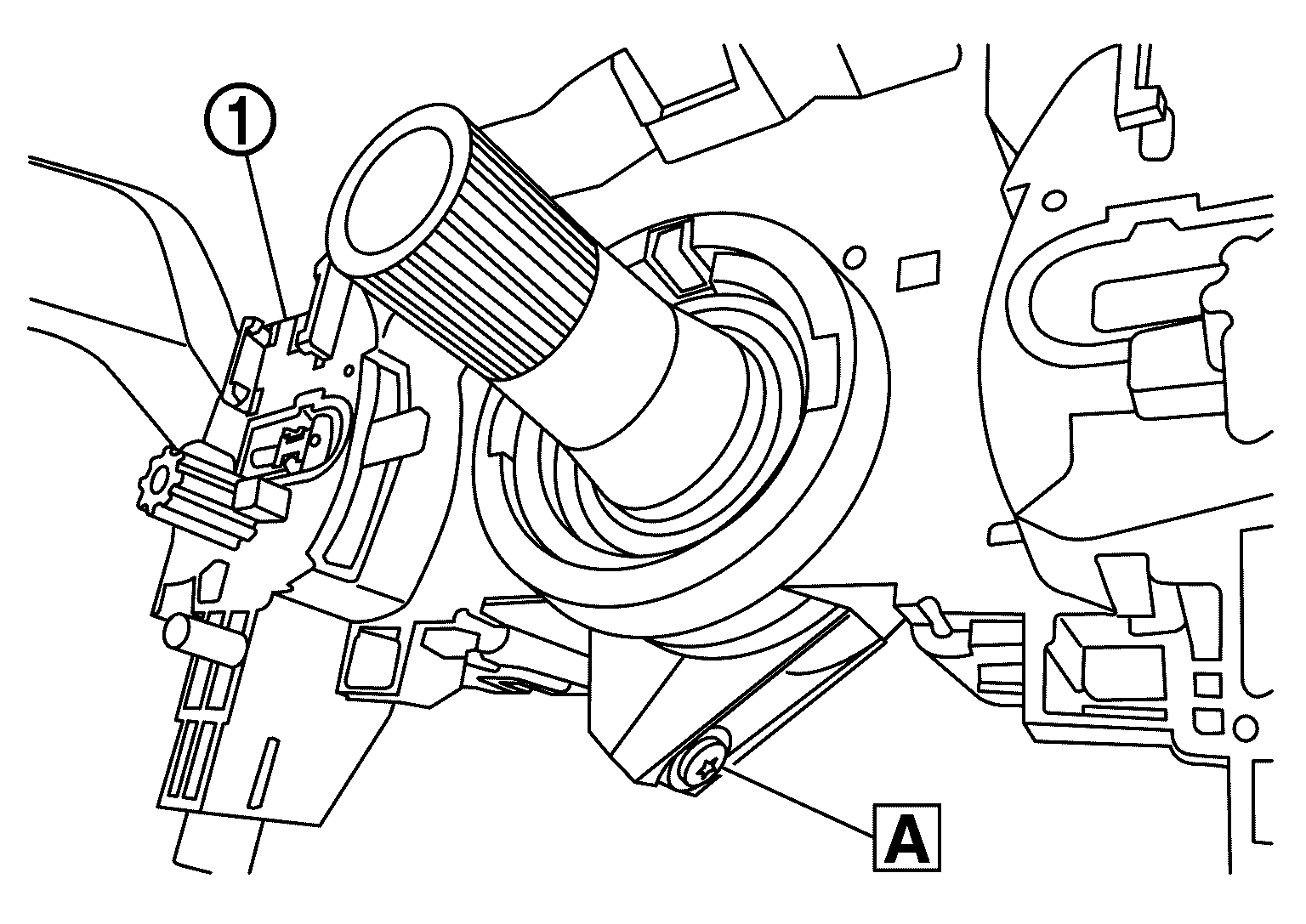

Remove the combination switch mounting screw .

Courtesy of NISSAN NORTH AMERICA, INC.

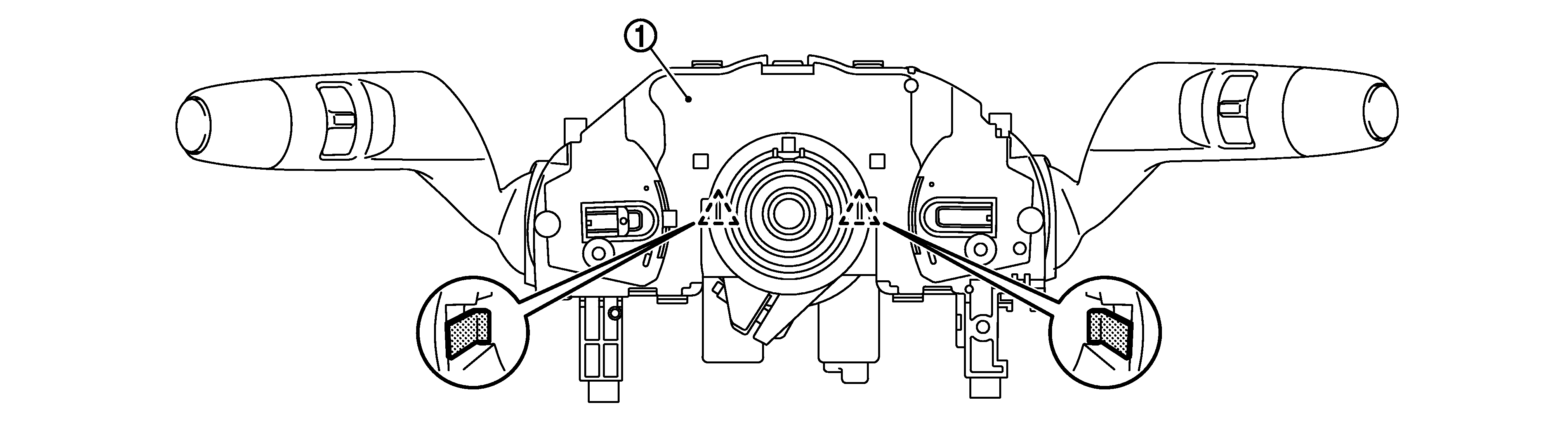

Pull out the combination switch by moving it alternately on the right and left side.
CAUTION:
Never deformation and damage the pawls.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never reuse combination switch. Always replace it with a new one when it is removed.
Visually check the pawls for deformation and damage during installation. Replace with new ones if necessary.

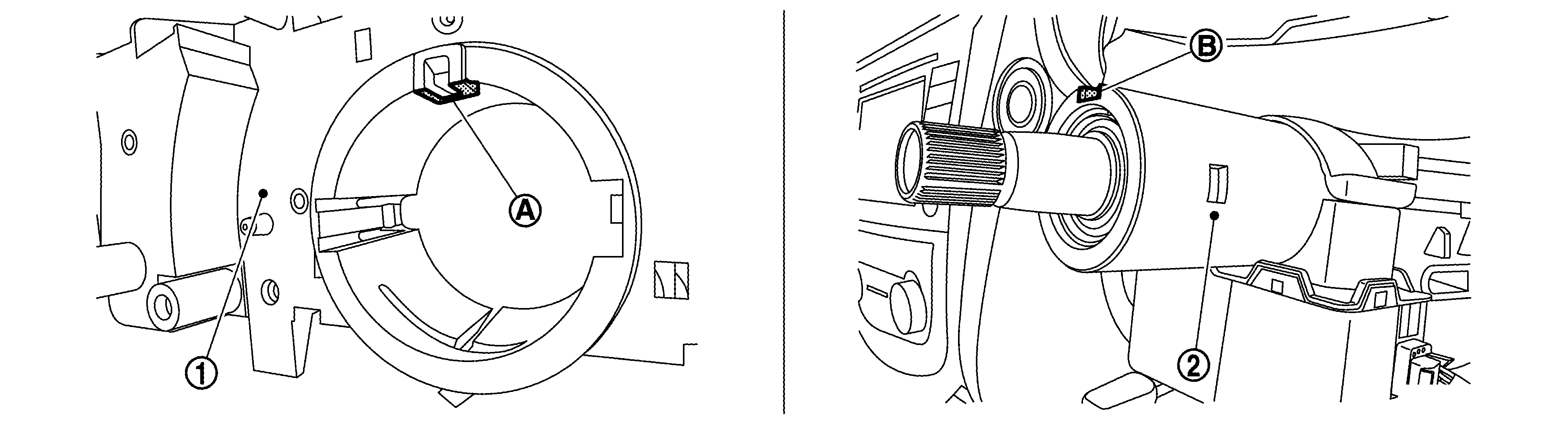

Insert the combination switch so that the protrusion

of the combination switch

and the cut-out

of the steering column

match together.

Courtesy of NISSAN NORTH AMERICA, INC.
