Wheel Sensor and Sensor Rotor

FUNCTIONS WITHIN THE SYSTEM

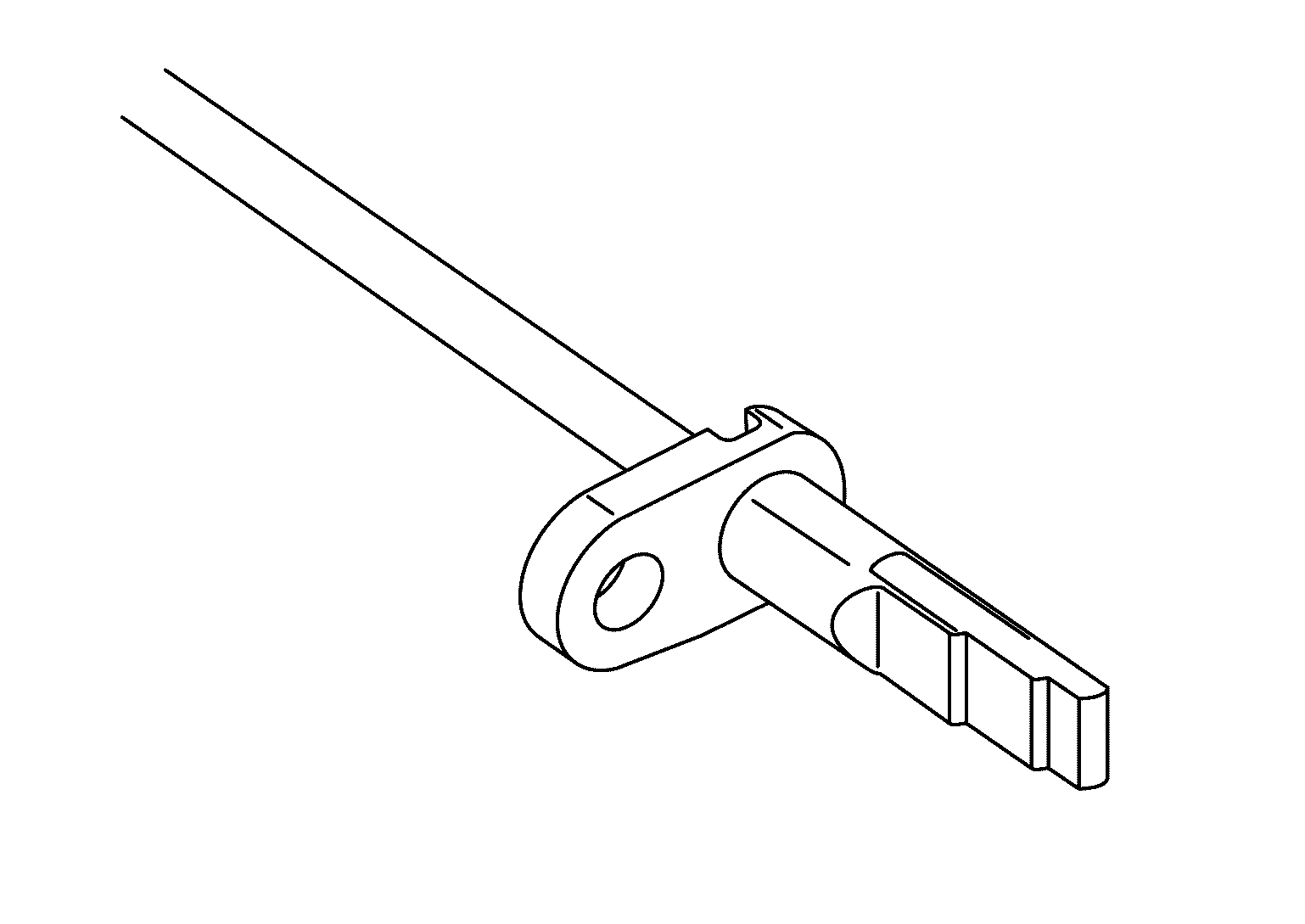

Wheel sensor and sensor rotor detect each wheel speed. And wheel sensor inputs wheel speed signal to ABS actuator and electric unit (control unit).

Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

The wheel sensor reads a magnetic field change.

INDIVIDUAL OPERATION

Downsizing and weight reduction is aimed for. IC for detection portion and magnet for sensor rotor are adopted.

Courtesy of NISSAN NORTH AMERICA, INC.
Power supply is supplied to detection portion so that magnetic field line is read. Magnetic field that is detected is converted to current signal.
When sensor rotor rotates, magnetic field changes. Magnetic field change is converted to current signals (rectangular wave) and is transmitted to ABS actuator and electric unit (control unit). Change of magnetic field is proportional to wheel speed.

COMPONENT LOCATION
