Component Inspection

1. Ignition switch OFF.
2. Remove power window relay.

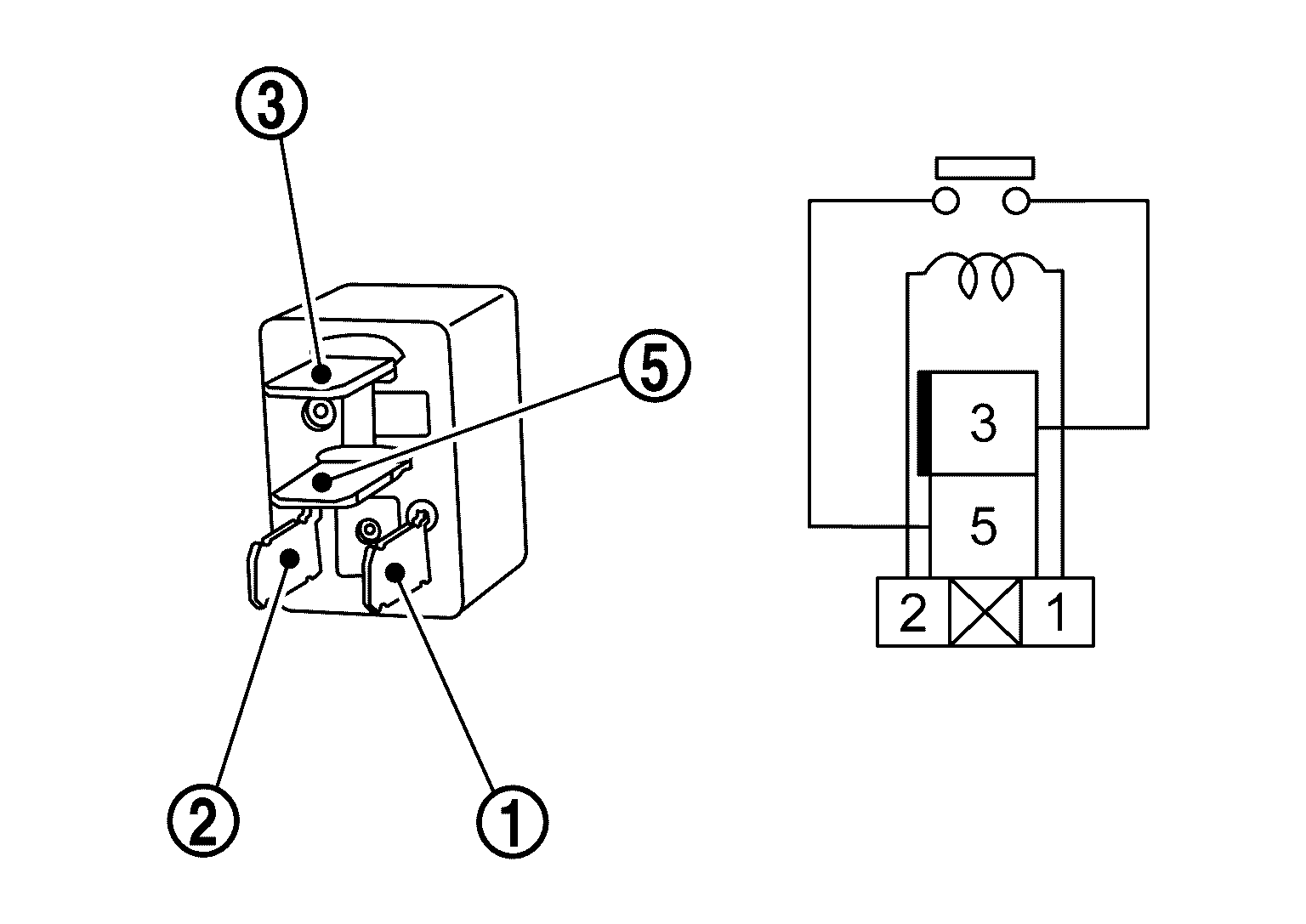

3. Check continuity between power window relay terminals.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Power window relay		Condition	Continuity
   Terminals
   		12 V direct current supply between terminals and .	Yes
   		No current supply	No

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace power window relay.
