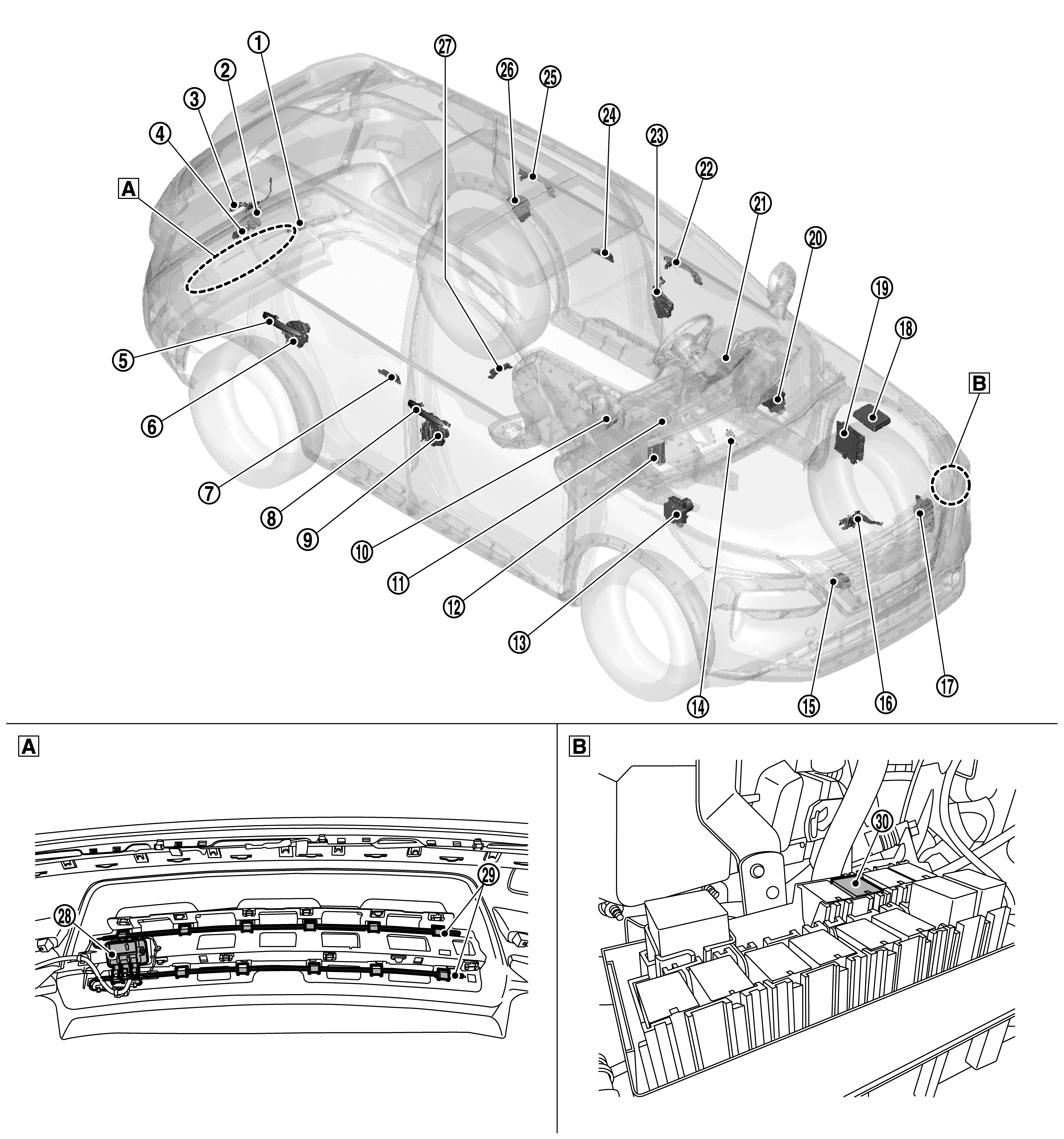

Component Location
| 1. | Inside key antenna *1 | 2. | Back door lock assembly (back door switch) | 3. | Back door opener switch (request switch) |
| 4. | Outside key antenna (rear bumper) | 5. | Rear door request switch RH | 6. | Rear door lock assembly RH (door switch) |
| 7. | Outside key antenna (rear door RH) | 8. | Front door request switch RH | 9. | Front door lock assembly RH (door switch) |
| 10. | Intelligent Key unit. Refer to Component Location . | 11. | Push-button ignition switch | 12. | TCU. Refer to Component Location . |
| 13. | ABS actuator and electric unit (control unit). Refer to Component Location . | 14. | Stop lamp switch | 15. | Horn |
| 16. | Hood switch | 17. | TCM. Refer to Component Location . | 18. | IPDM E/R. Refer to Component Location . |
| 19. | ECM. Refer to Component Location . | 20. | BCM. Refer to Component Location . | 21. | Combination meter |
| 22. | Front door request switch LH | 23. | Front door lock assembly LH (door switch) | 24. | Outside key antenna (rear door LH) |
| 25. | Rear door request switch LH | 26. | Rear door lock assembly LH (door switch) | 27. | Inside key antenna *2 |
| 28. | Hands free sensor control unit. Refer to Component Location . | 29. | Hands free sensor | 30. | Starter cut relay |
| A | View of back side of rear bumper fascia assembly | B | View with front bumper fascia assembly removed | ||
*1: Japan production
*2: USA production
