Reference Value

VALUES ON THE DIAGNOSIS TOOL

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, Refer to CONSULT display items.
Monitor Item Condition Value/Status
REVERSE SIGNAL Ignition switch ON R position On
Other than R position Off
CAMERA SWITCH SIGNAL Ignition switch ON When camera switch signal is input On
Other than the above Off
CAMERA OFF SIGNAL Ignition switch ON When camera OFF signal is input On
Other than the above Off
REAR CAMERA IMAGE SIGNAL Ignition switch ON When rear camera image signal input status is normal OK
When rear view camera image signal input status is not normal NG
R-CAMERA COMM STATUS Ignition switch ON When communication status with rear camera is normal OK
When communication status with rear camera is not normal NG
R-CAMERA COMM LINE Ignition switch ON When communication line with rear camera is normal OK
When communication line with rear camera is not normal NG
F-CAMERA IMAGE SIGNAL Ignition switch ON When front camera image signal input status is normal OK
When front camera image signal input status is not normal NG
F-CAMERA COMM STATUS Ignition switch ON When communication status with front camera is normal OK
When communication status with front camera is not normal NG
F-CAMERA COMM LINE Ignition switch ON When communication line with front camera is normal OK
When communication line with front camera is not normal NG
Left camera image signal Ignition switch ON When side camera LH image signal input status is normal OK
When side camera LH image signal input status is not normal NG
Left camera comm status Ignition switch ON When communication status with side camera LH is normal OK
When communication status with side camera LH is not normal NG
Left camera line Ignition switch ON When communication line with side camera LH is normal OK
When communication line with side camera LH is not normal NG
Right camera image signal Ignition switch ON When side camera RH image signal input status is normal OK
When side camera RH image signal input status is not normal NG
Right camera comm status Ignition switch ON When communication status with side camera RH is normal OK
When communication status with side camera RH is not normal NG
Right camera line Ignition switch ON When communication line with side camera RH is normal OK
When communication line with side camera RH is not normal NG
Image output [On/Off] Ignition switch ON When camera image displayed On
When camera image not displayed Off
Power supply state Ignition switch ON State 6
Vehicle speed [KPH] While driving Input value of vehicle speed signal

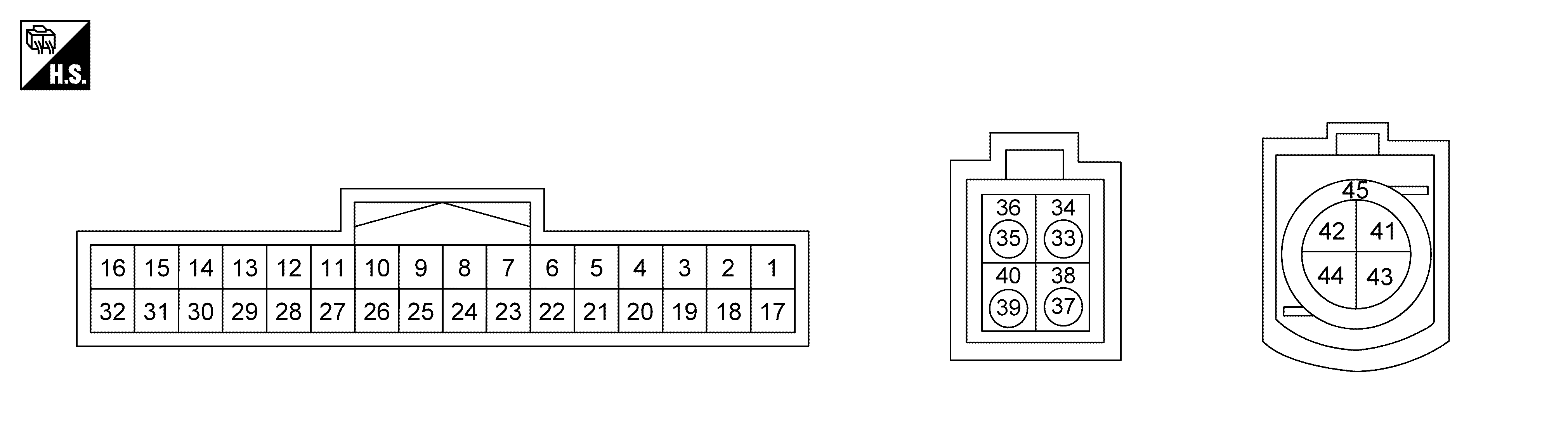

TERMINAL LAYOUT

GNSDB131020Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES

Terminal (Wire color) Description Condition Reference value (Approx.)
+ - Signal name Input/Output
3 (BR) - CAN-H Input/Output - -
5 (Y) - CAN-L Input/Output - -
6 (BR) - CAN-H Input/Output - -
16 (B) Ground Ground - [Ignition switch ON] 0 V
17 (LA/G) 16 (B) ACC power supply Input [Ignition switch ACC] Battery voltage
20 (P) - CAN-L Input/Output - -
21 (BR) - CAN-H Input/Output - -
23 (W) - CAN-L Input/Output - -
33 (B) 34 LVDS (Side camera LH) Input/Output - -
34 - Shield - - -
35 (B) 36 LVDS (Side camera RH) Input/Output - -
36 - Shield - - -
37 (B) 38 LVDS (Rear camera) Input/Output - -
38 - Shield - - -
39 (B) 40 LVDS (Front camera) Input/Output - -
40 - Shield - - -
42 (R) - LVDS (-) - - -
43 (L) 42 (R) LVDS (+) Input/Output - -
45 - Shield - - -
