Drive Mode Select Switch

FUNCTIONS WITHIN THE SYSTEM

When drive mode select switch is operated, driving mode is changed for each system.

• 2WD models

  Courtesy of NISSAN NORTH AMERICA, INC.

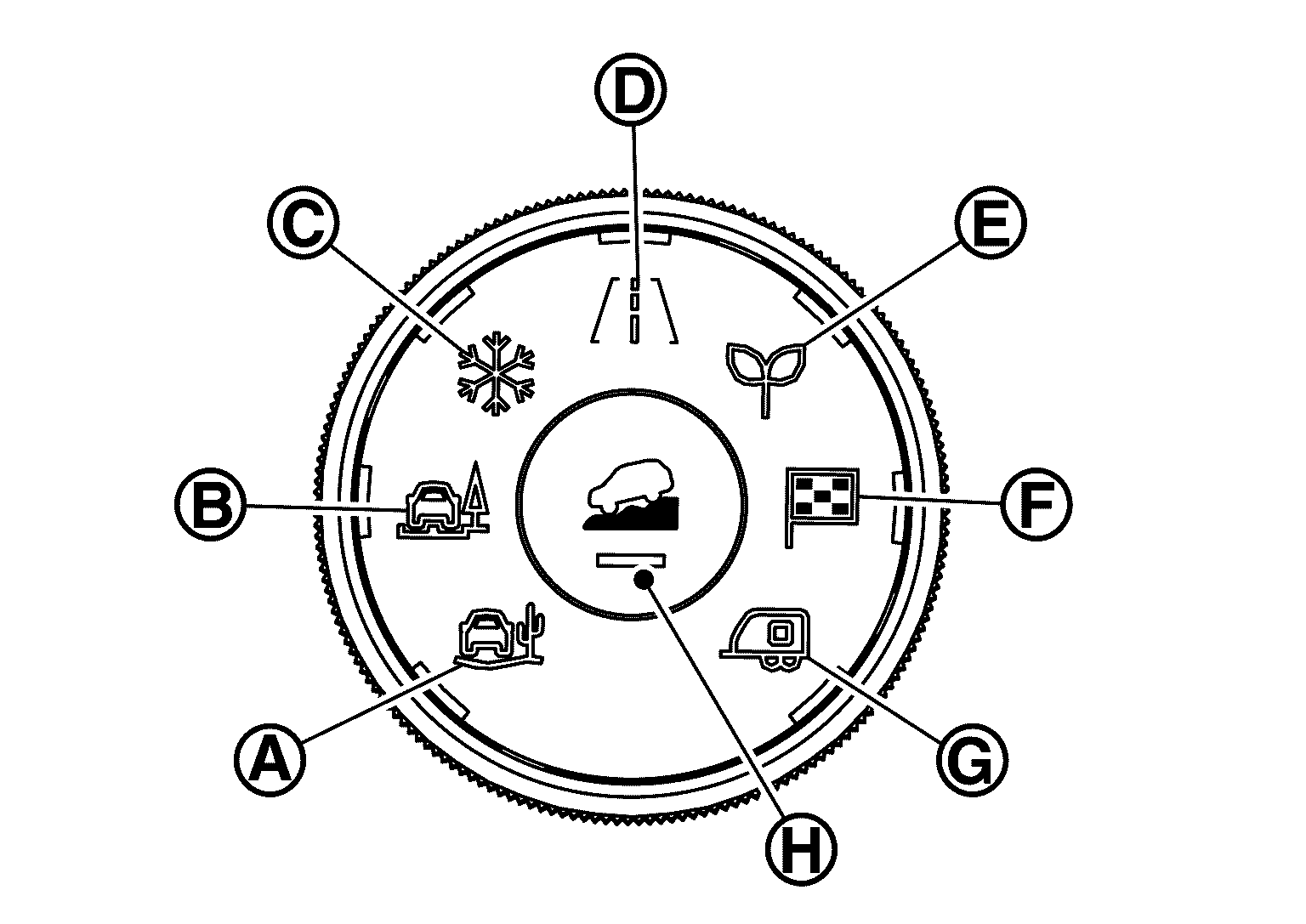

• 4WD models

  Courtesy of NISSAN NORTH AMERICA, INC.

  :	SAND
  :	MUD/RUT
  :	SNOW
  :	AUTO
  :	ECO
  :	SPORT
  :	TOW
  :	hill descent control switch

  NOTE: For systems that can be changed.

  • 2WD Models: Refer to System Description (2WD Models) .
  • 4WD Models: Refer to System Description (4WD Models) .

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Drive mode select switch detected the mode status.

INDIVIDUAL OPERATION

Transmit the drive mode select switch signal to BCM.

COMPONENT LOCATION

Refer to Component Location .
