Exploded View

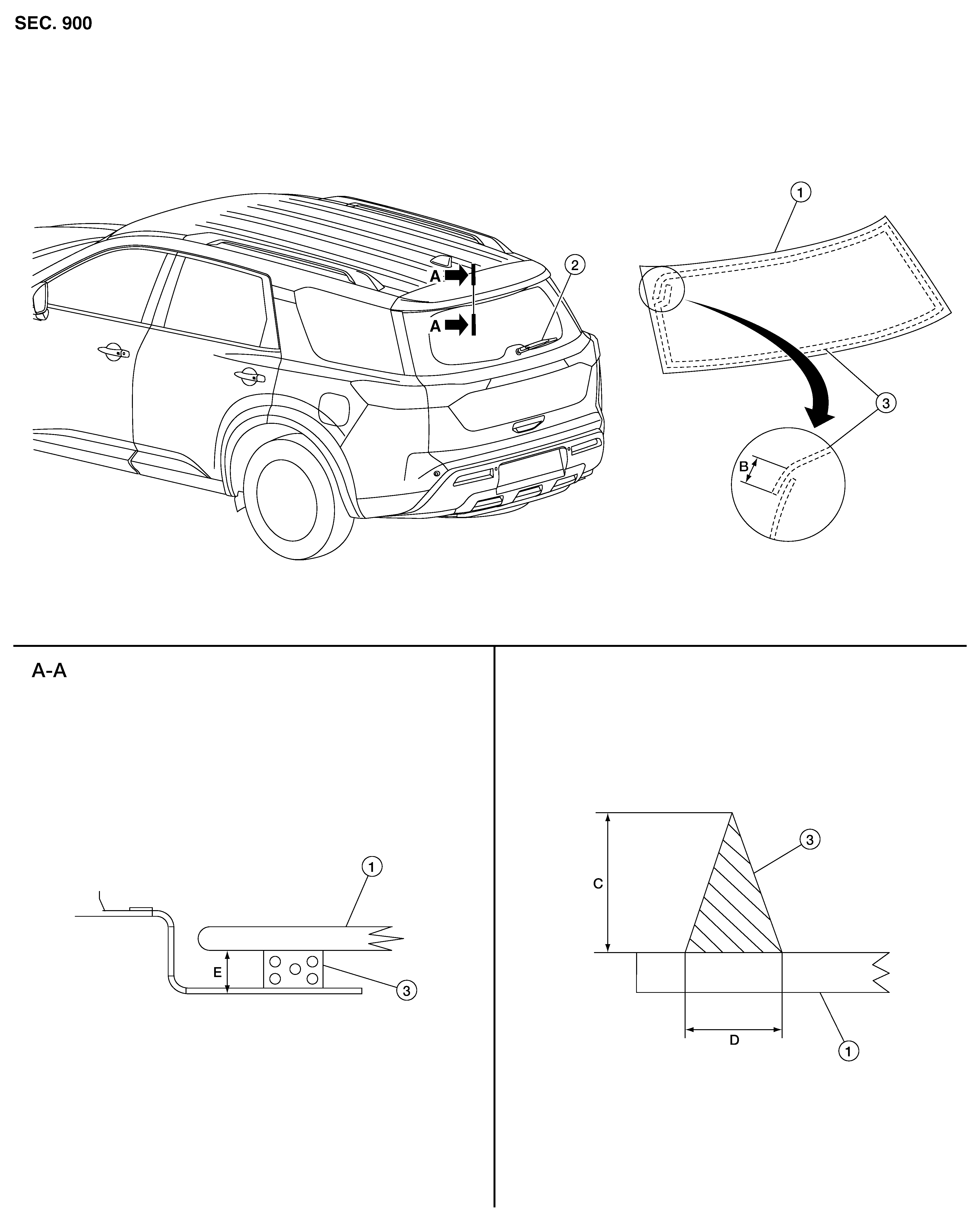

GNSDB137658Courtesy of NISSAN NORTH AMERICA, INC.
1. Back door glass 2. Rear wiper arm 3. Adhesive
B. 30 mm (1.18 in) C. 12 + 2, - 0 mm (0.47 + 0.08, - 0 in) D. 7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
E. 4 + 1.5, - 0.5 mm (0.16 + 0.06, - 0.02 in)
