Exploded View

2WD MODELS

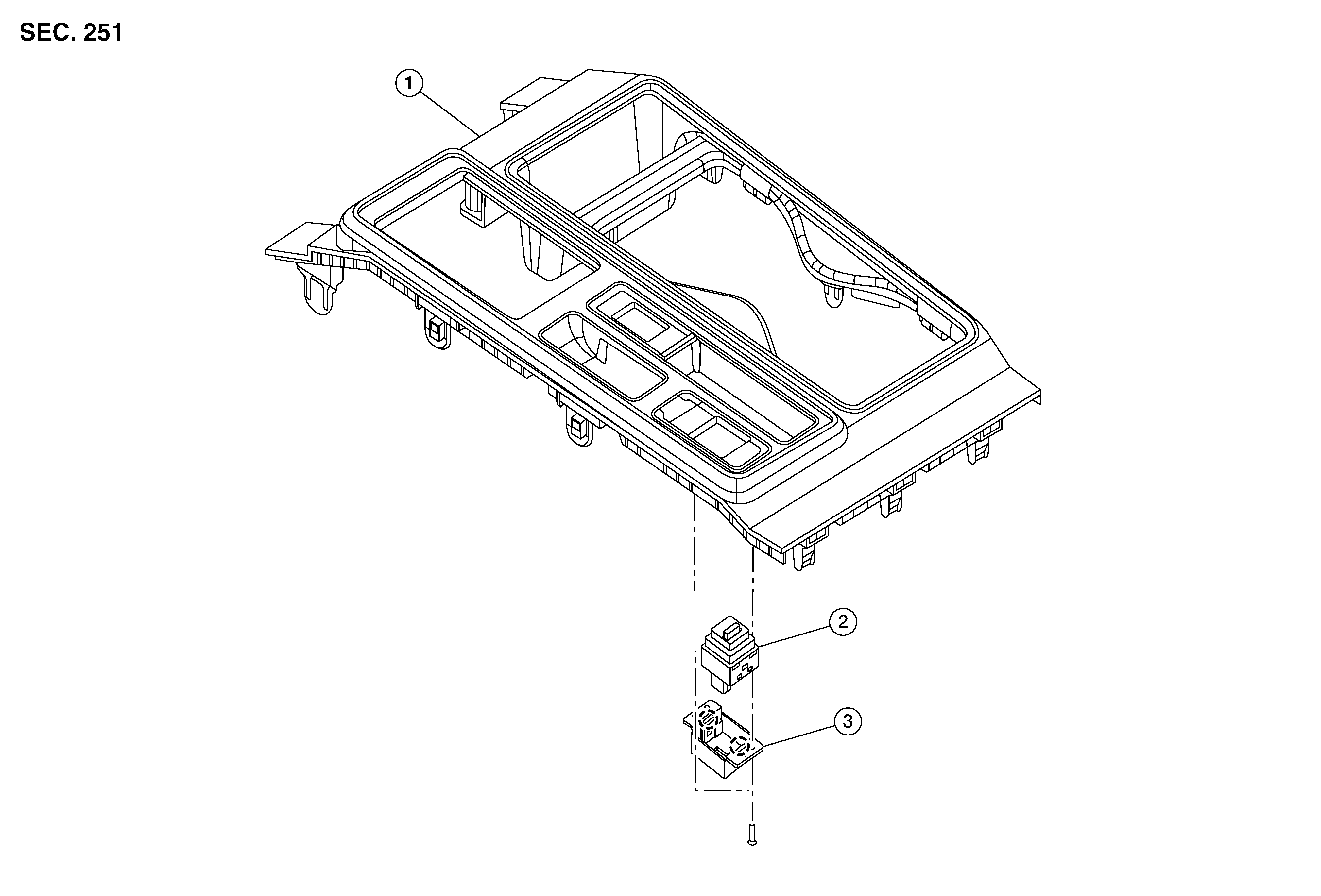

GNSDB136899Courtesy of NISSAN NORTH AMERICA, INC.
1. Shift selector finisher 2. Drive mode switch 3. Drive mode switch bracket SYMBOL Pawl

4WD MODELS

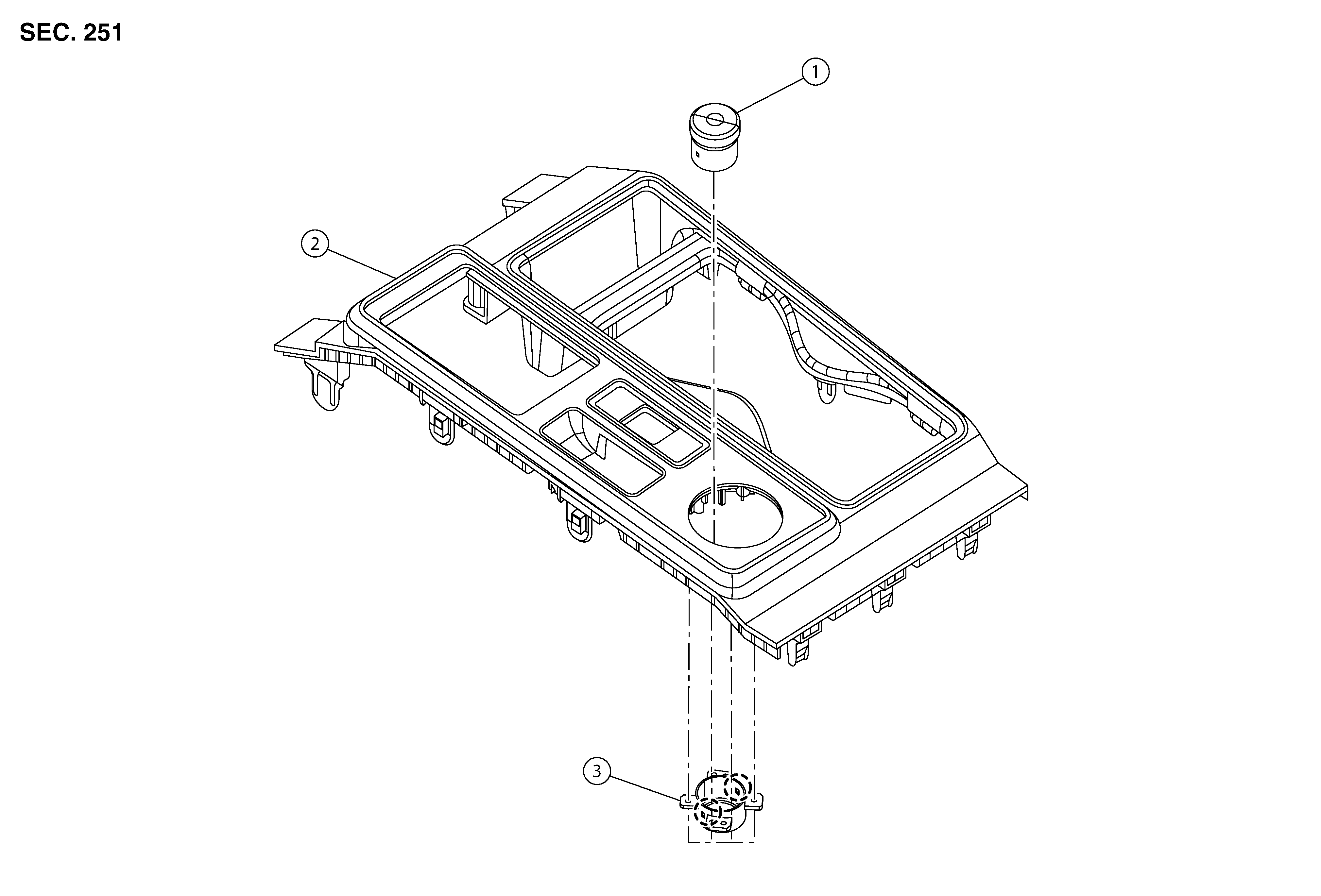

GNSDB136654Courtesy of NISSAN NORTH AMERICA, INC.
1. Drive mode switch 2. Shift selector finisher 3. Drive mode switch bracket SYMBOL Pawl
