Removal and Installation

REMOVAL

1. Remove the rear door cup holder mat. Refer to Exploded View .
2. Remove rear door finisher. Refer to Removal and Installation .
3. Disconnect the harness connector from the rear power window switch.

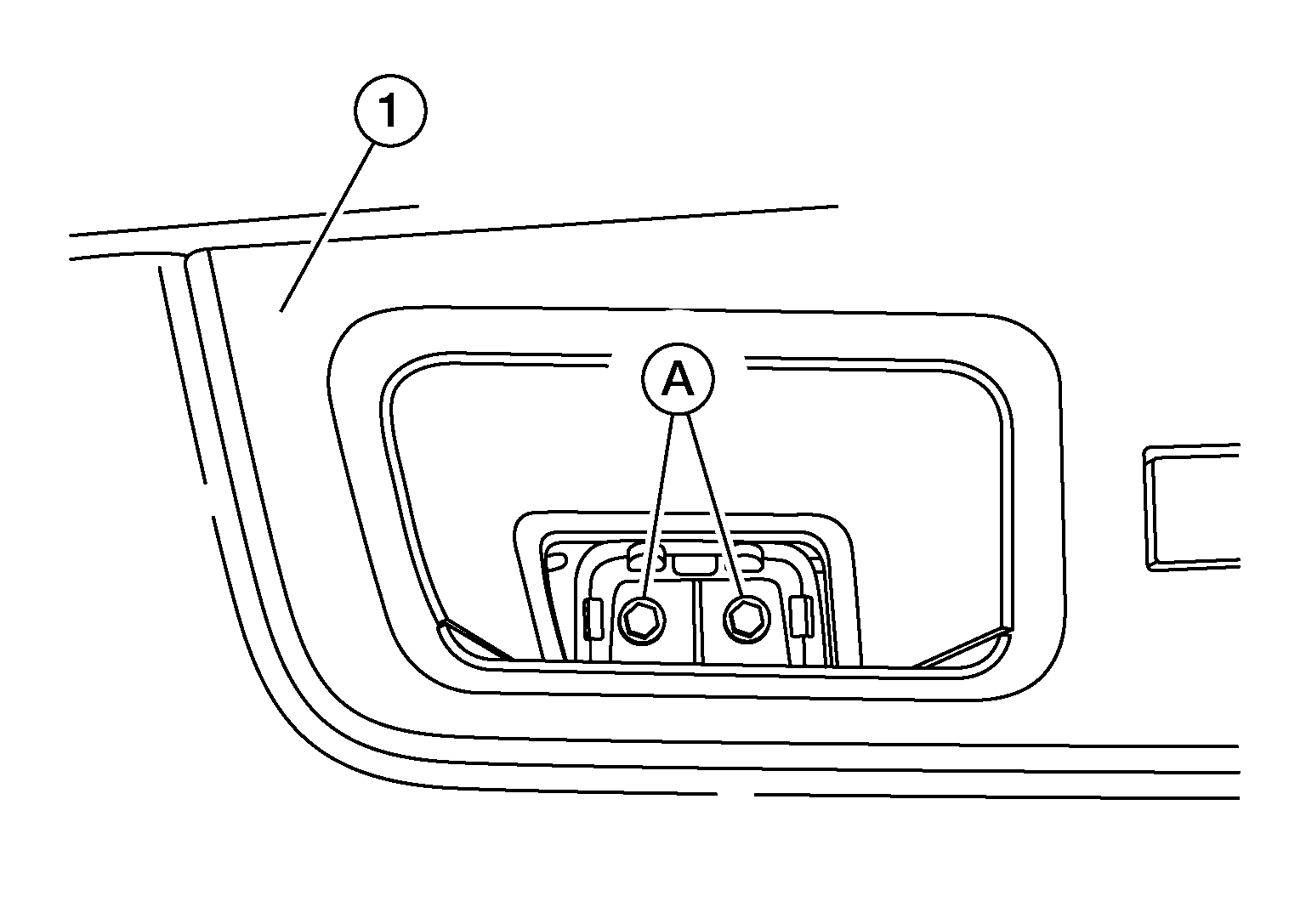

4. Remove the rear power window switch finisher screws (A) and the rear power window switch finisher (1) from the rear door finisher using a suitable tool.

   Courtesy of NISSAN NORTH AMERICA, INC.

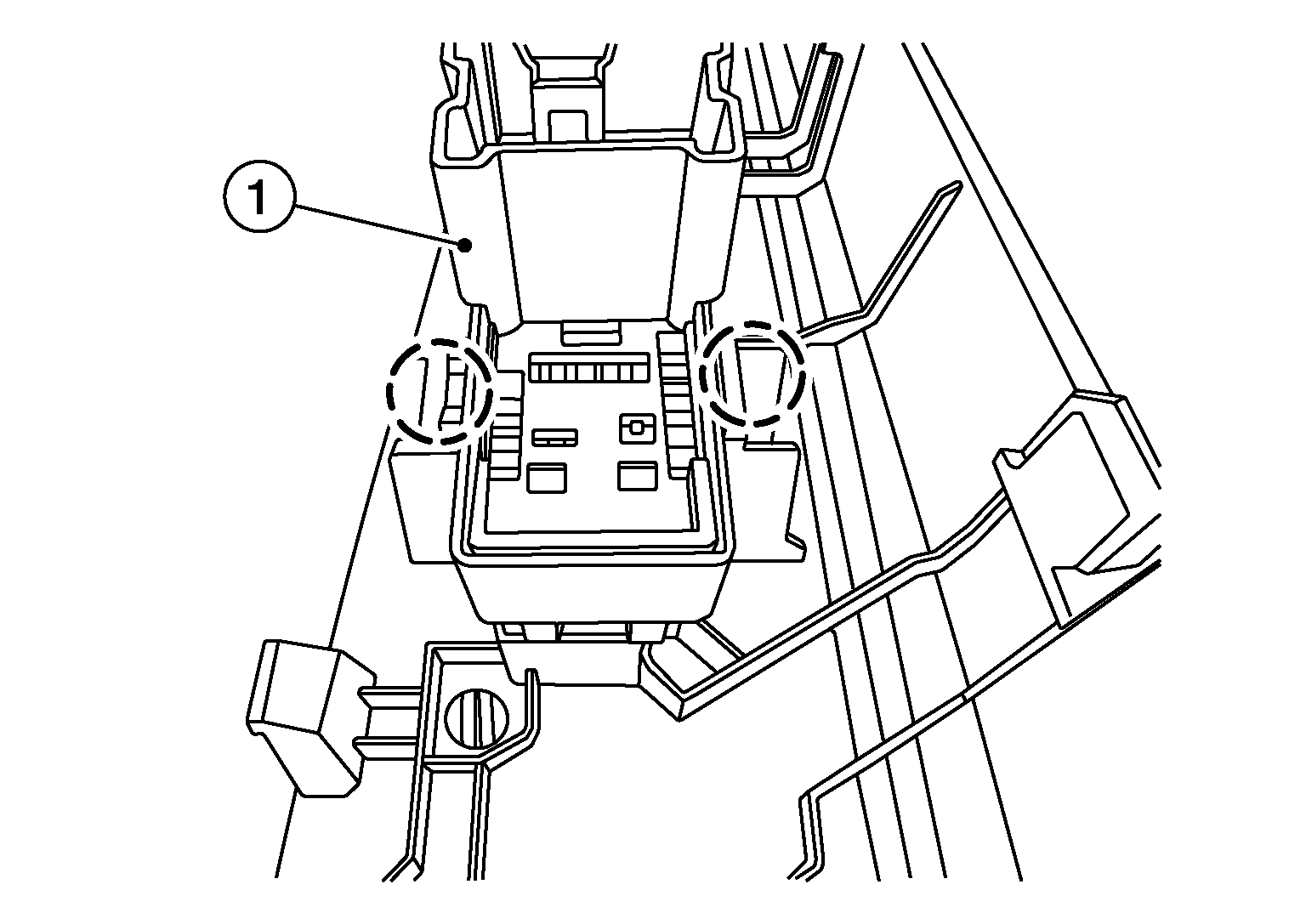

5. Using suitable tool, release pawls, then separate the rear power window switch (1) from the switch finisher.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
