Component Location

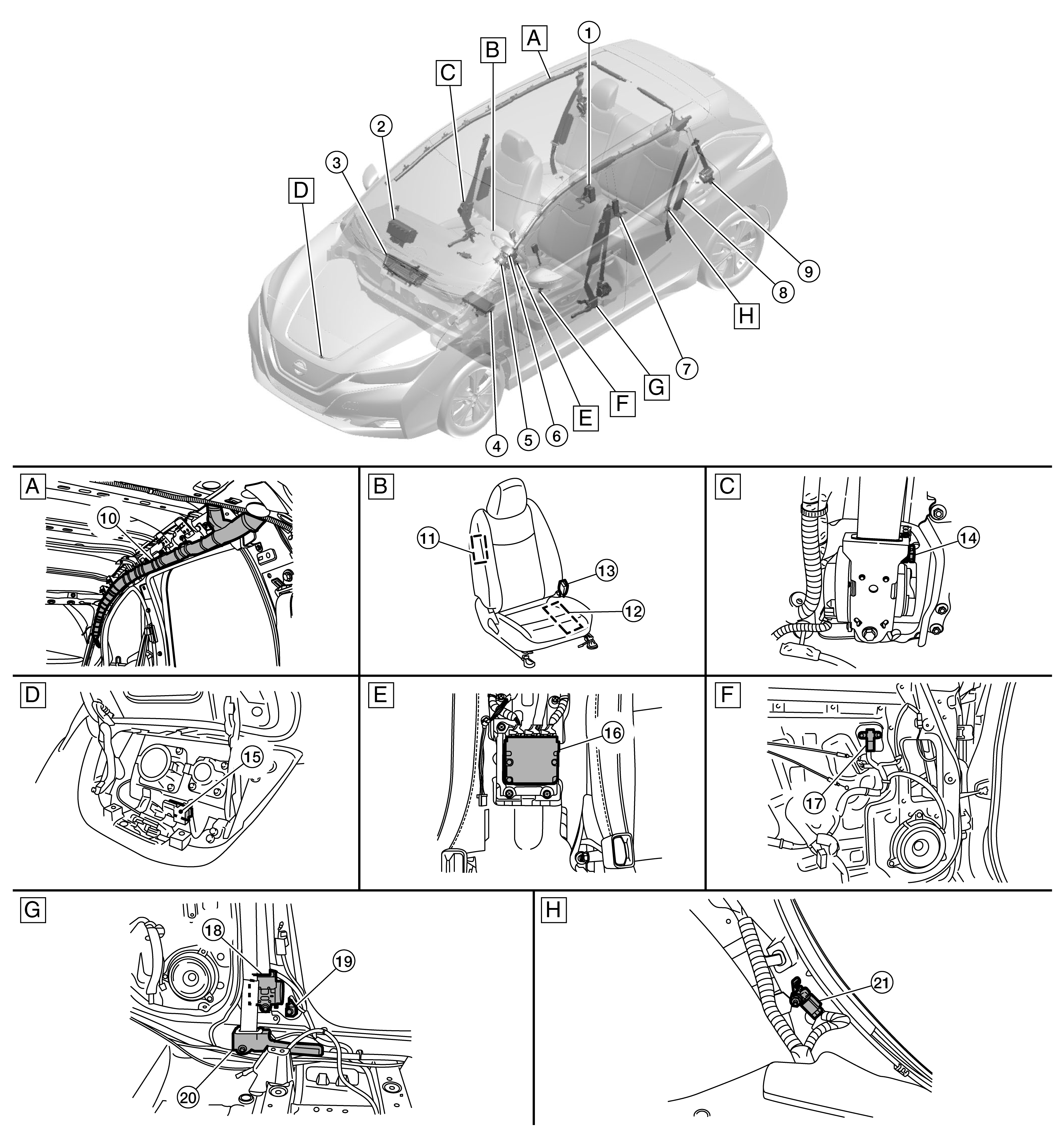

GNSDB141772Courtesy of NISSAN NORTH AMERICA, INC.
A. View with headliner assembly removed B. Passenger seat C. Behind center pillar lower garnish
D. View with charge port lid open E. View with center console assembly removed F. View with door finisher removed
G. Behind center pillar lower garnish H. Behind lower garnish
No. Component Function
1. Rear seat belt buckle switch RH and CTR Controls deployment timing depending on the seat belt condition that is fastened or unfastened. It is installed in the seat belt buckle.
2. Front passenger air bag module Refer to Component Description .
3. Right knee air bag module Refer to Component Description .
4. Left knee air bag module Refer to Component Description .
5. Combination switch (spiral cable) Refer to Component Description .
6. Driver air bag module Refer to Component Description .
7. Rear seat belt buckle switch LH Controls deployment timing depending on the seat belt condition that is fastened or unfastened. It is installed in the seat belt buckle.
8. Rear LH side air bag module (RH similar) Refer to Component Description .
9. Rear LH seat belt pre-tensioner (shoulder belt) (RH similar) Refer to Component Description .
10. RH side curtain air bag module (LH similar) Refer to Component Description .
11. Front RH side air bag module (LH similar) Refer to Component Description .
12. Occupant classification system control unit Transmits the passenger seat status (occupied or empty) to air bag diagnosis sensor unit. It is installed in the passenger seat cushion. Refer to System Description .
13. Front seat belt buckle switch RH (LH similar) Controls deployment timing depending on the seat belt condition that is fastened or unfastened. It is installed in the seat belt buckle.
14. Front RH seat belt pre-tensioner (shoulder belt) Refer to Component Description .
15. Crash zone sensor Refer to Component Description .
16. Air bag diagnosis sensor unit Refer to Component Description .
17. Front door satellite sensor LH (RH similar) Refer to Component Description .
18. Front LH seat belt pre-tensioner (shoulder belt) Refer to Component Description .
19. Front side air bag satellite sensor LH (RH similar) Refer to Component Description .
20. Front LH seat belt pre-tensioner (lap belt) (RH similar) Refer to Component Description .
21. Rear side air bag satellite sensor LH (RH similar) Refer to Component Description .
