System Description

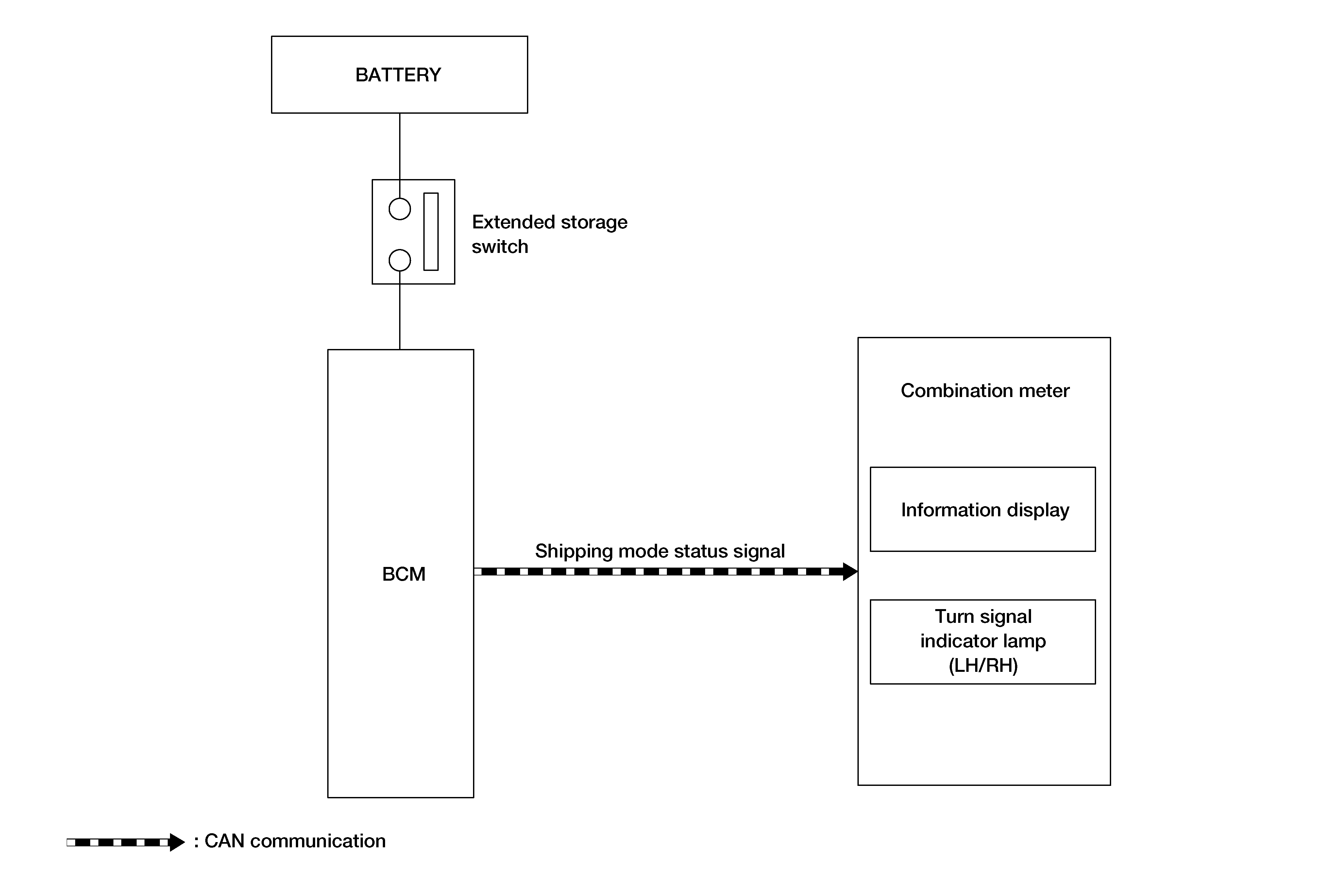

SYSTEM DIAGRAM
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Shipping mode status signal | BCM | Combination meter (CAN) | Transmits the shipping mode status signal via CAN communication. |
DESCRIPTION
- The BCM switches the status (shipping mode or normal mode) by itself according to the extended storage switch condition, and transmits the shipping mode status signal to the combination meter and each unit via CAN communication.
- When the shipping mode function is activated, the control units will not detect DTCs.
- BCM control functions are limited in shipping mode. Refer to Description .
- When the BCM is in shipping mode, a message may be shown in the combination meter or display.
- For shipping mode cancel operation, refer to Work Procedure .
