Ignition Timing: Inspection

CHECK IGNITION TIMING

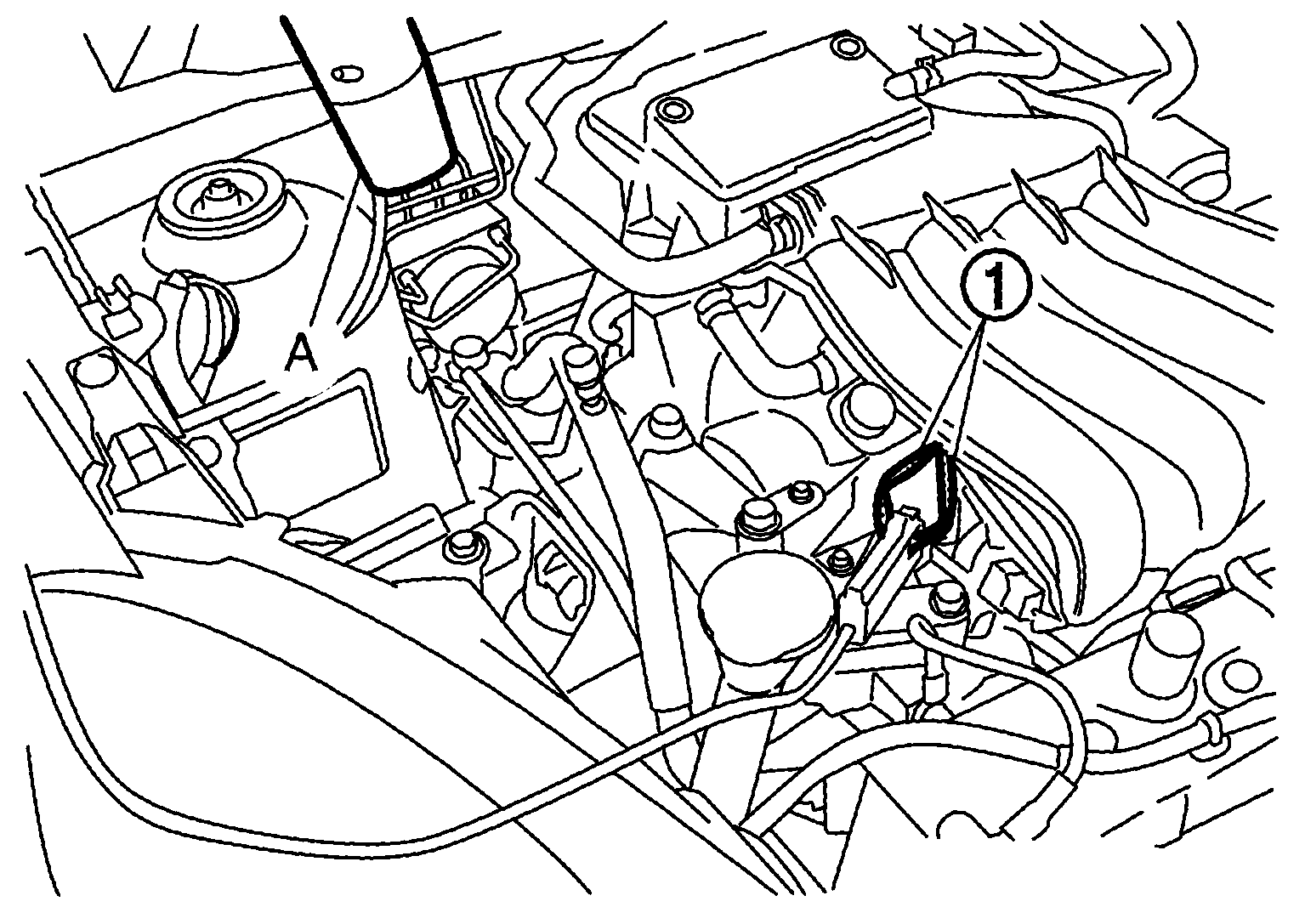

1. Attach timing light (A) to loop wire (1) as shown, below.

   Courtesy of NISSAN NORTH AMERICA, INC.

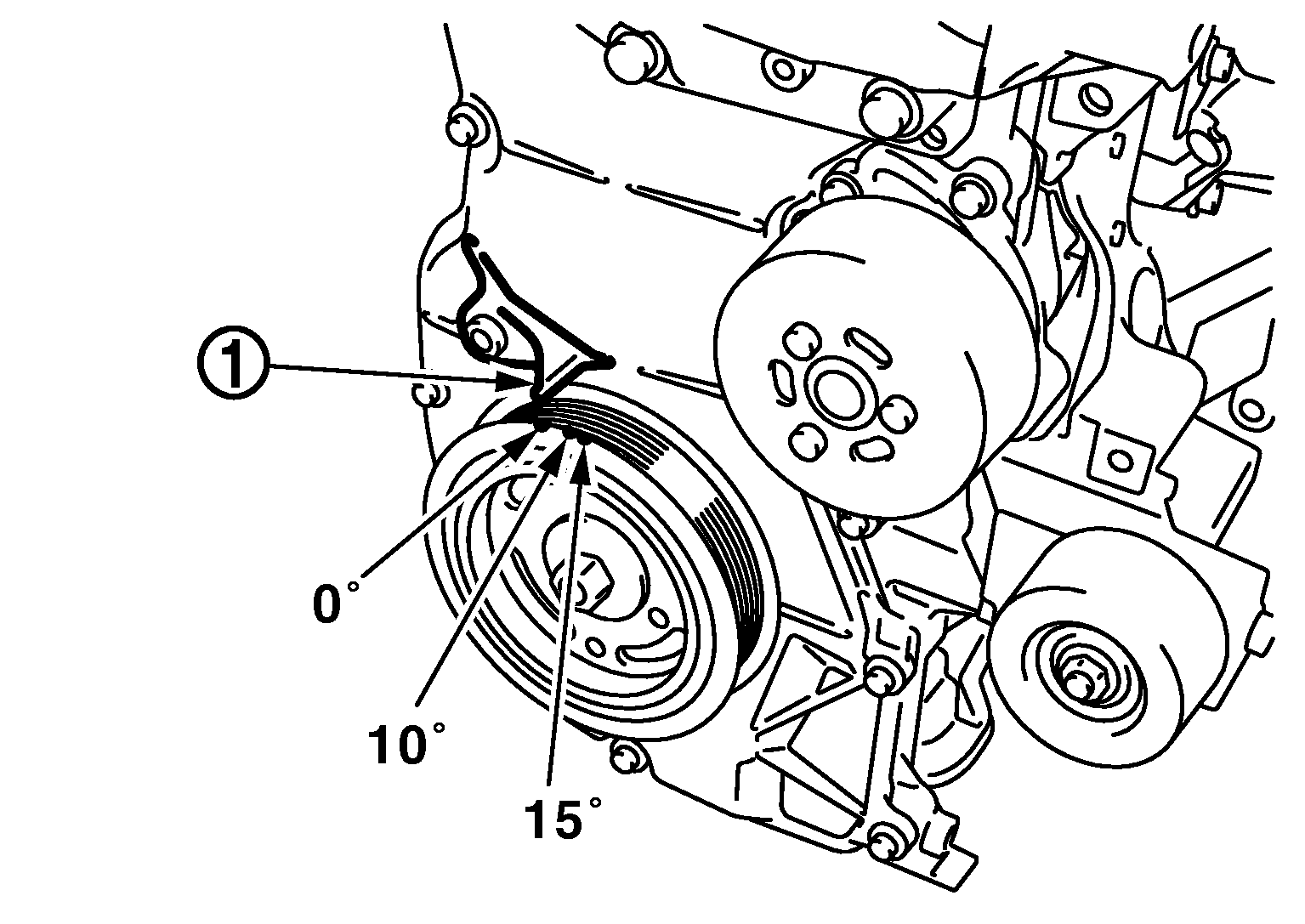

2. Check ignition timing.

   Courtesy of NISSAN NORTH AMERICA, INC.

   1	: Timing indicator
