Exploded View

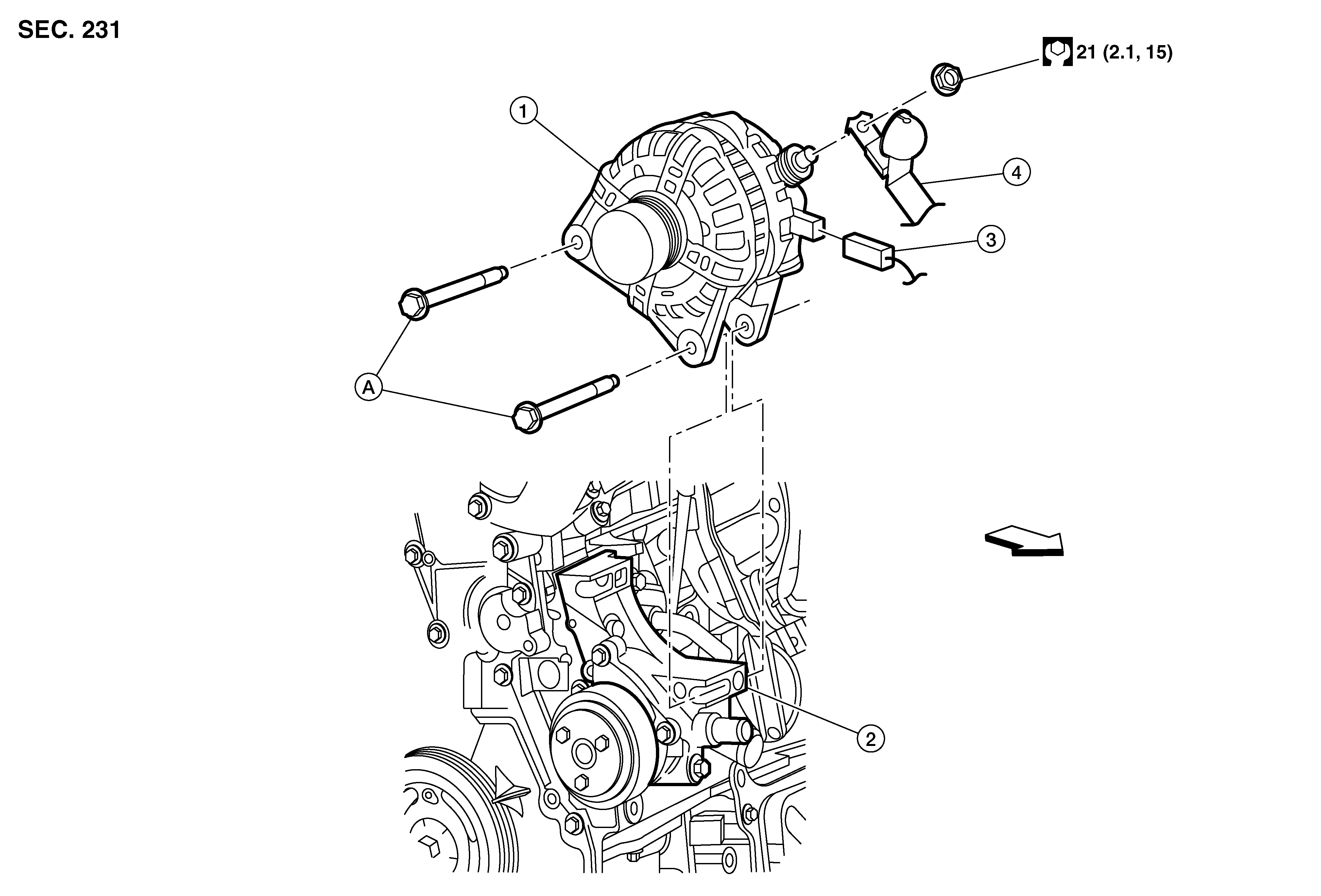

Fig 1: Generator With Torque Specifications
GNSDB109233SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
1. Generator 2. Water pump housing 3. Harness connector
4. "B" terminal harness A. Refer to Removal and Installation . SYMBOL Front
