Removal and Installation

REMOVAL

  1. Remove cluster lid C. Refer to Removal and Installation .

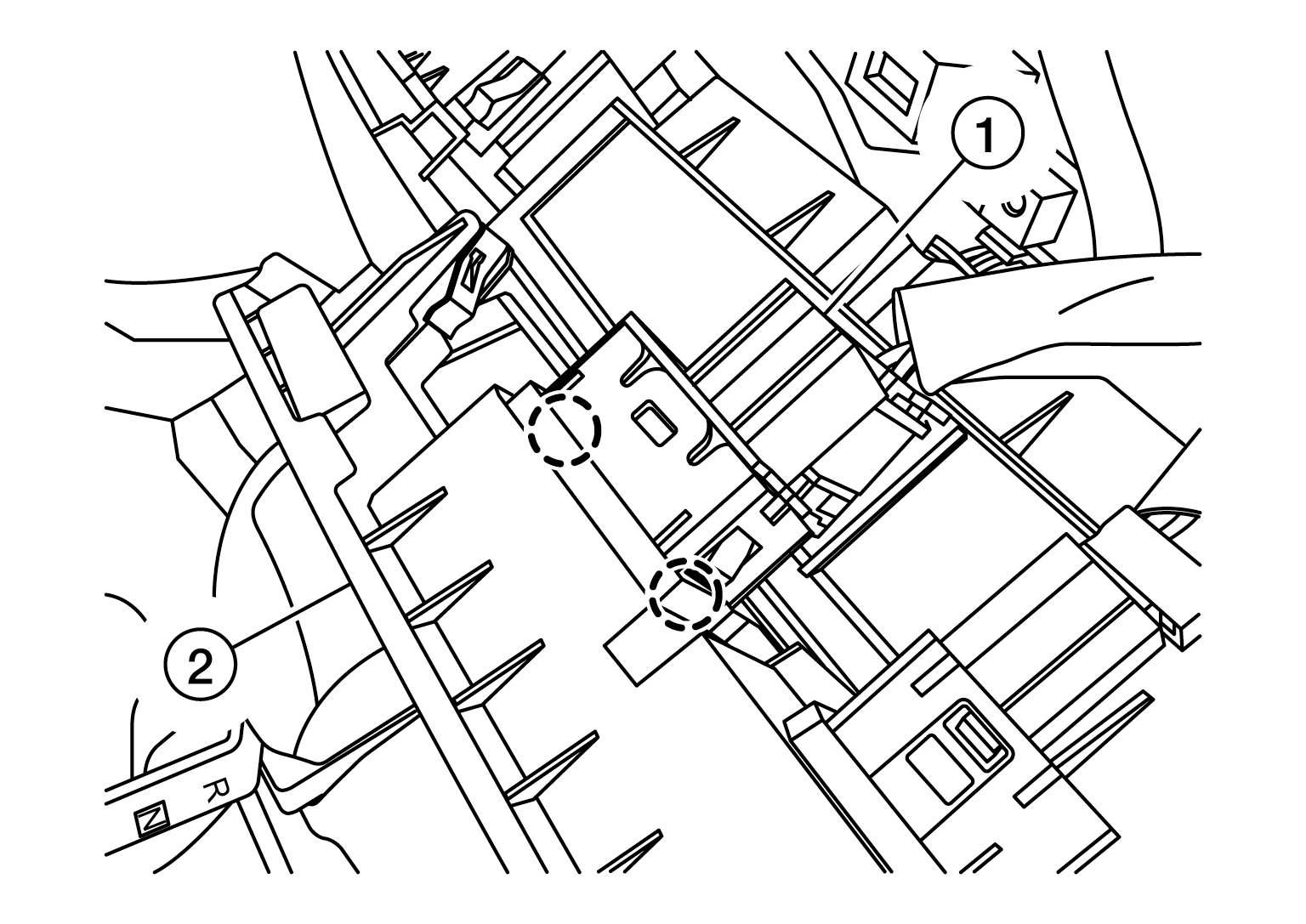

  2. Release pawls and remove stop/start off switch (1) from cluster lid C (2).
    GNSDB136217Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.
