Exploded View

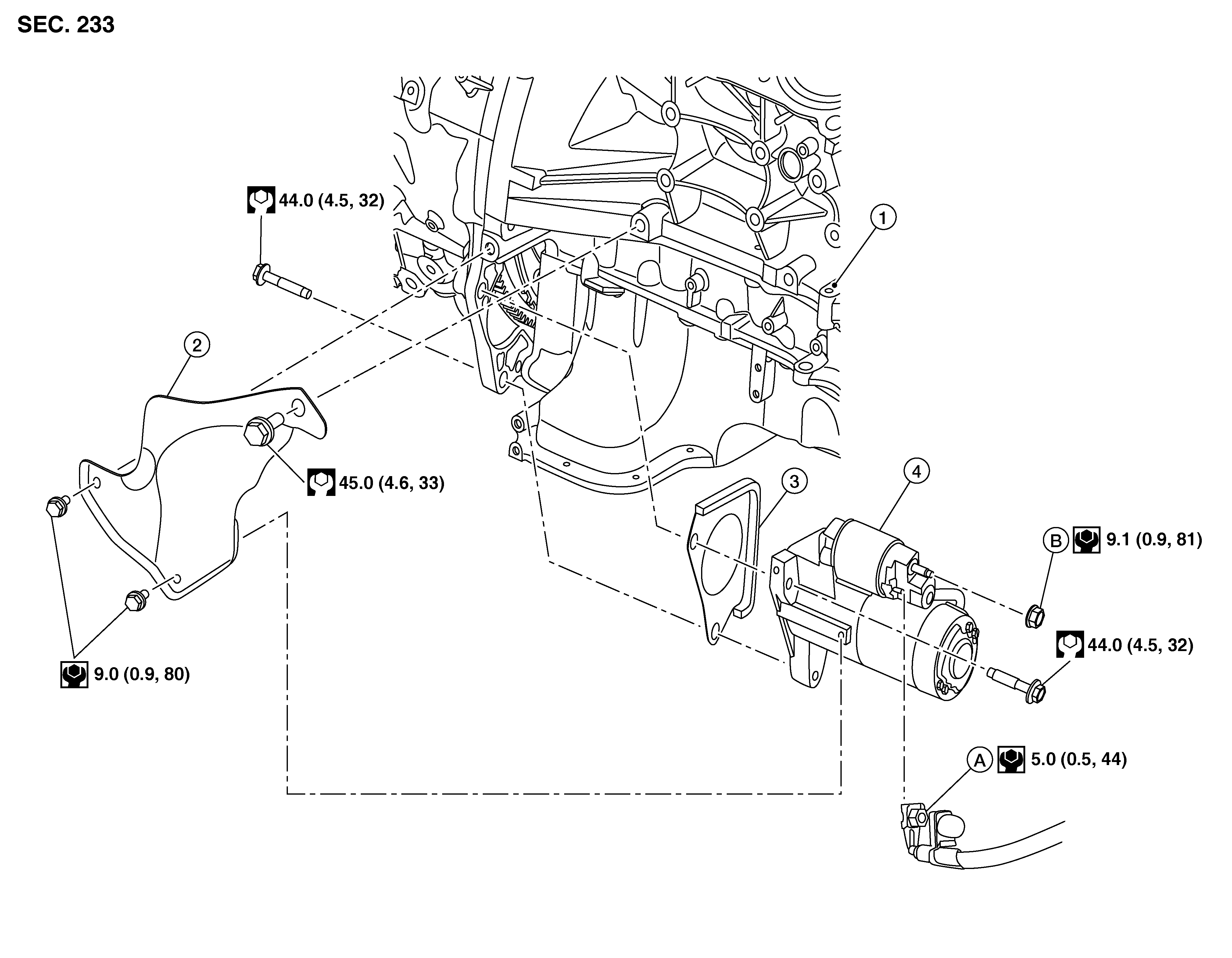

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cylinder block	2.	Starter motor cover	3.	Starter cover plate (rear)
4.	Starter motor	A.	"S" terminal nut	B.	"B" terminal nut
