Component Location

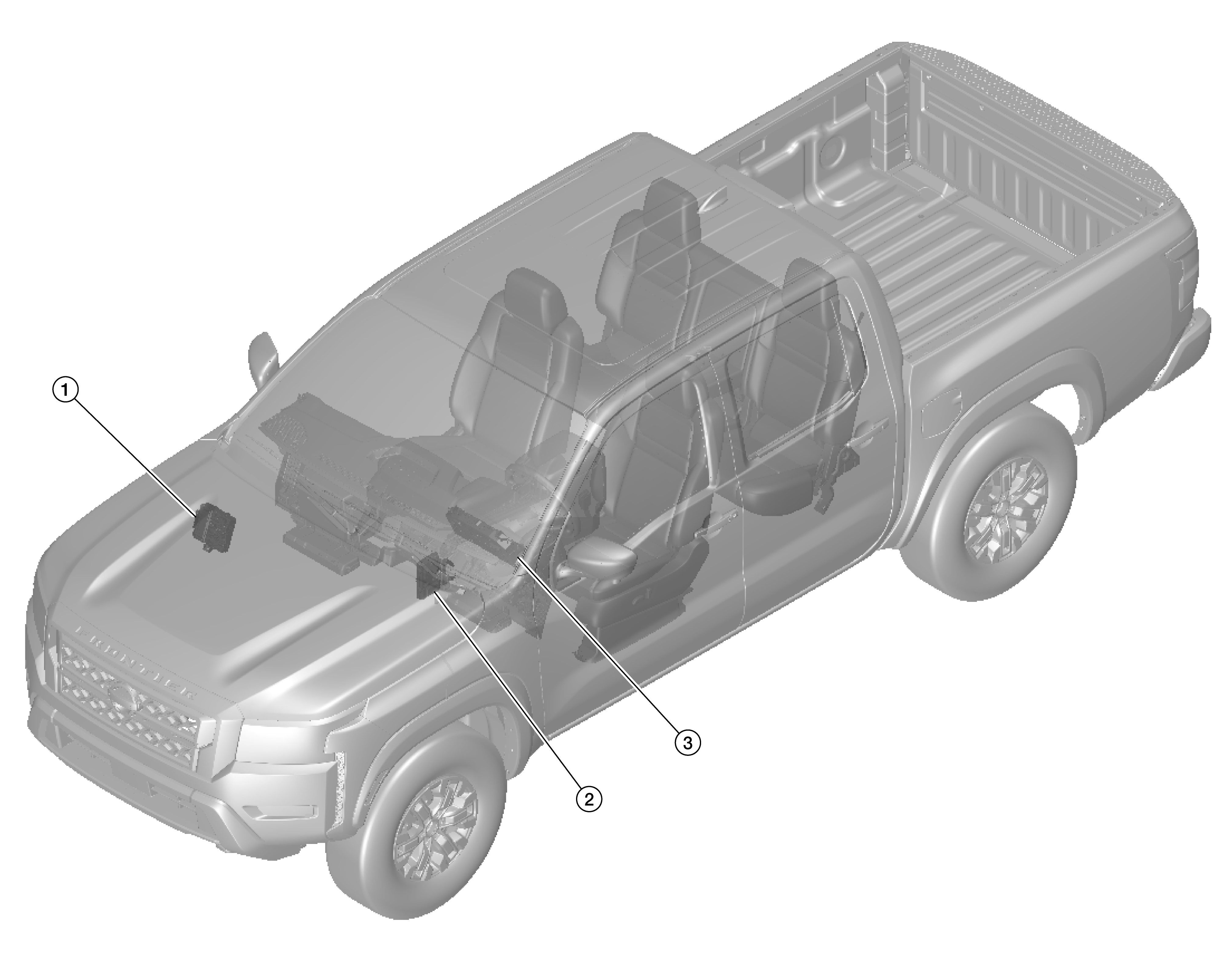

GNSDB135402Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: SYMBOL Crew cab shown (King cab similar)
No. Component Function
1. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description .
2. BCM (Body Control Module)
  • BCM incorporates a power consumption control function that reduces the power consumption.
  • BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep request to each unit (IPDM E/R and combination meter) that operates with the ignition switch OFF.
Refer to System Description .
3. Combination meter Refer to Combination Meter for detailed component location.
