Removal and Installation

REMOVAL

CAUTION:

If replacing BCM, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) ". Refer to Description .

  1. Disconnect the battery negative terminal. Refer to Battery Disconnect .
  2. Remove the instrument lower panel LH. Refer to Removal and Installation .

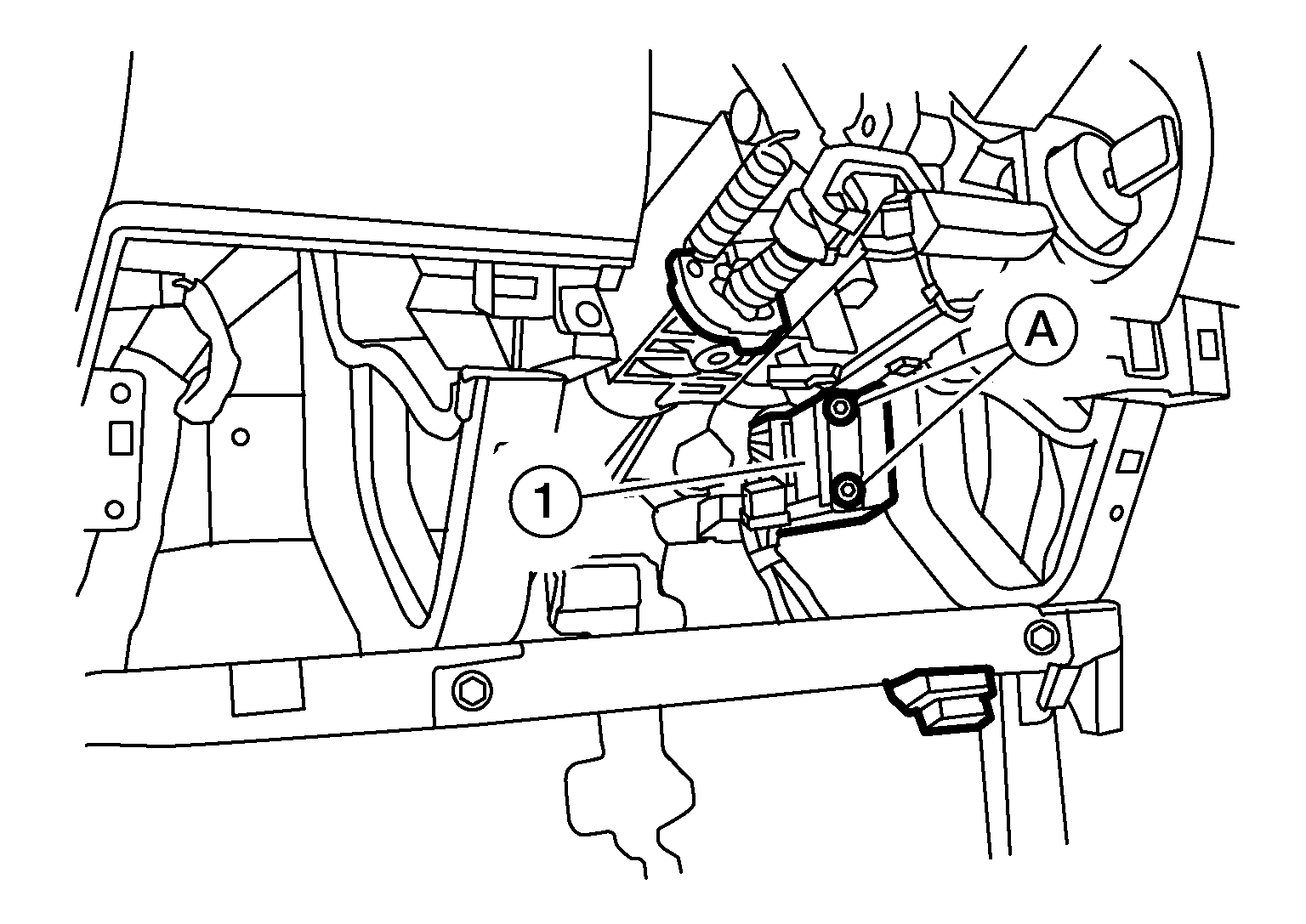

  3. Remove the screws (A).
    GNSDB134813Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from BCM and remove the BCM (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing BCM, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) ". Refer to Description .
