Exploded View

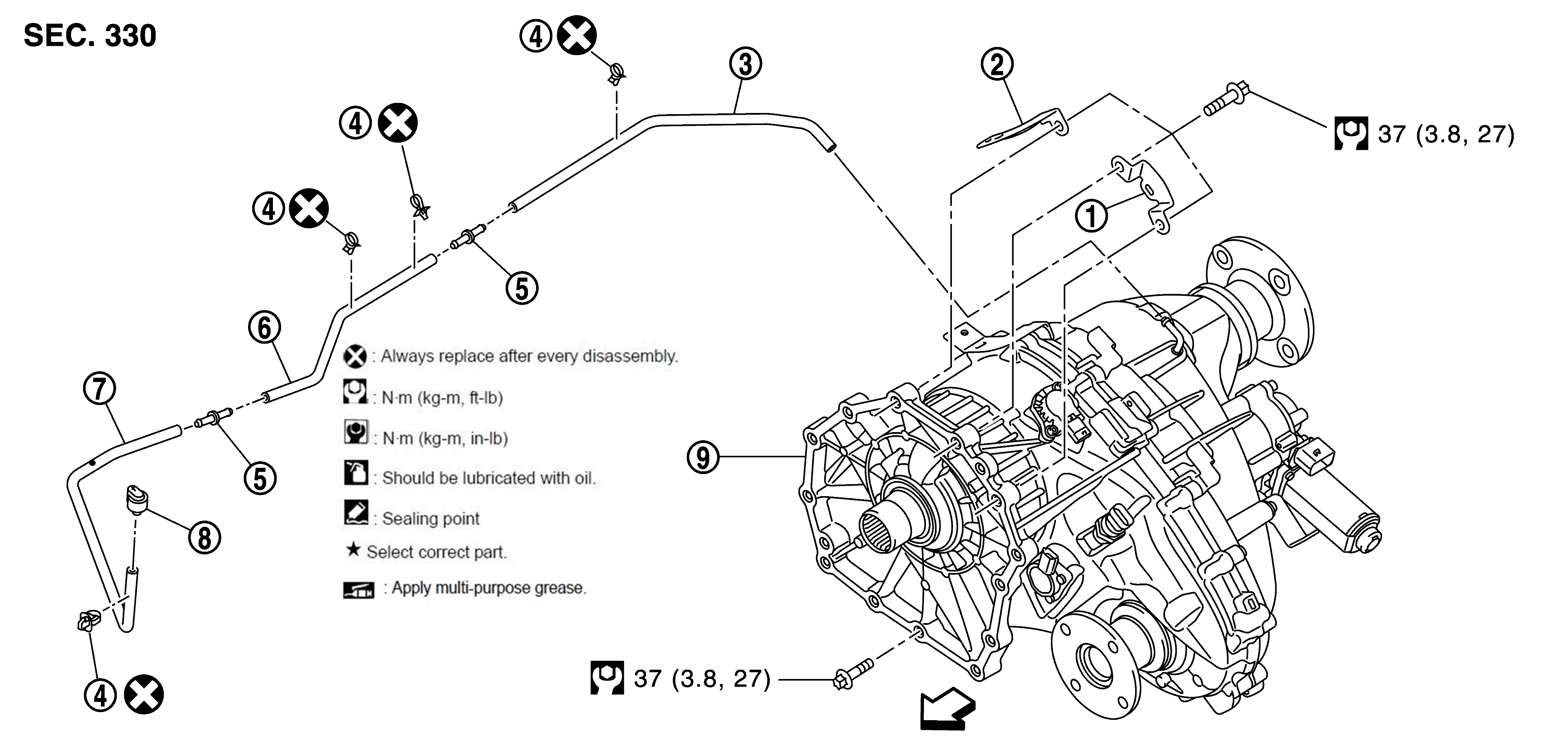

Fig 1: Transfer Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Bracket	3.	Breather hose
4.	Hose clip	5.	Hose connector	6.	Breather hose
7.	Breather hose	8.	Breather	9.	Transfer assembly
: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
