Exploded View

REMOVAL

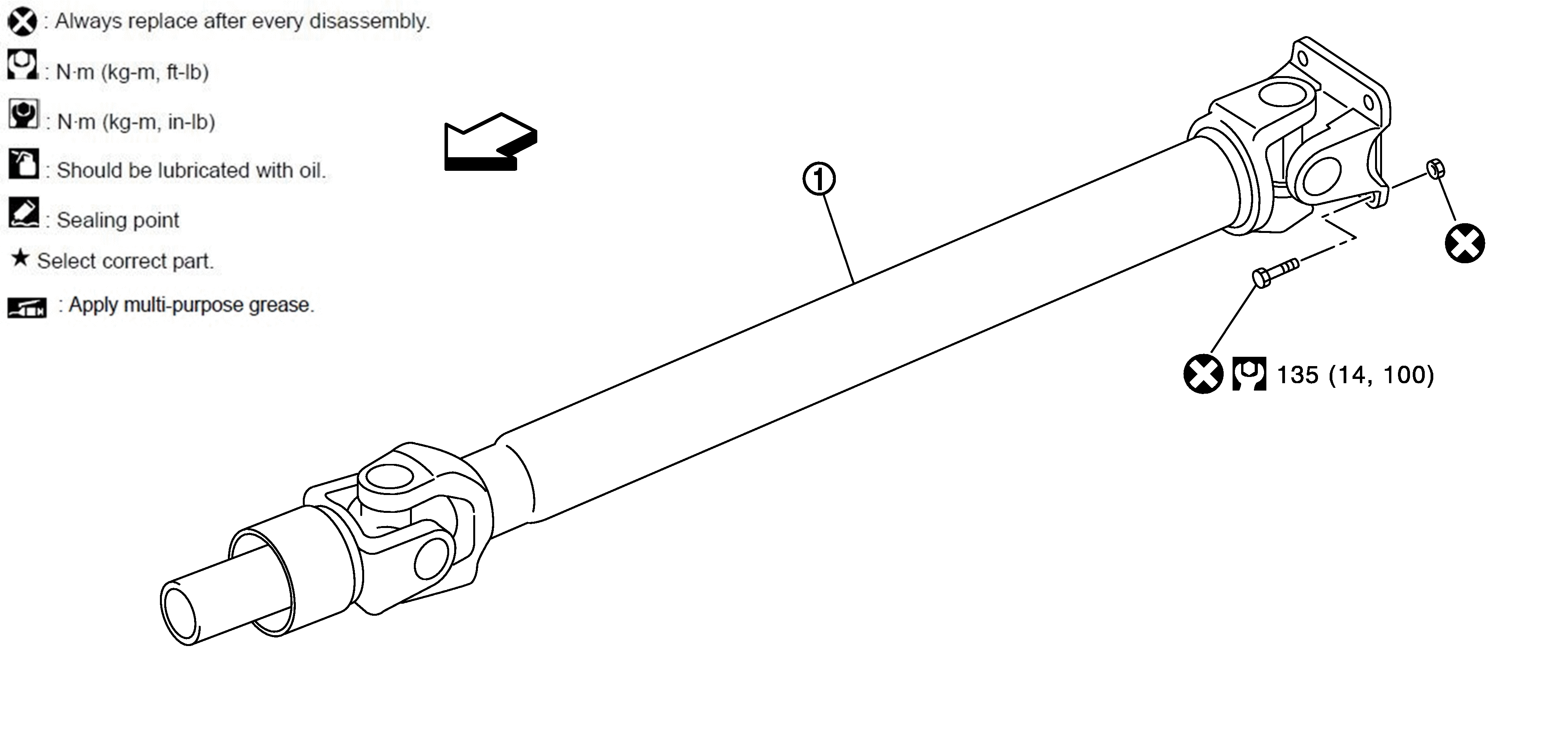

Fig 1: Rear Propeller Shaft With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft assembly

: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)

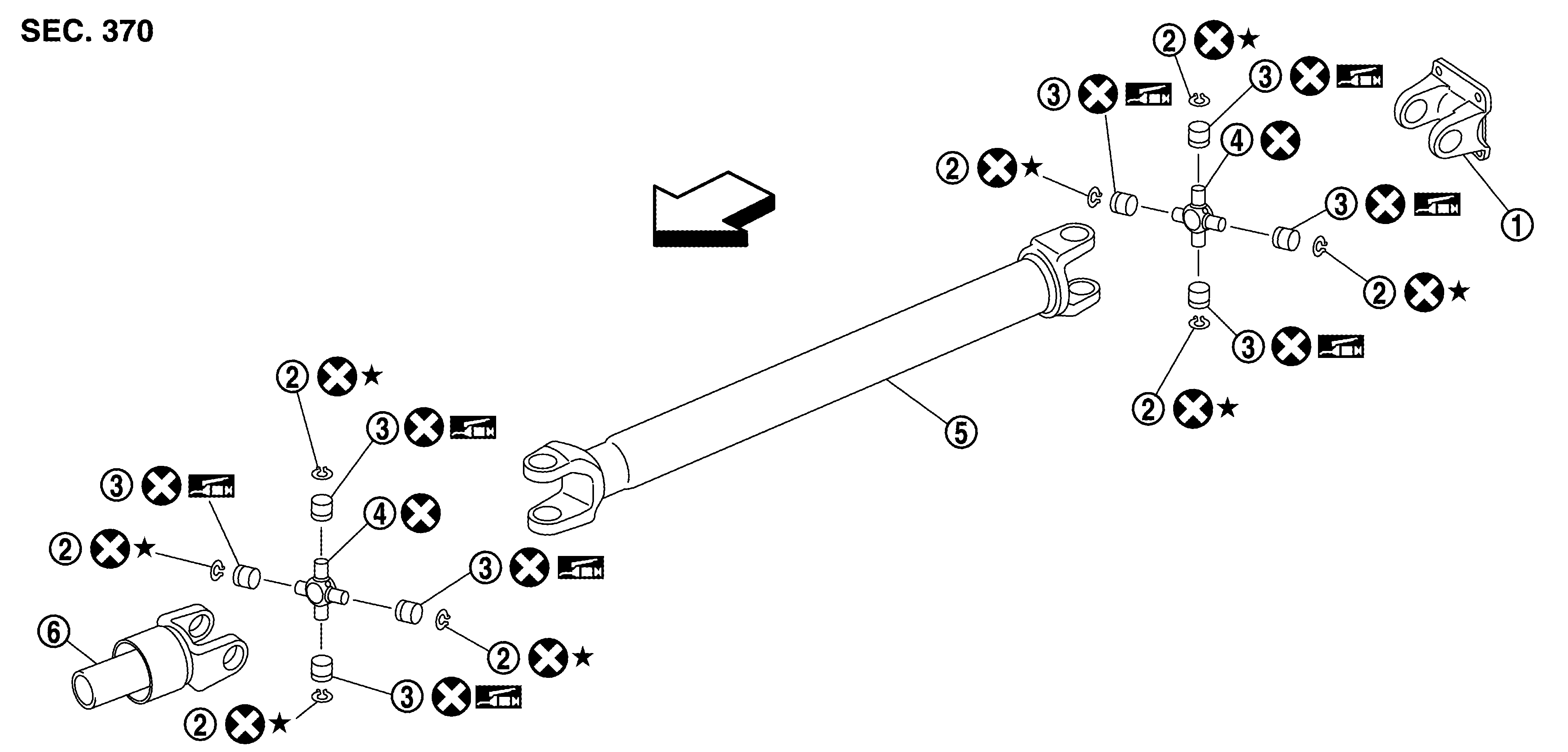

DISASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Flange yoke	2.	Snap ring	3.	Bearing
4.	Journal	5.	Propeller shaft	6.	Sleeve yoke

: Vehicle front
	: Always replace after every disassembly.
	: Apply multi-purpose grease.
	: Select with proper thickness.

REMOVAL

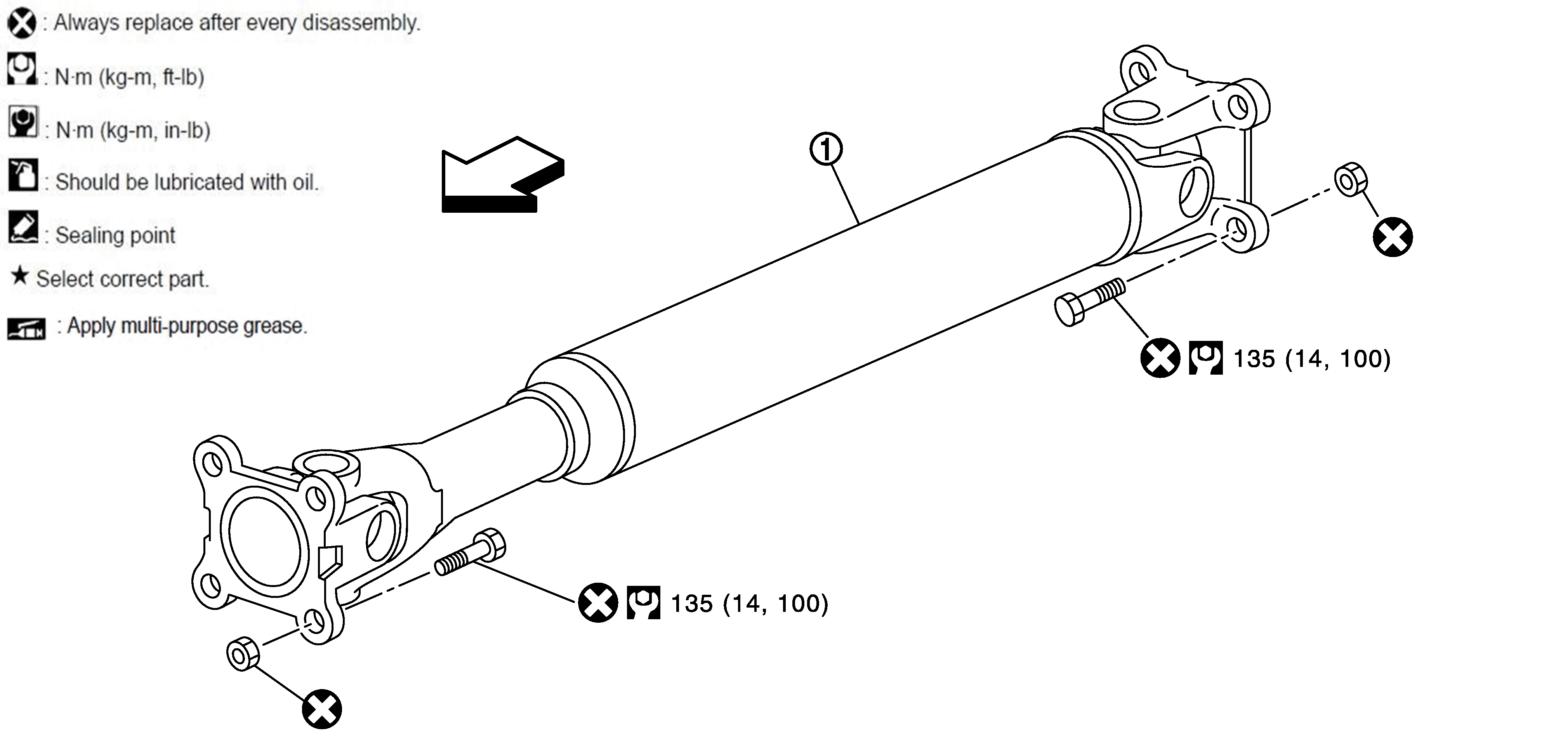

Fig 1: Rear Propeller Shaft Assembly With Torque Specifications (4WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft assembly

: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)

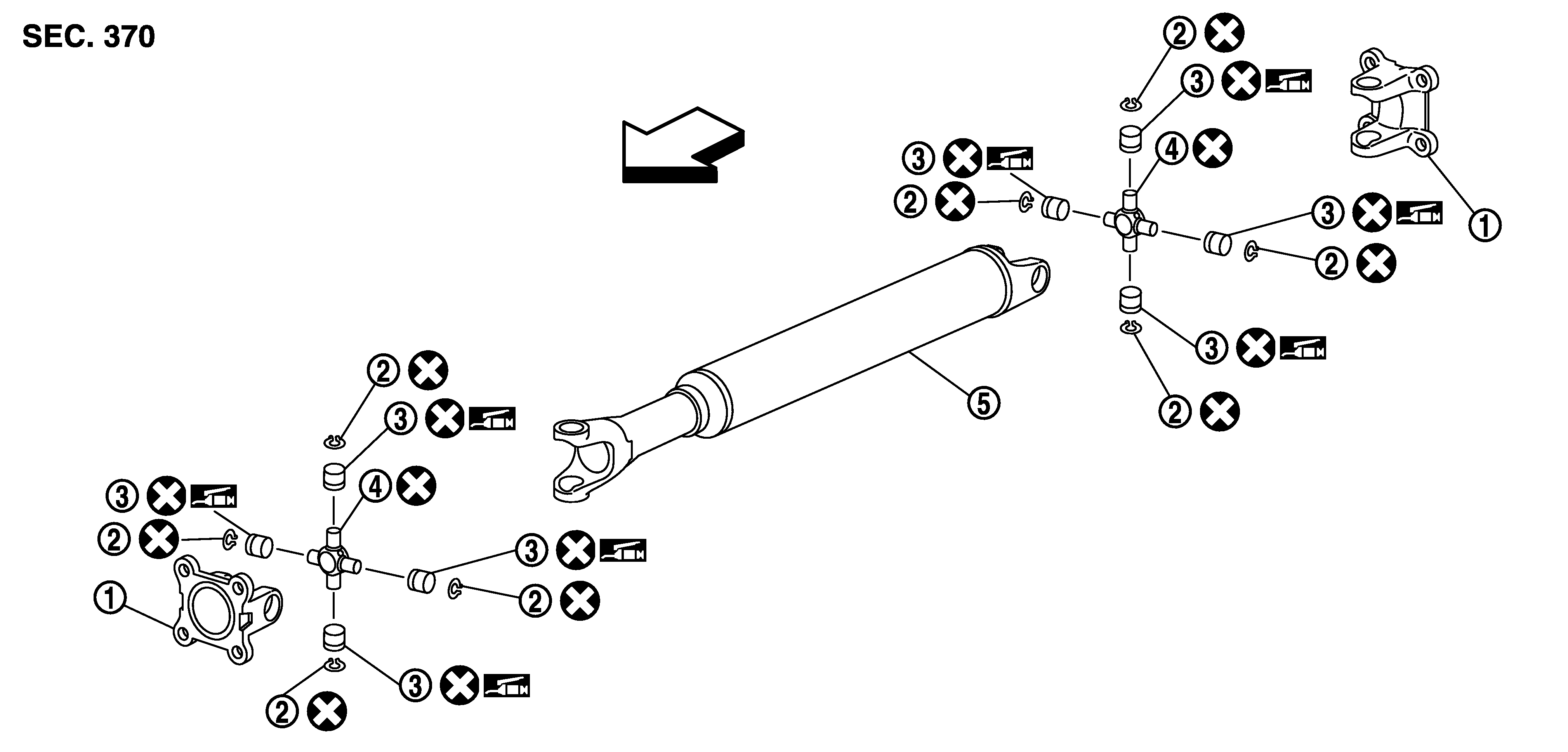

DISASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front
	: Always replace after every disassembly.
	: Apply multi-purpose grease.
